Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 6 illustrations

Illustrations

Figure 113593B 113593B 2005-02 → 2012-02 Figure 117495A 117495A 2012-02 → — Figure 113677A 113677A 2005-05 → — Figure 113678A 113678A 2005-05 → — Figure 113679B 113679B 2005-05 → — Figure 113680B 113680B 2005-05 → —

Part groups

PNCDescription

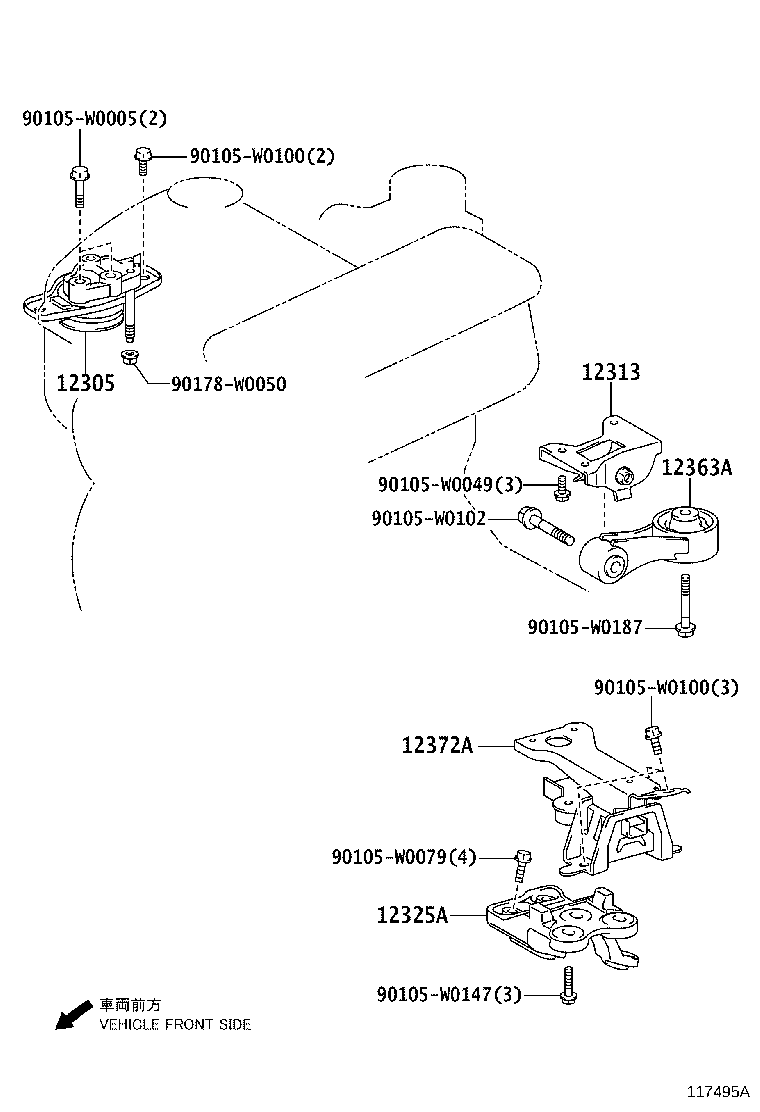

12305 Insulator Sub-assy, Engine Mounting, RH
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)

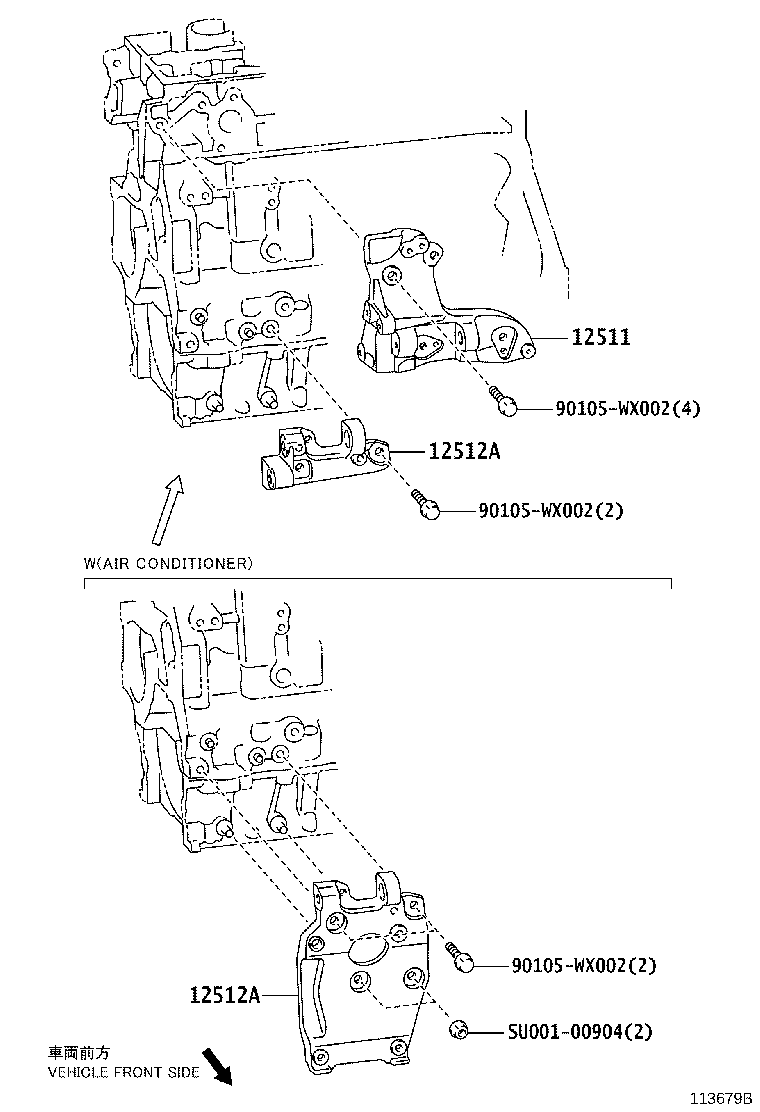

12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2

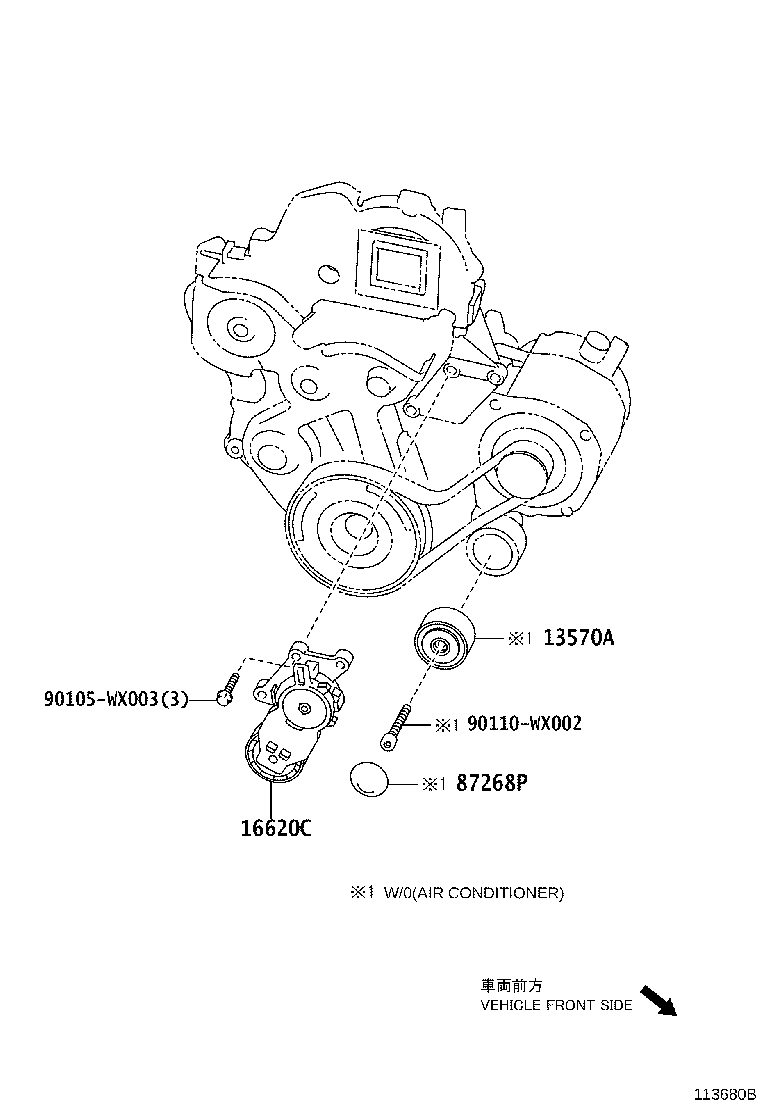

13570A Idler Assy, V-ribbed, NO.1
16620C Tensioner Assy, V-ribbed Belt
87268P Protector, V-ribbed Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
