Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

6 part groups · 3 illustrations

Illustrations

Figure 150945B

150945B 2005-02 → 2013-07

Figure 152081A

152081A 2013-07 → —

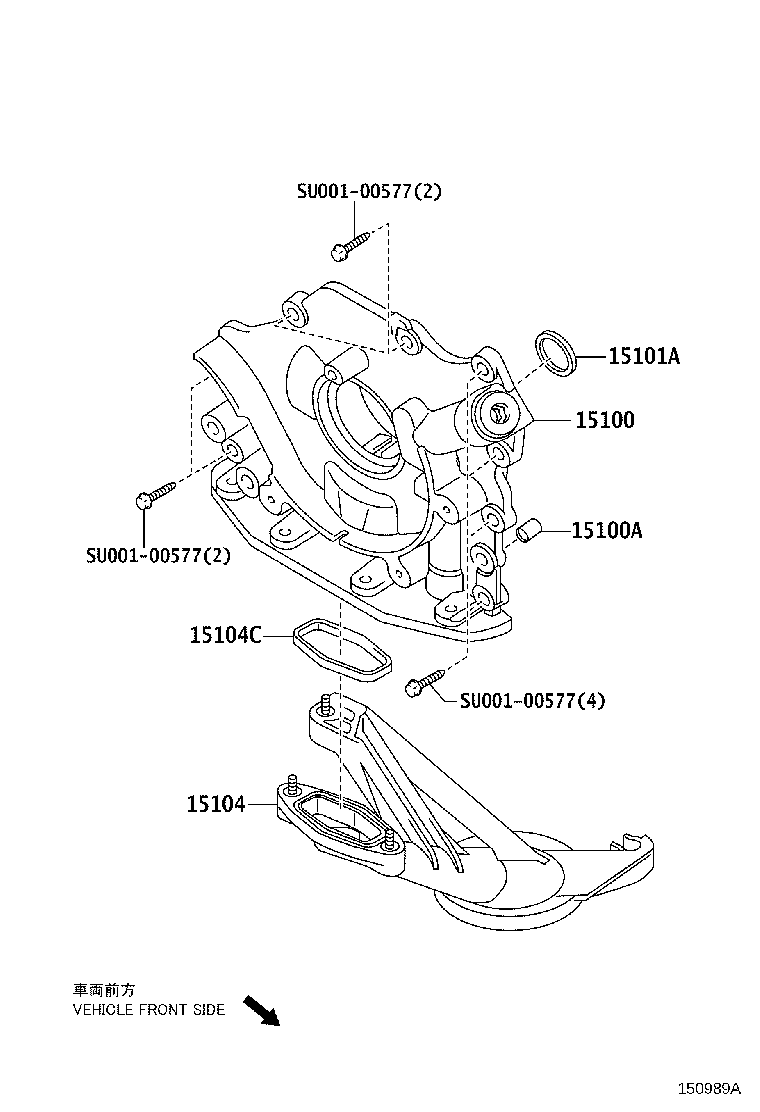

Figure 150989A

150989A 2005-05 → —

Part groups

PNC	Description
15100	Pump Assy, Oil
15100A	Pin, Ring(FOR OIL PUMP SET)
15101A	Seal(FOR CRANKSHAFT)
15104	Strainer Sub-assy, Oil
15104C	Gasket(FOR OIL STRAINER)
15147	Gasket, Oil Strainer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
