Manifold

24 part groups · 2 illustrations

Illustrations

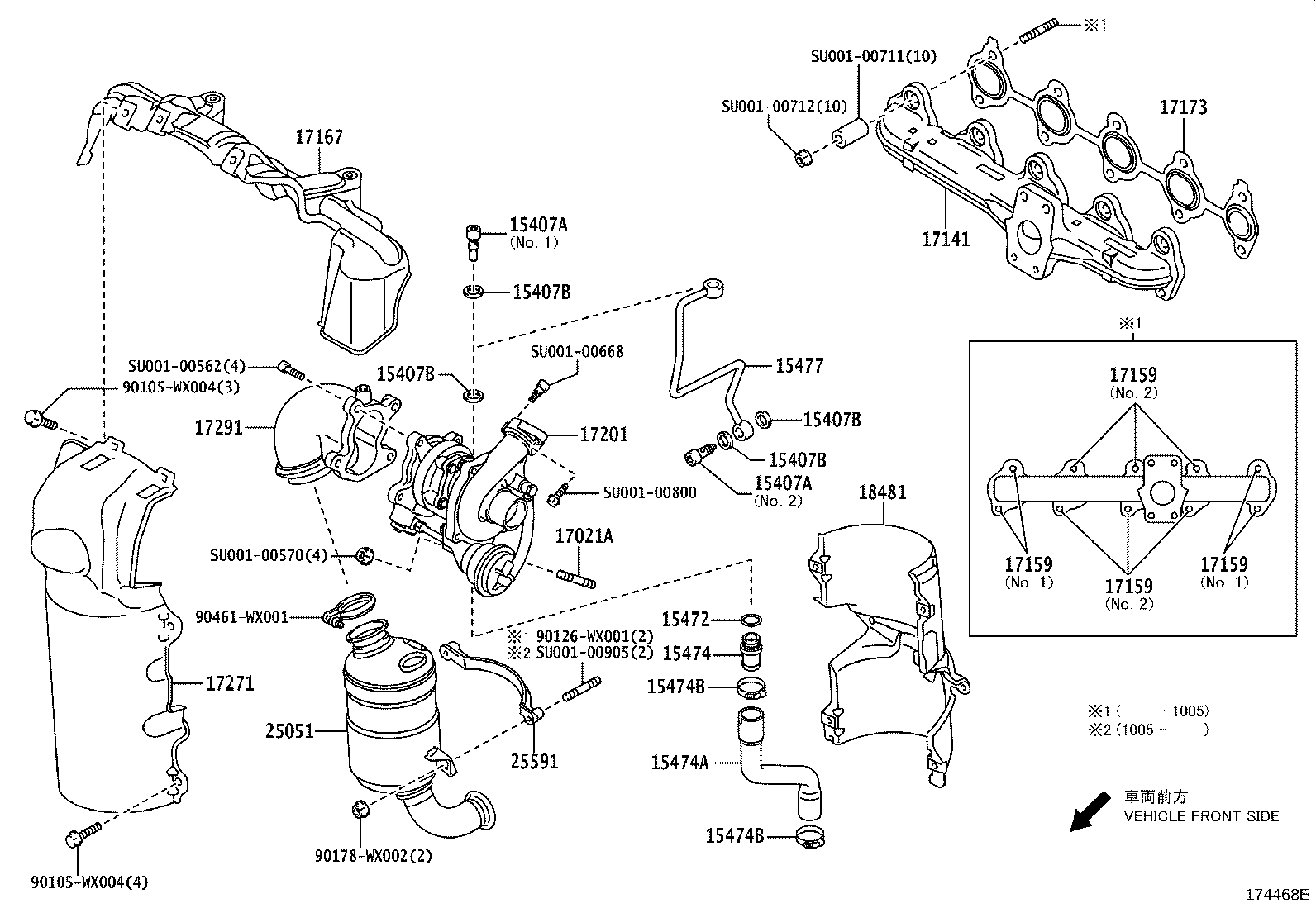

Figure 174285O 174285O 2005-02 → — Figure 174468E 174468E 2005-05 → —

Part groups

PNCDescription
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15477 Pipe, Turbo Oil Inlet
17021A Bolt, Stud(FOR BEARING HOUSING)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17291 Elbow, Turbine Outlet
18481 Insulator, Converter Separator, NO.1
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
