Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 2 illustrations

Illustrations

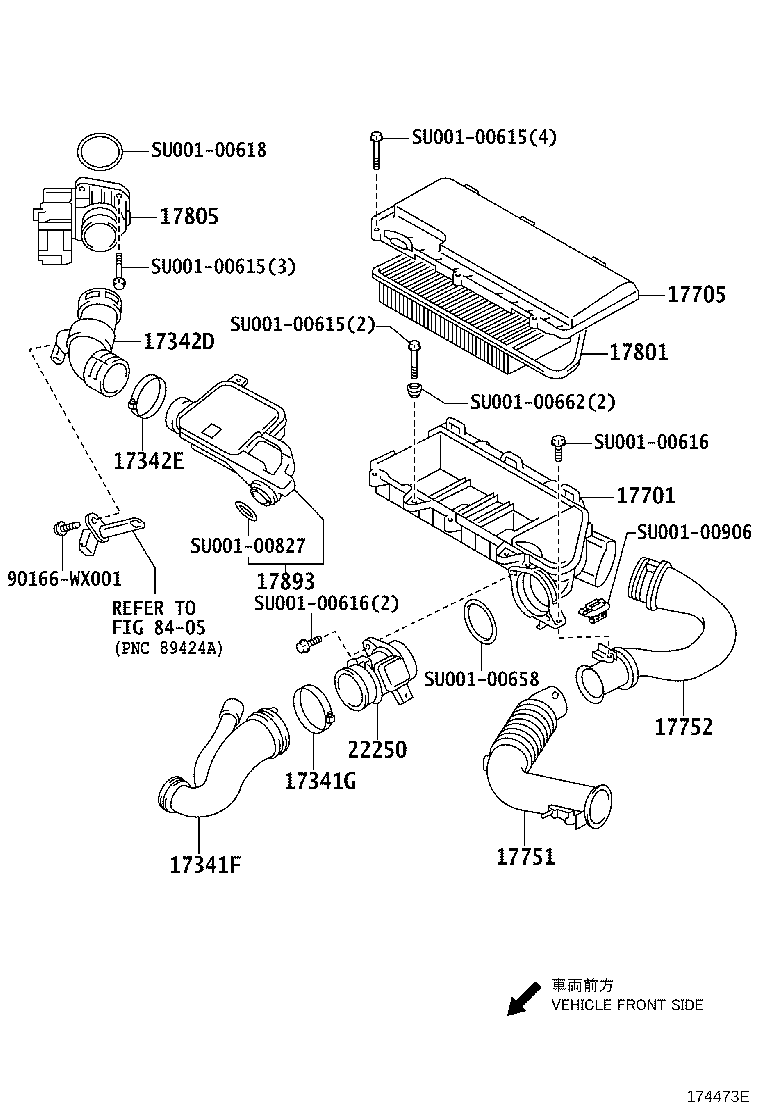

Figure 174403D 174403D 2005-02 → — Figure 174473E 174473E 2005-05 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17716 Support,Air Cleaner Cap
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17893 Resonator, Intake Air
22250 Meter Assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
