Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

16 part groups · 2 illustrations

Illustrations

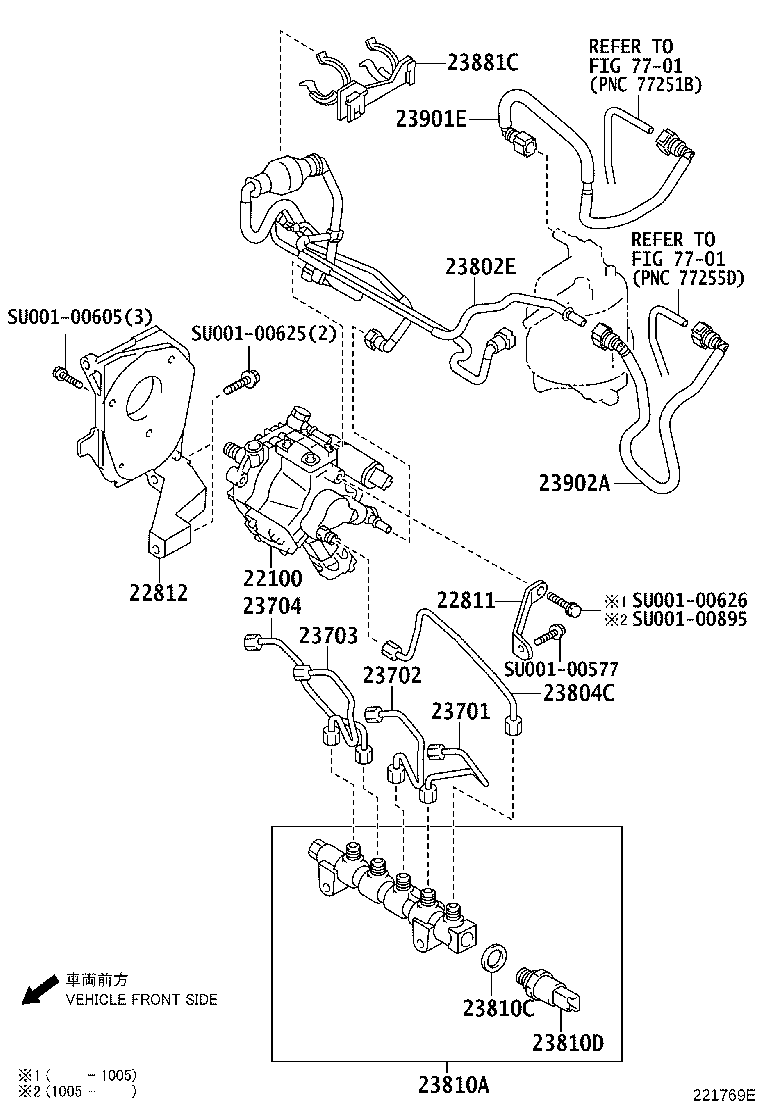

Figure 221770A 221770A 2005-05 → — Figure 221769E 221769E 2005-05 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22811 Stay, Injection Pump, NO.1
22812 Retainer, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23802E Pipe Sub-assy, Fuel
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23810C Set, Seals
23810D Diesel HP Sensor
23881C Bracket, Fuel Hose
23901E Tube Sub-assy, Fuel
23902A Tube Sub-assy, Fuel, NO.2
77266C Protector,Fuel Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
