Fuel Filter

5 part groups · 3 illustrations

Illustrations

Figure 230381A

230381A 2005-05 → 2005-06

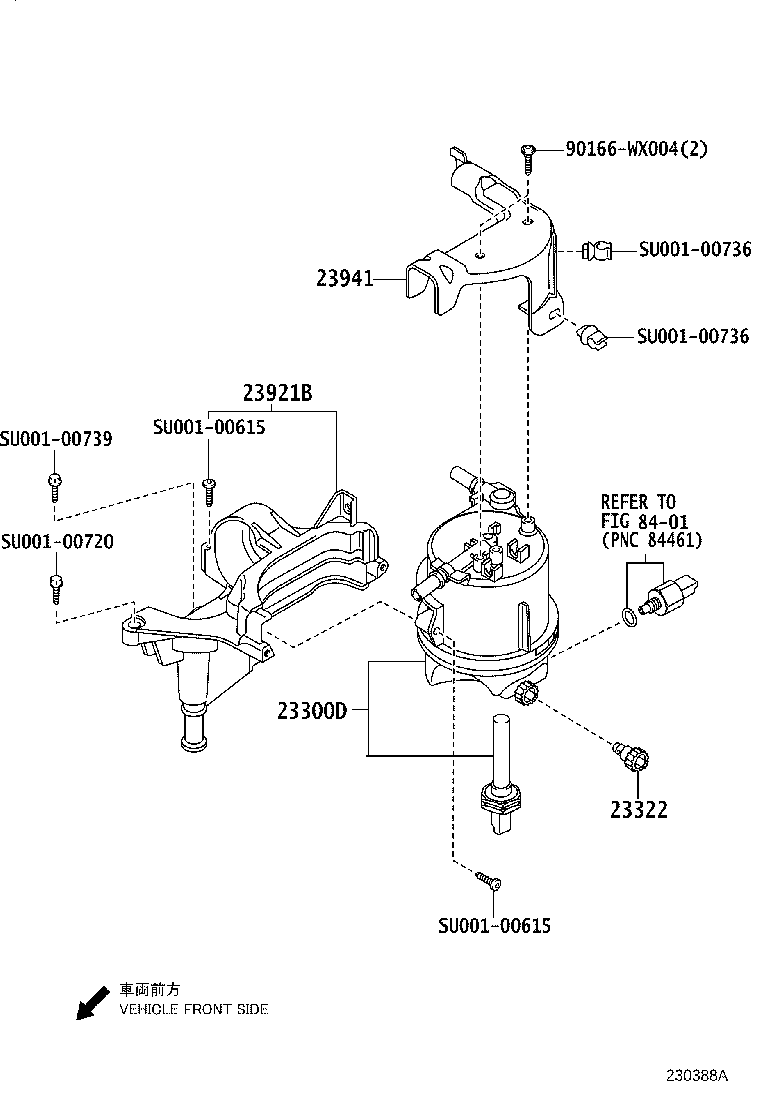

Figure 230388A

230388A 2005-06 → 2006-01

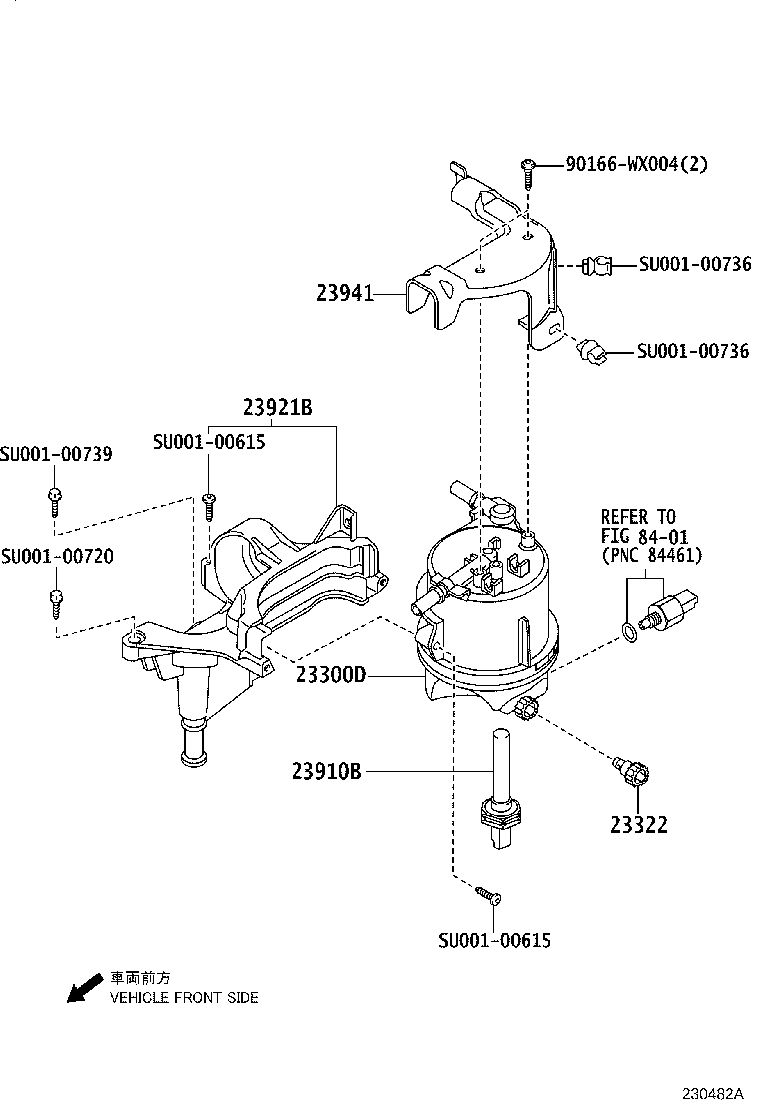

Figure 230482A

230482A 2006-01 → —

Part groups

PNC	Description
23300D	Filter Assy, Fuel(FOR DIESEL)
23322	Plug, Drain(FOR FUEL FILTER)
23910B	Heater Assy, Fuel
23921B	Bracket(FOR FUEL FILTER)
23941	Protector, Fuel Filter, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
