Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 2 illustrations

Illustrations

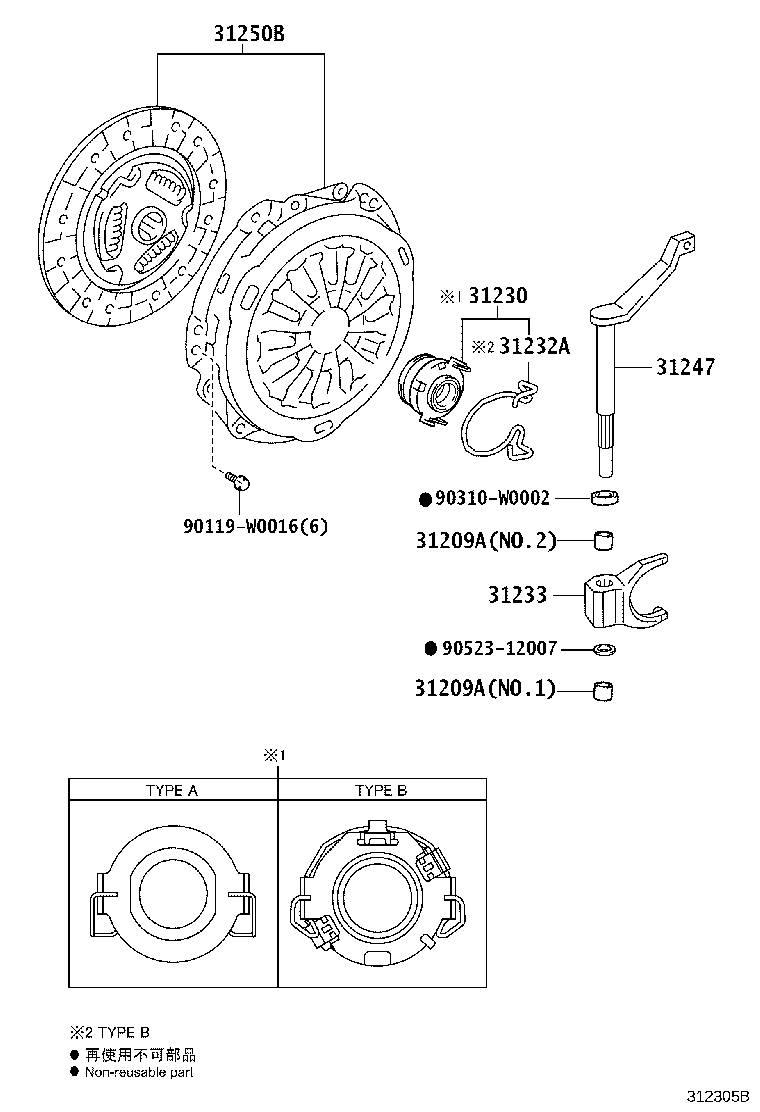

Figure 311437I 311437I 2005-02 → — Figure 312305B 312305B 2005-05 → —

Part groups

PNCDescription
31209A Bush, Bimetal Formed(FOR CLUTCH RELEASE LEVER SUPPORT)
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31233 Fork, Clutch Release
31236B Support, Release Fork
31238 Hanger, Release Fork Retracting Spring
31240A Spring, Tension(FOR CLUTCH RELEASE FORK RETURN)
31247 Lever, Clutch Release Fork
31250 Disc Assy, Clutch
31250B Disc Set, Adjustable Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
