Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

13 part groups · 2 illustrations

Illustrations

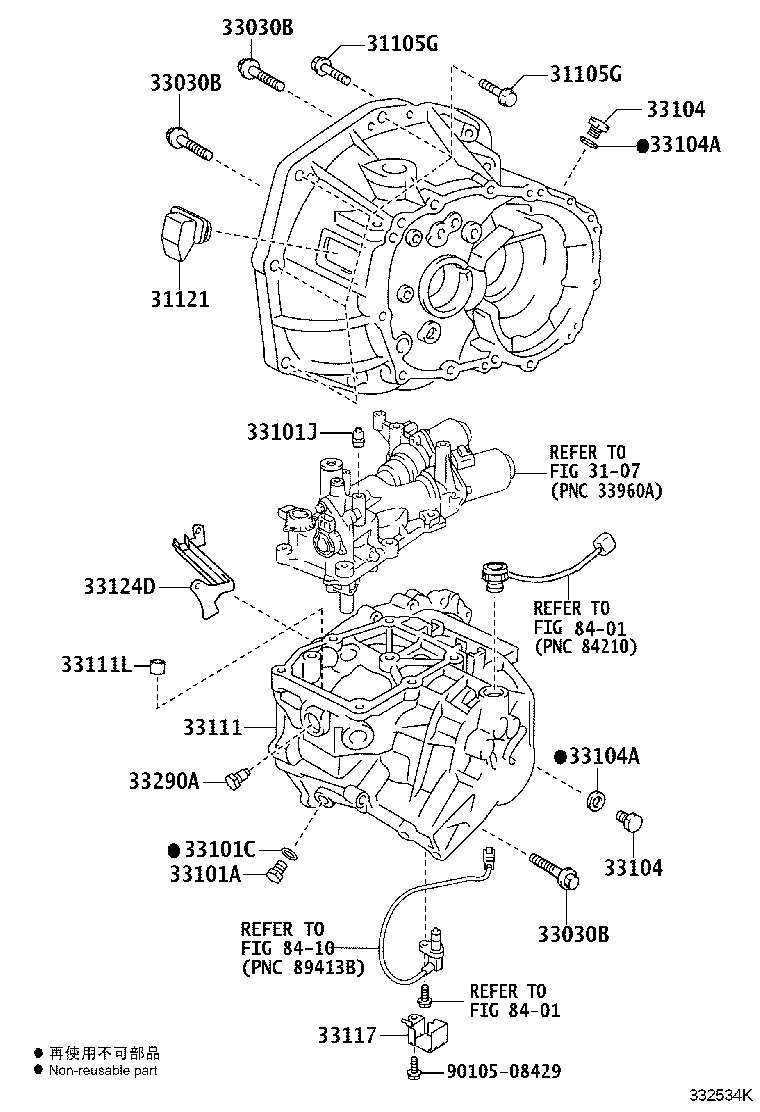

Figure 332533C 332533C 2005-02 → — Figure 332534K 332534K 2005-02 → —

Part groups

PNCDescription
31105G Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
31121 Cover, Clutch Housing, NO.1
33030B Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101A Plug(FOR MANUAL TRANSMISSION FILLER)
33101C Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
33101J Plug, Breather
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33111 Case, Manual Transmission
33111L Bush, Bimetal Formed(FOR TRANSMISSION CASE)
33117 Protector, Manual Transmission Case
33124D Pipe, Oil Receiver, NO.2(MTM)
33290A Ball Assy, Lock, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
