Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 3 illustrations

Illustrations

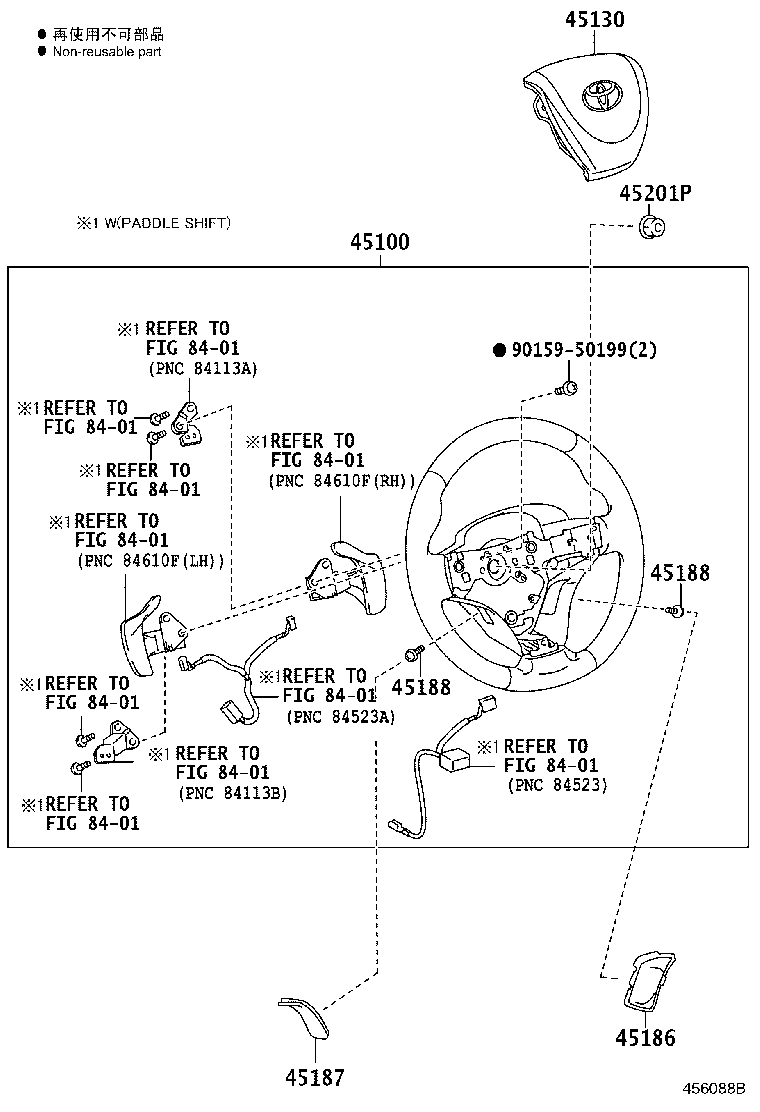

Figure 454165A 454165A 2005-02 → 2012-02 Figure 456090 456090 2012-02 → — Figure 456088B 456088B 2012-02 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
