Brake Booster & Vacuum Tube

6 part groups · 4 illustrations

Illustrations

Figure 474508D

474508D 2005-02 → —

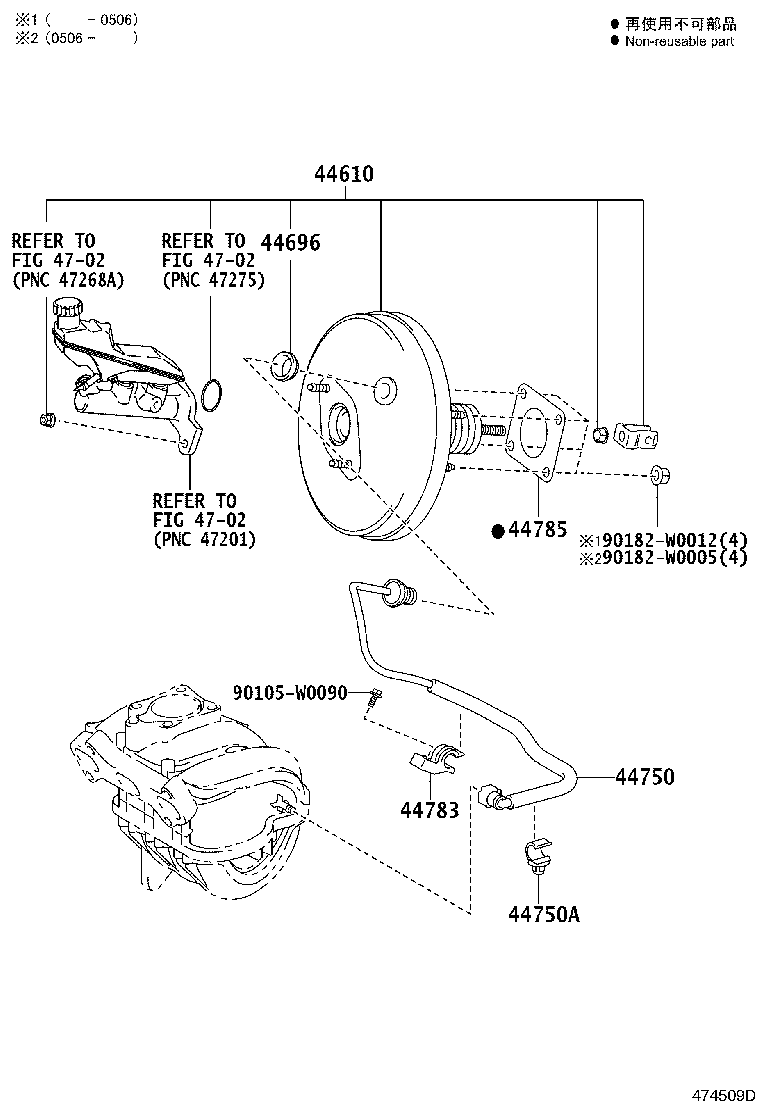

Figure 474509D

474509D 2005-02 → —

Figure 474594D

474594D 2005-05 → —

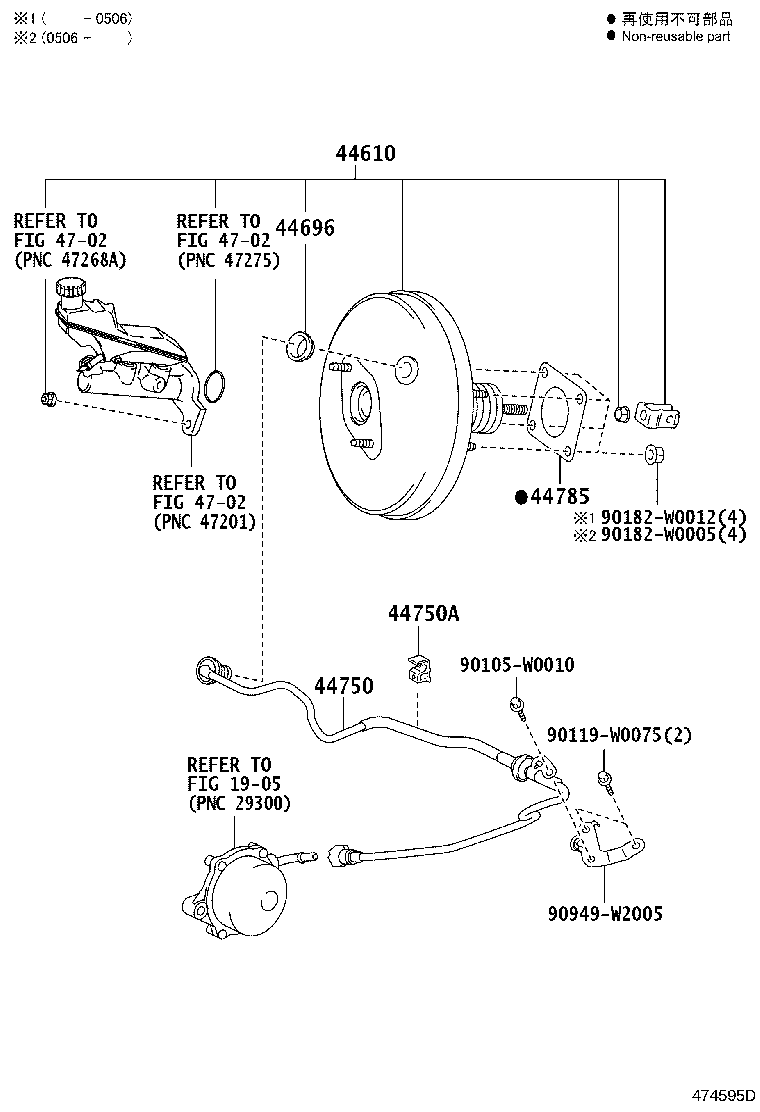

Figure 474595D

474595D 2005-05 → —

Part groups

PNC	Description
44610	Booster Assy, Brake
44696	Grommet, Check Valve
44750	Hose Assy, Vacuum
44750A	Clip(FOR VACUUM HOSE ASSY)
44783	Clamp, Vacuum Hose
44785	Gasket, Brake Booster

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
