Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

20 part groups · 6 illustrations

Illustrations

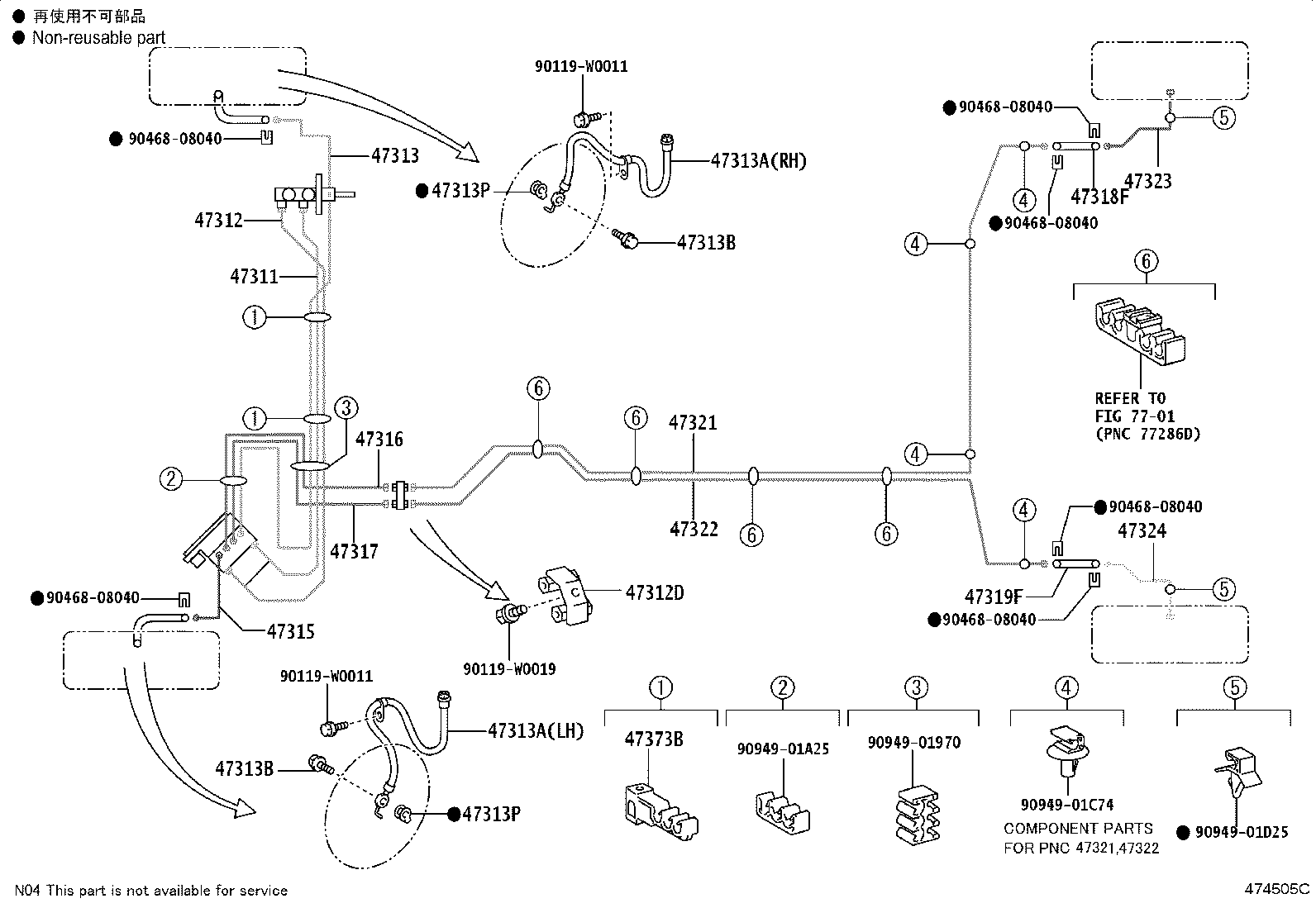

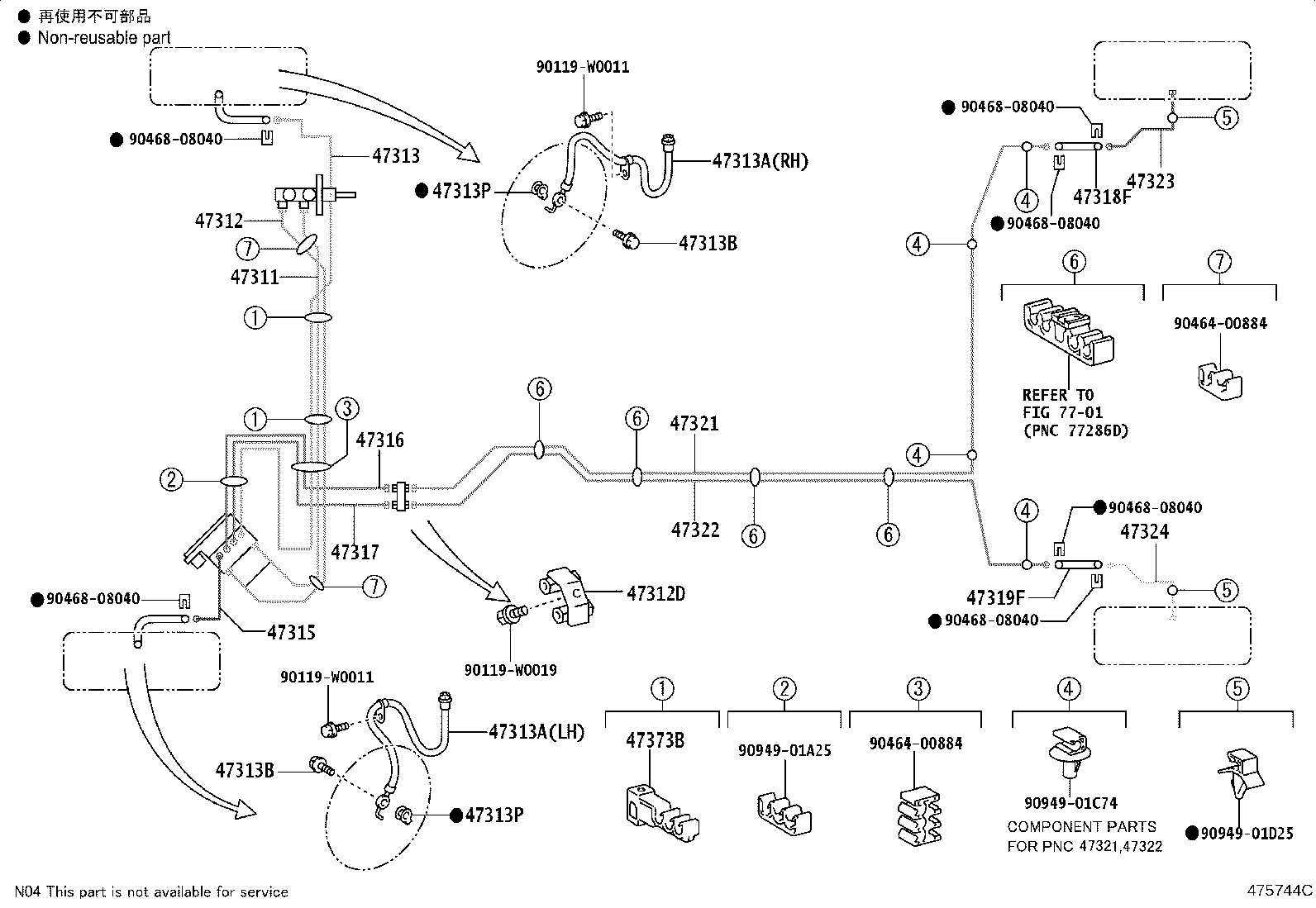

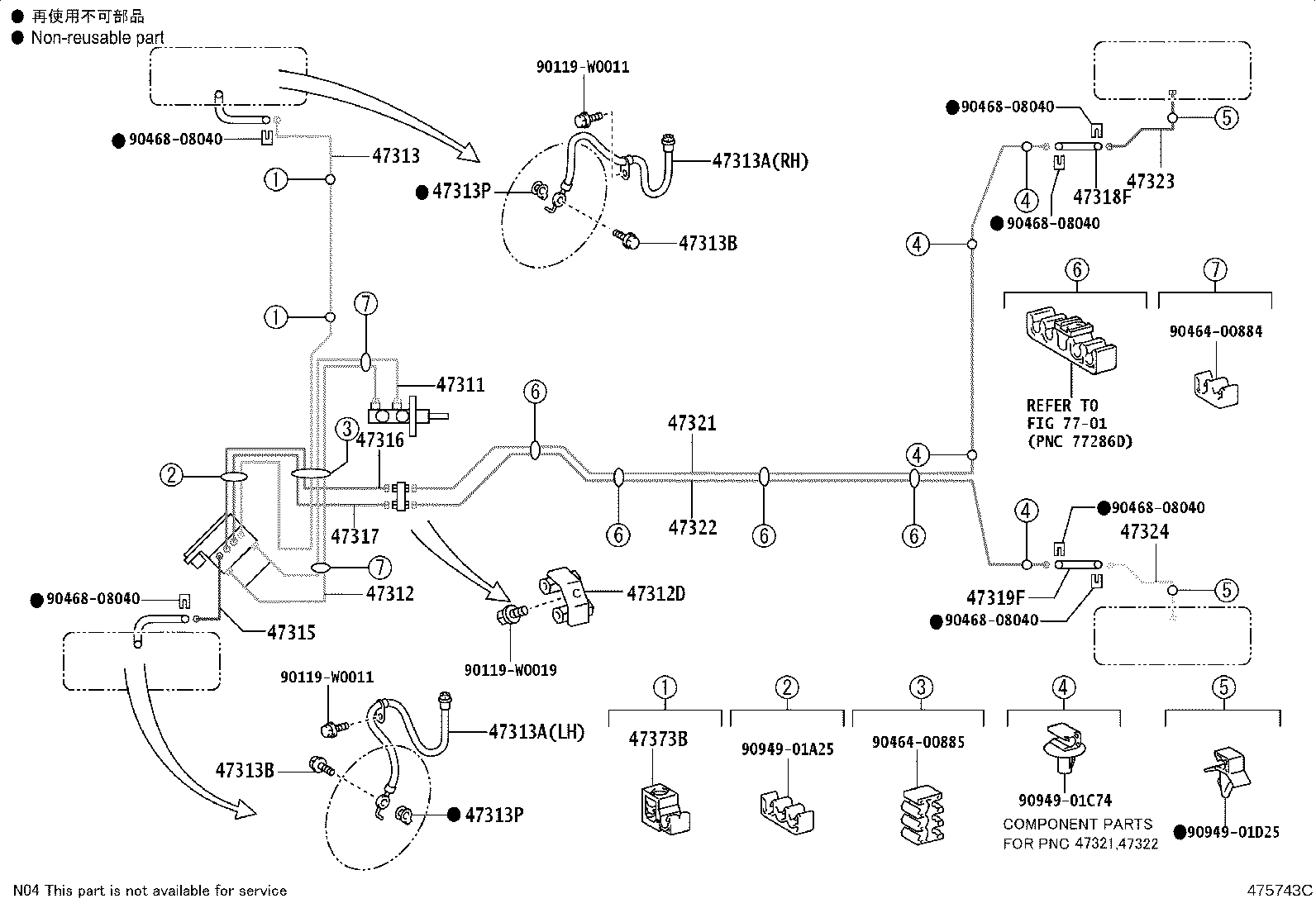

Figure 474504C 474504C 2005-02 → — Figure 475743C 475743C 2007-03 → — Figure 474505C 474505C 2005-01 → — Figure 475744C 475744C 2007-03 → — Figure 474503B 474503B 2005-02 → — Figure 475745B 475745B 2007-03 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47312D Way, 2(FOR REAR BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47373B Clamp, Brake Tube, NO.3
