Toyota Aygo
2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe
Supported model
Data version 2014-05

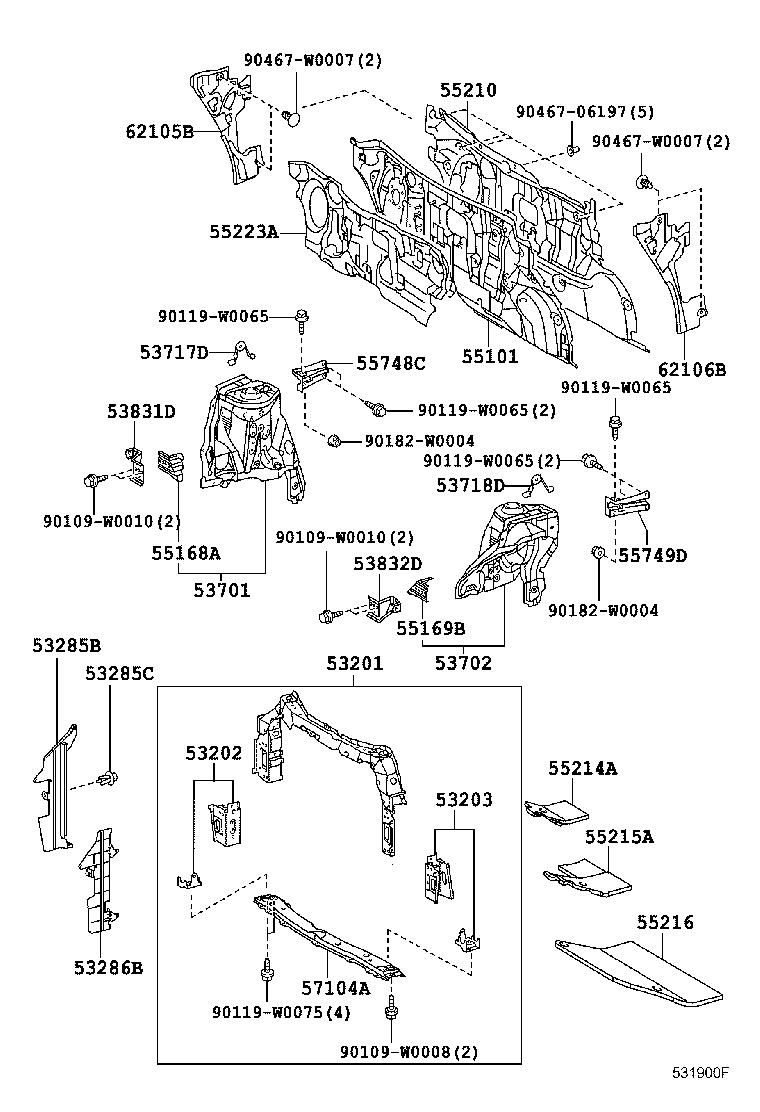

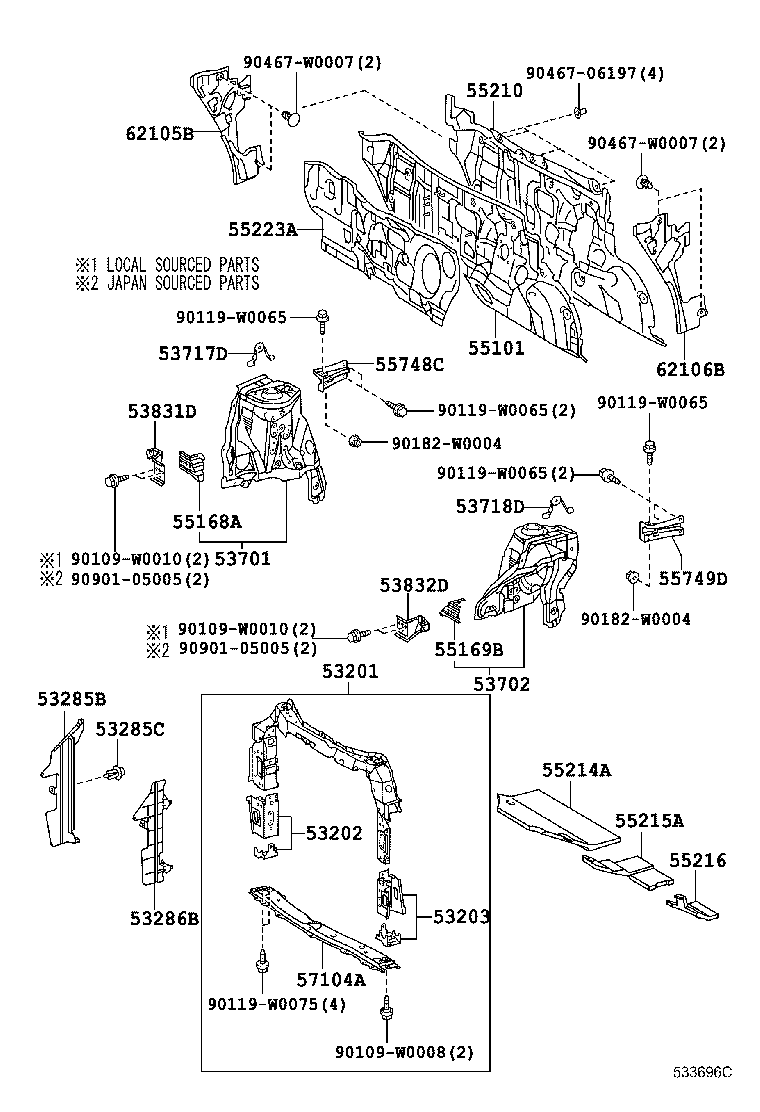

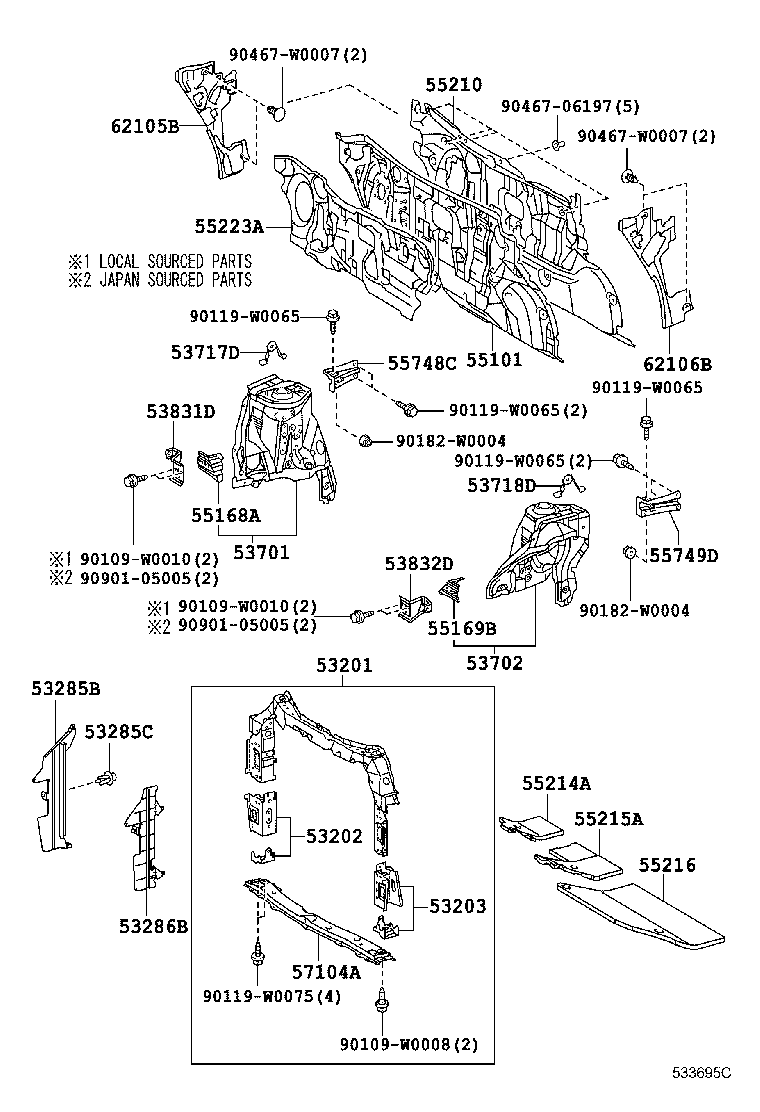

Front Fender Apron & Dash Panel
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53285B | Seal, Radiator Side Air, NO.1 |
| 53285C | Clip(FOR RADIATOR SIDE AIR SEAL) |
| 53286B | Seal, Radiator Side Air, NO.2 |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53717D | Gusset, Fender Apron, RH |
| 53718D | Gusset, Fender Apron, LH |
| 53831D | Panel, Front Fender Side, RH |
| 53832D | Panel, Front Fender Side, LH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55214A | Pad, Dash Panel Insulator, NO.2 |
| 55215A | Pad, Dash Panel Insulator, NO.3 |
| 55216 | Pad, Dash Panel Insulator, NO.4 |
| 55223A | Insulator, Dash Panel, Outer |
| 55748C | Brace, Cowl Top Inner TO Pillar, RH |
| 55749D | Brace, Cowl Top Inner TO Pillar, LH |
| 57104A | Member Sub-assy, Front Cross |
| 62105B | Insulator Sub-assy, Cowl Side, RH |
| 62106B | Insulator Sub-assy, Cowl Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
