Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

16 part groups · 8 illustrations

Illustrations

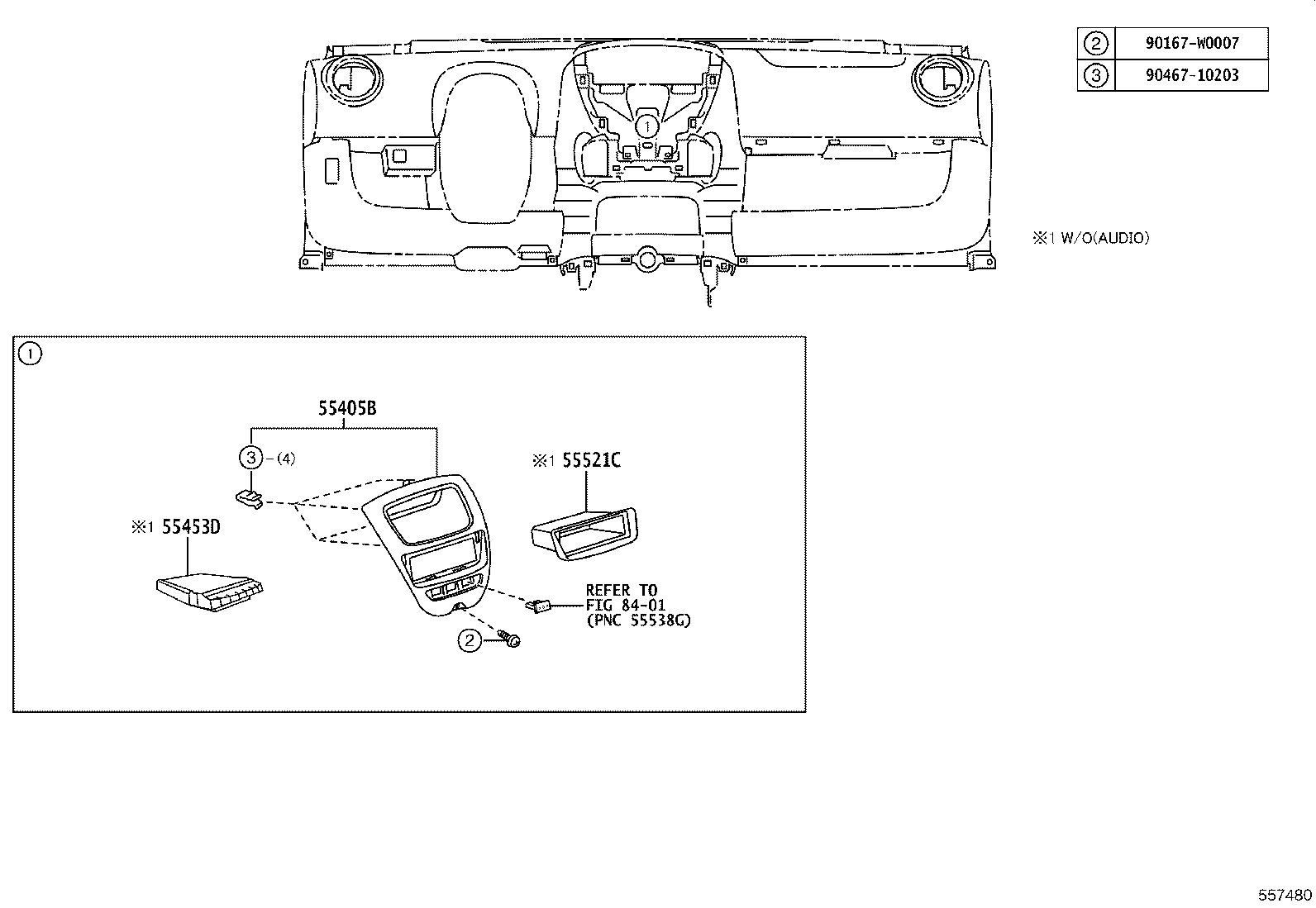

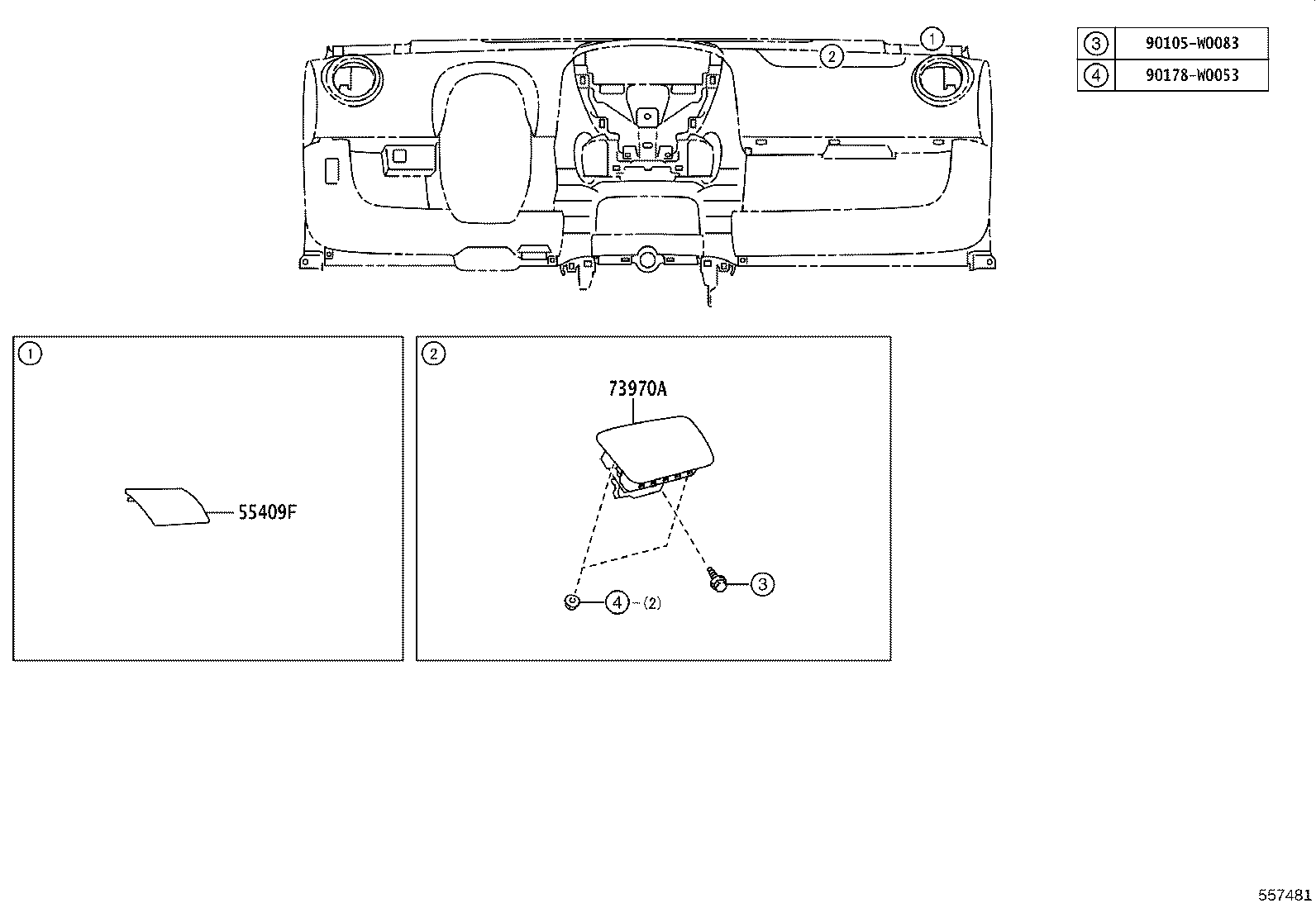

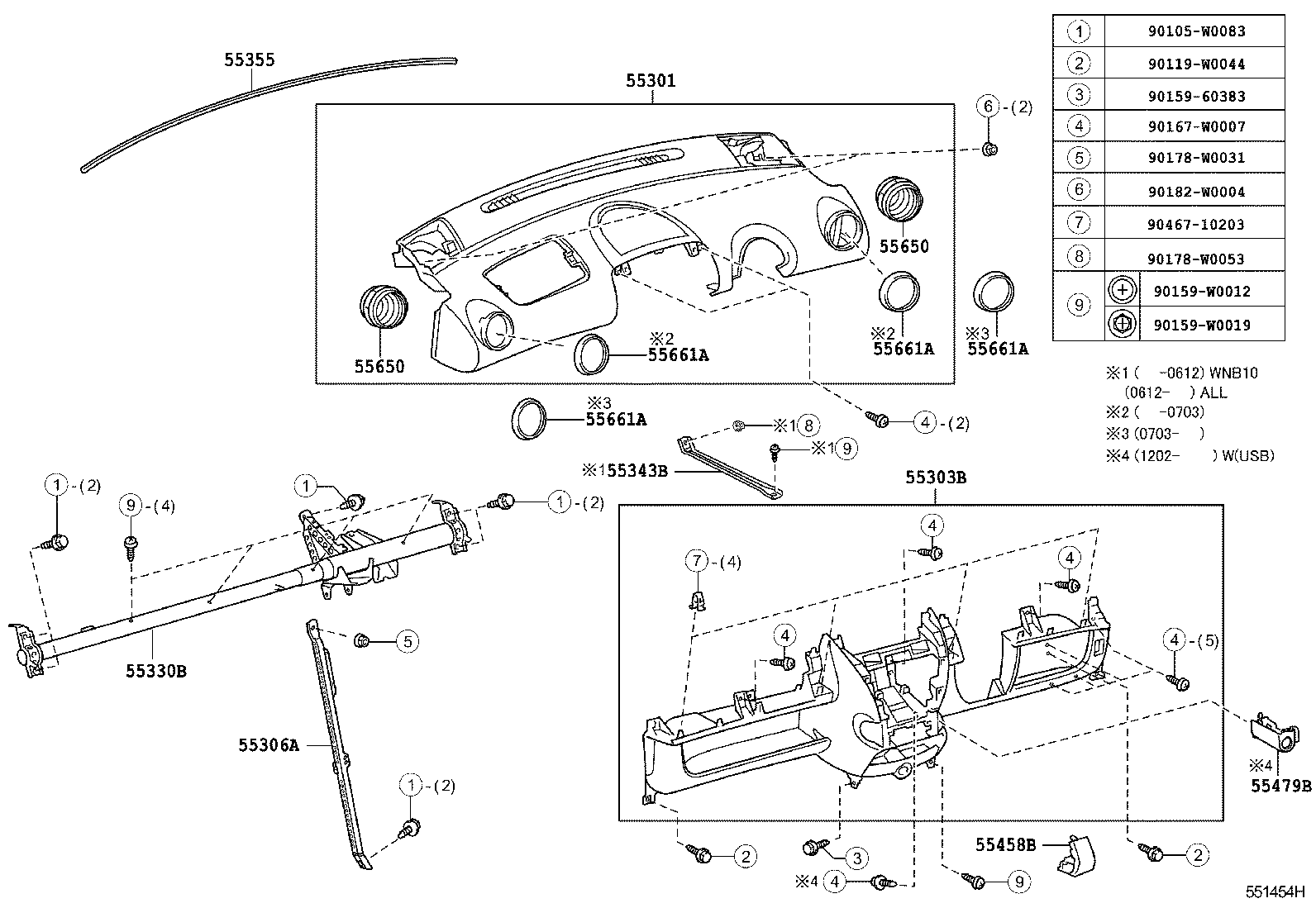

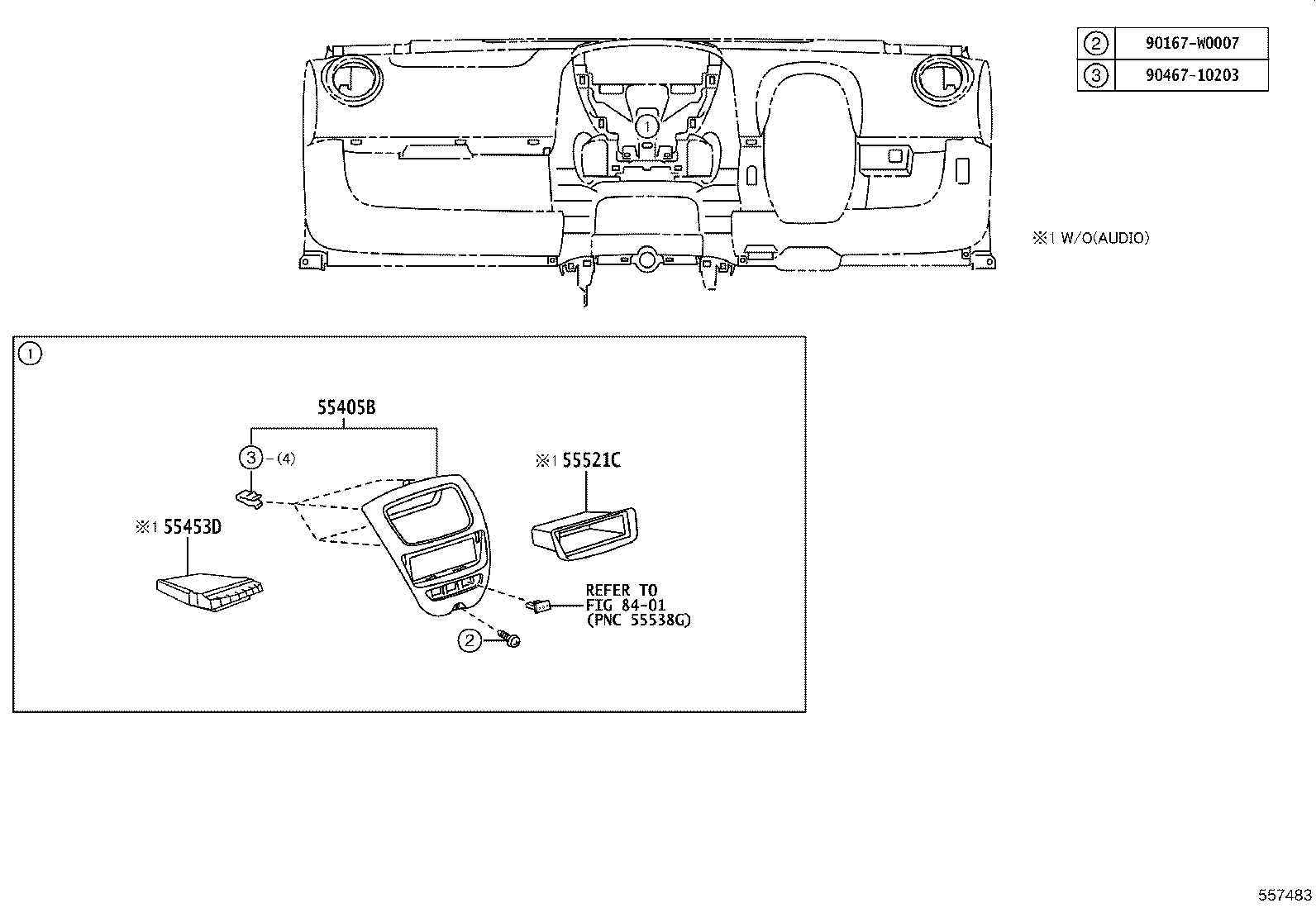

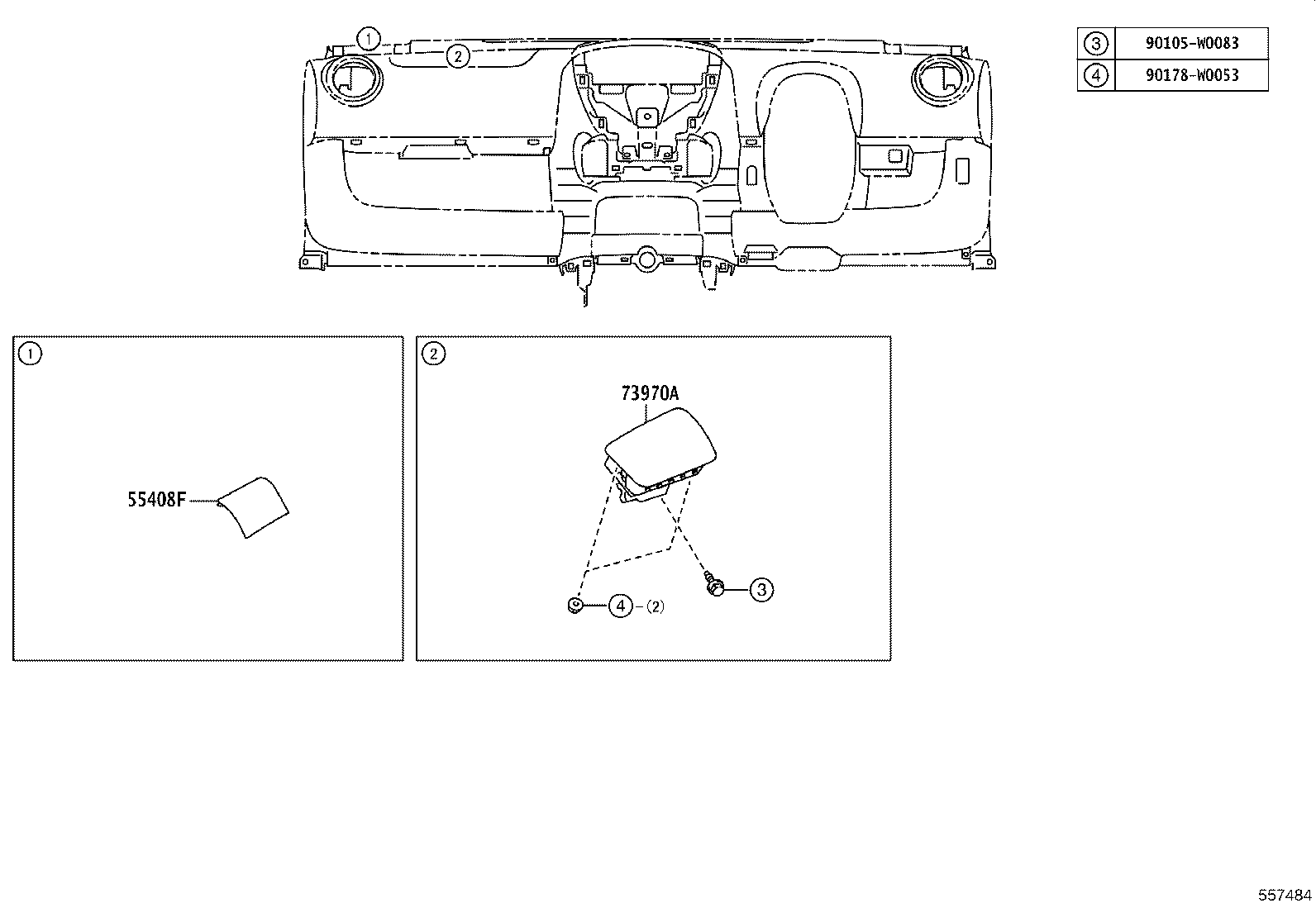

Figure 551455H 551455H 2005-02 → — Figure 551454H 551454H 2005-02 → — Figure 557479 557479 2005-02 → — Figure 557482 557482 2005-02 → — Figure 557480 557480 2005-02 → — Figure 557483 557483 2005-02 → — Figure 557481 557481 2005-02 → — Figure 557484 557484 2005-02 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55355 Cushion, Instrument Panel, NO.1
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55453D Pad, Instrument Panel Safety, NO.1
55458B Cover, Instrument, Lwr
55479B Cover, Instrument, Lower Center
55521C Cover, Stereo Opening
55650 Register Assy, Instrument Panel, NO.1
55661A Bezel, Instrument Panel Register
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
