Toyota Aygo
2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe
Supported model
Data version 2014-05

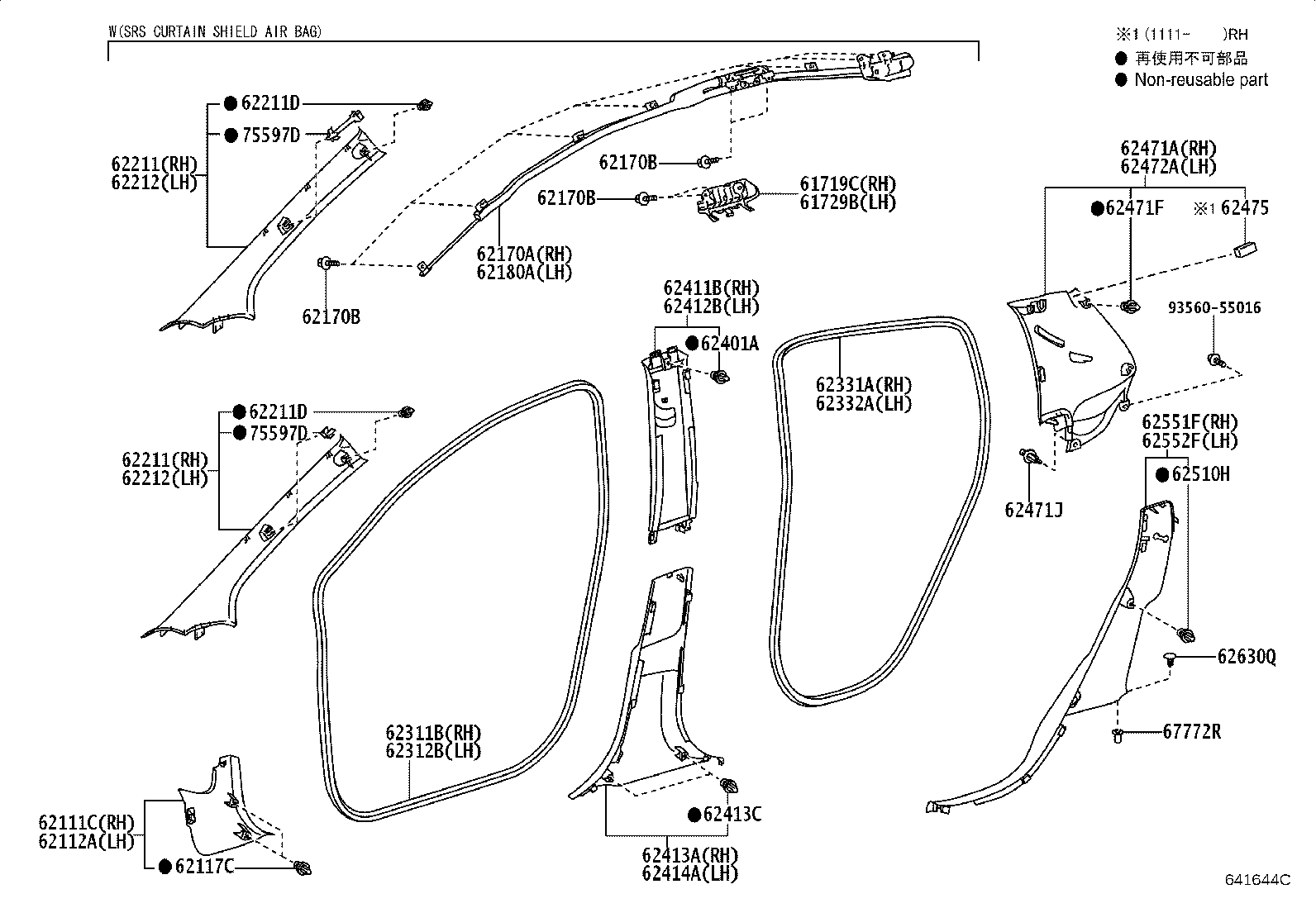

Inside Trim Board & Door Opening Trim Moulding
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61719C | Bracket, Roof Side Rail, RH |
| 61729B | Bracket, Roof Side Rail, LH |
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62475 | Pad, Roof Side Inner Garnish |
| 62485A | Retainer, Roof Side Inner Garnish |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 67772R | Cap, Door Trim Retainer |
| 75597D | Clip, Roof Side Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
