Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

7 part groups · 2 illustrations

Illustrations

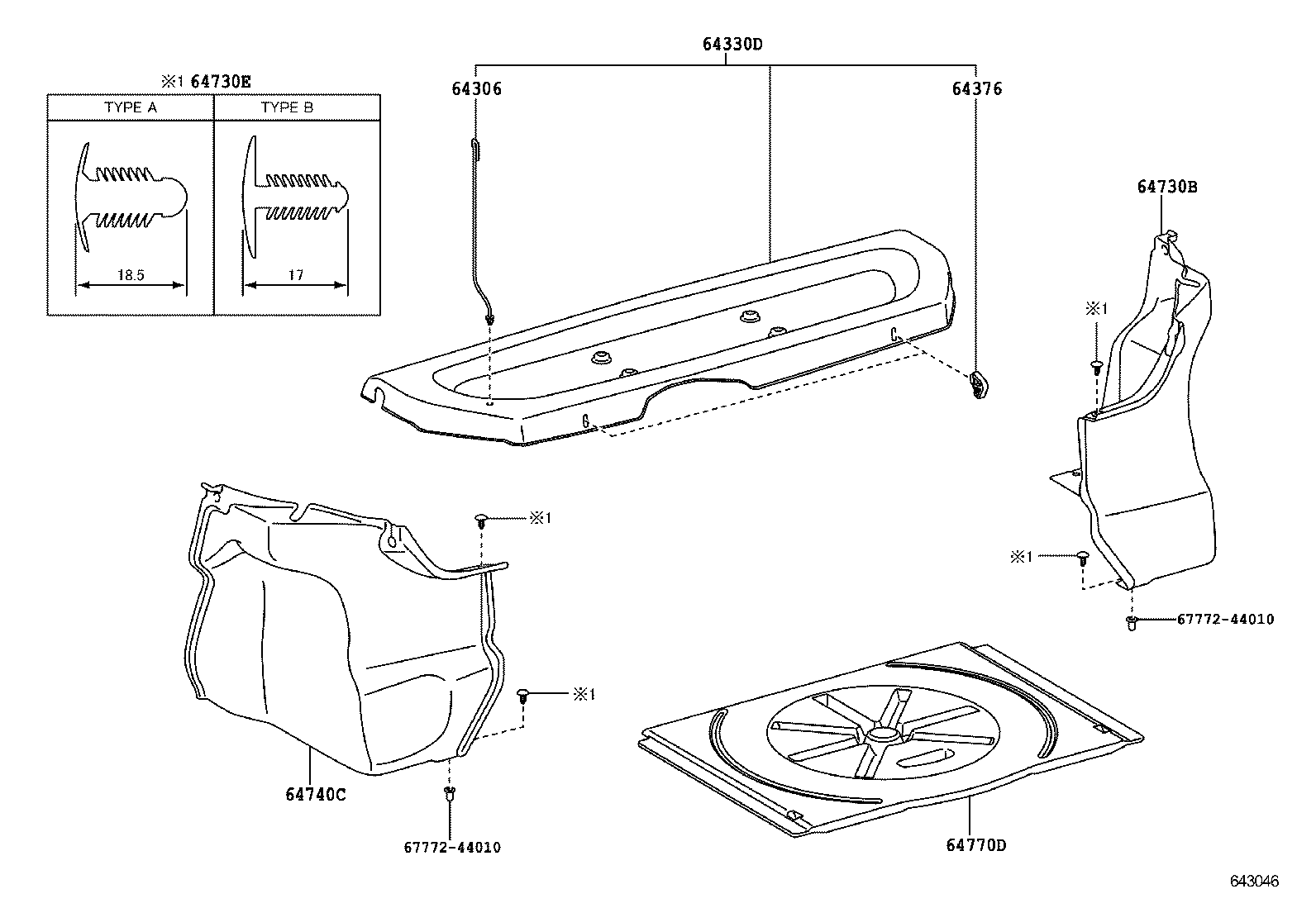

Figure 641642 641642 2005-02 → 2012-02 Figure 643046 643046 2012-02 → —

Part groups

PNCDescription
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64730B Panel Assy, Deck Trim Side, RH
64730E Clip(FOR DECK TRIM SIDE BOARD)
64740C Panel Assy, Deck Trim Side, LH
64770D Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
