Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

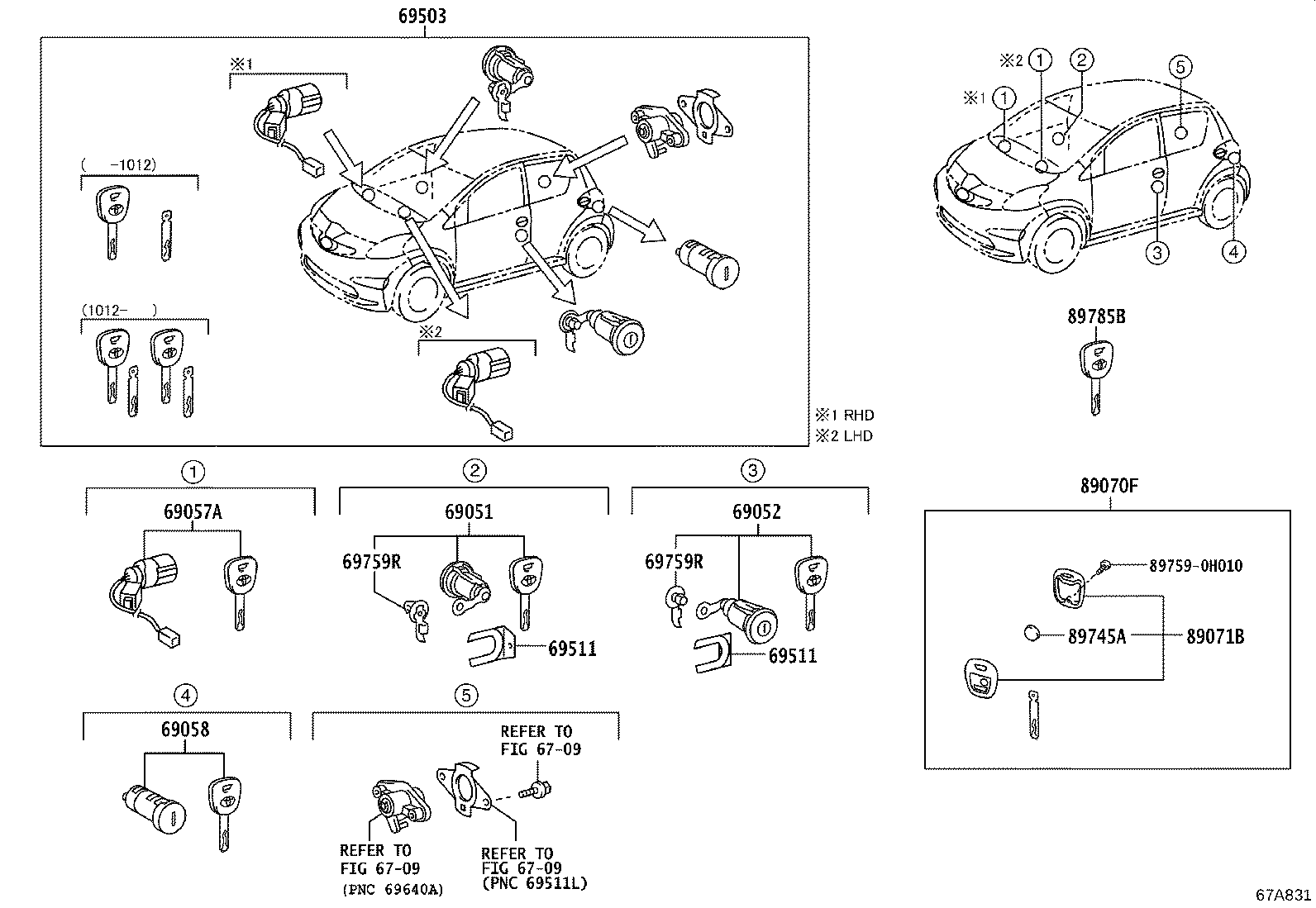

Figure 673877G 673877G 2005-02 → — Figure 67A831 67A831 2005-02 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69511 Retainer, Front Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89785B Transmitter, Transponder Key Master
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
