Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

16 part groups · 2 illustrations

Illustrations

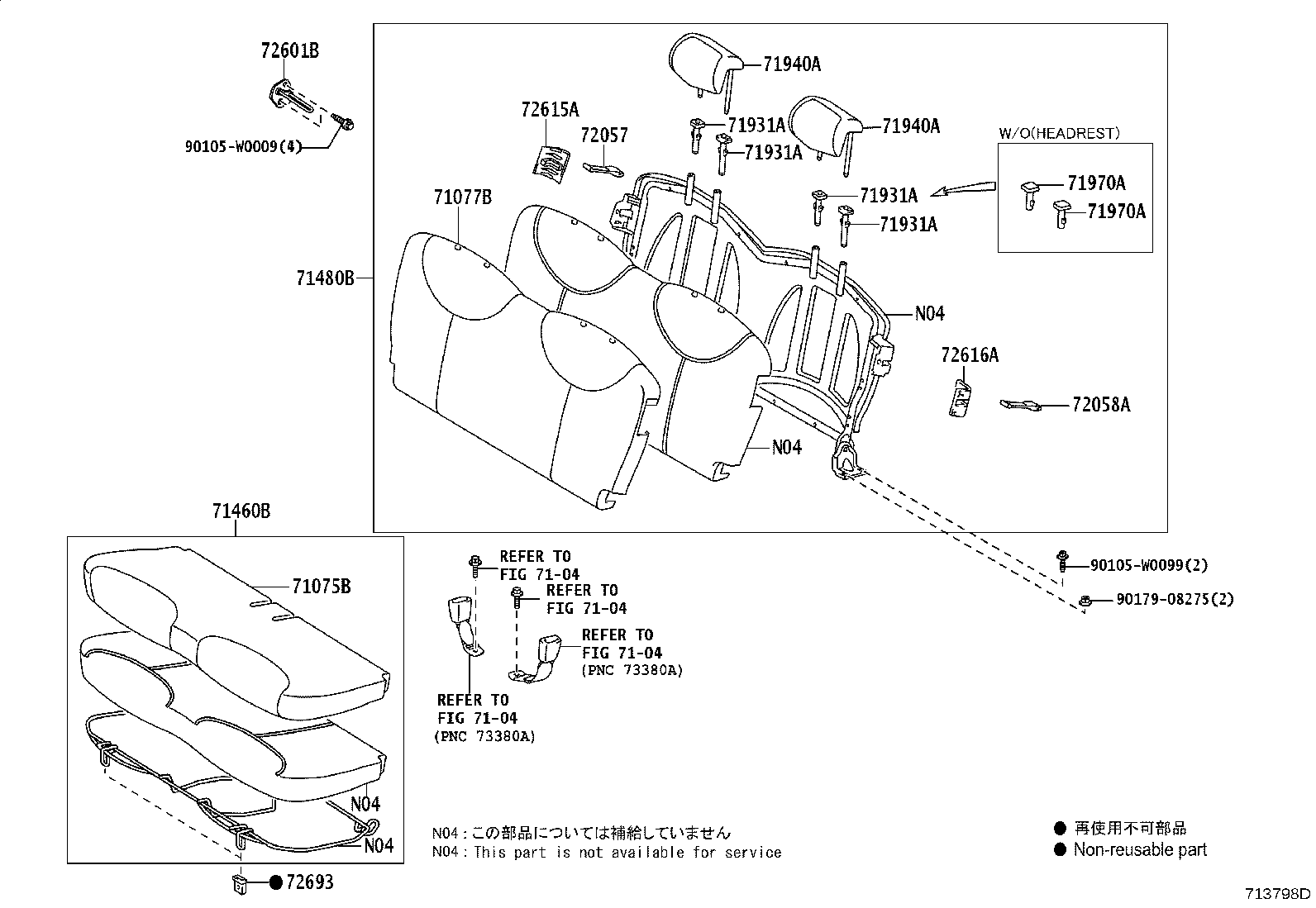

Figure 713797D 713797D 2005-02 → — Figure 713798D 713798D 2005-02 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71305A Hinge Sub-assy, Rear Seatback, Center
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71970A Cover, Rear Seat Headrest
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72601B Striker Sub-assy, Rear Seatback Lock
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72693 Hook, Rear Seat Cushion Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
