Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

6 part groups · 2 illustrations

Illustrations

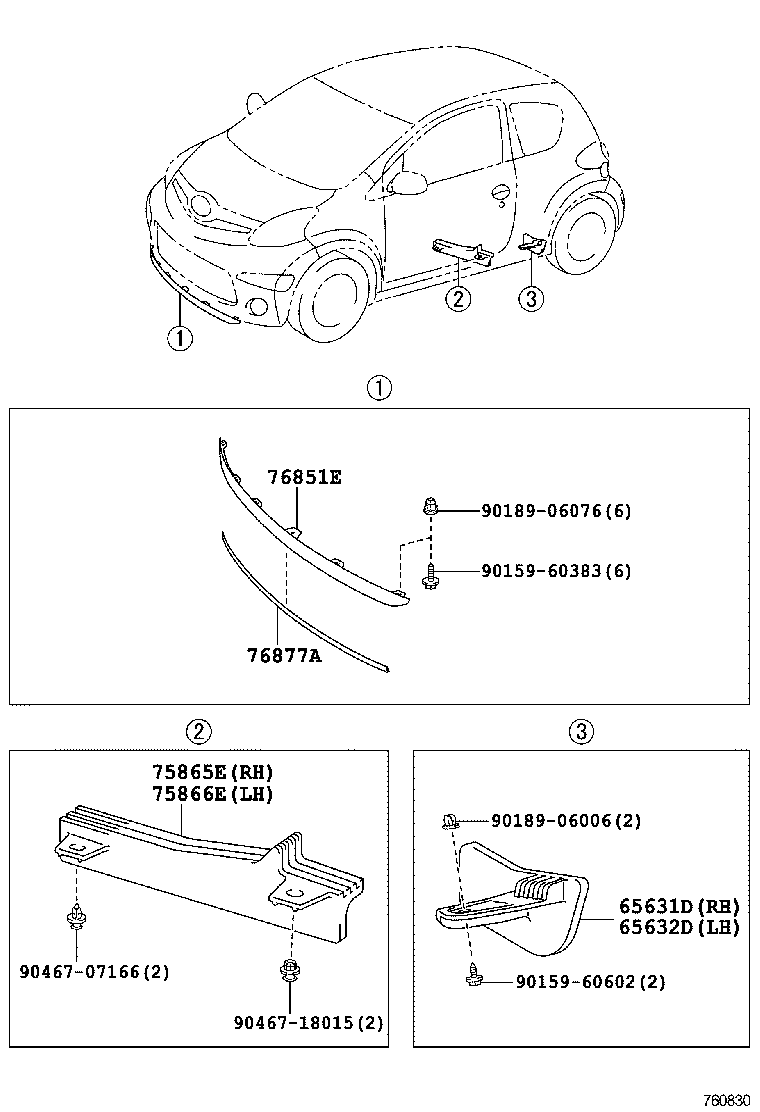

Figure 760481A 760481A 2005-02 → 2012-02 Figure 760830 760830 2012-02 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
76851E Spoiler, Front
76877A Protector, Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
