Toyota Aygo
2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe
Supported model
Data version 2014-05
Fuel Tank & Tube
28 part groups · 4 illustrations

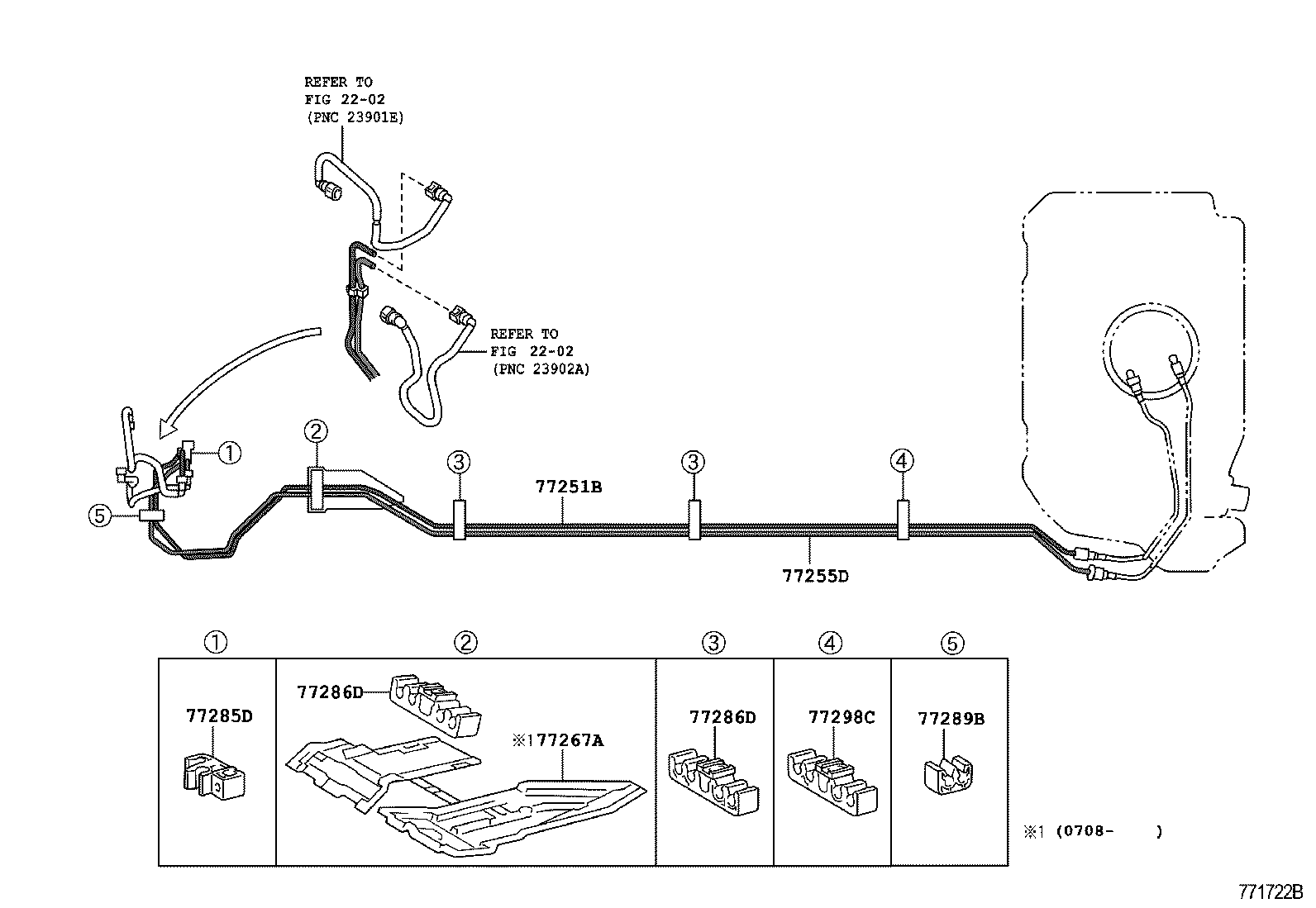

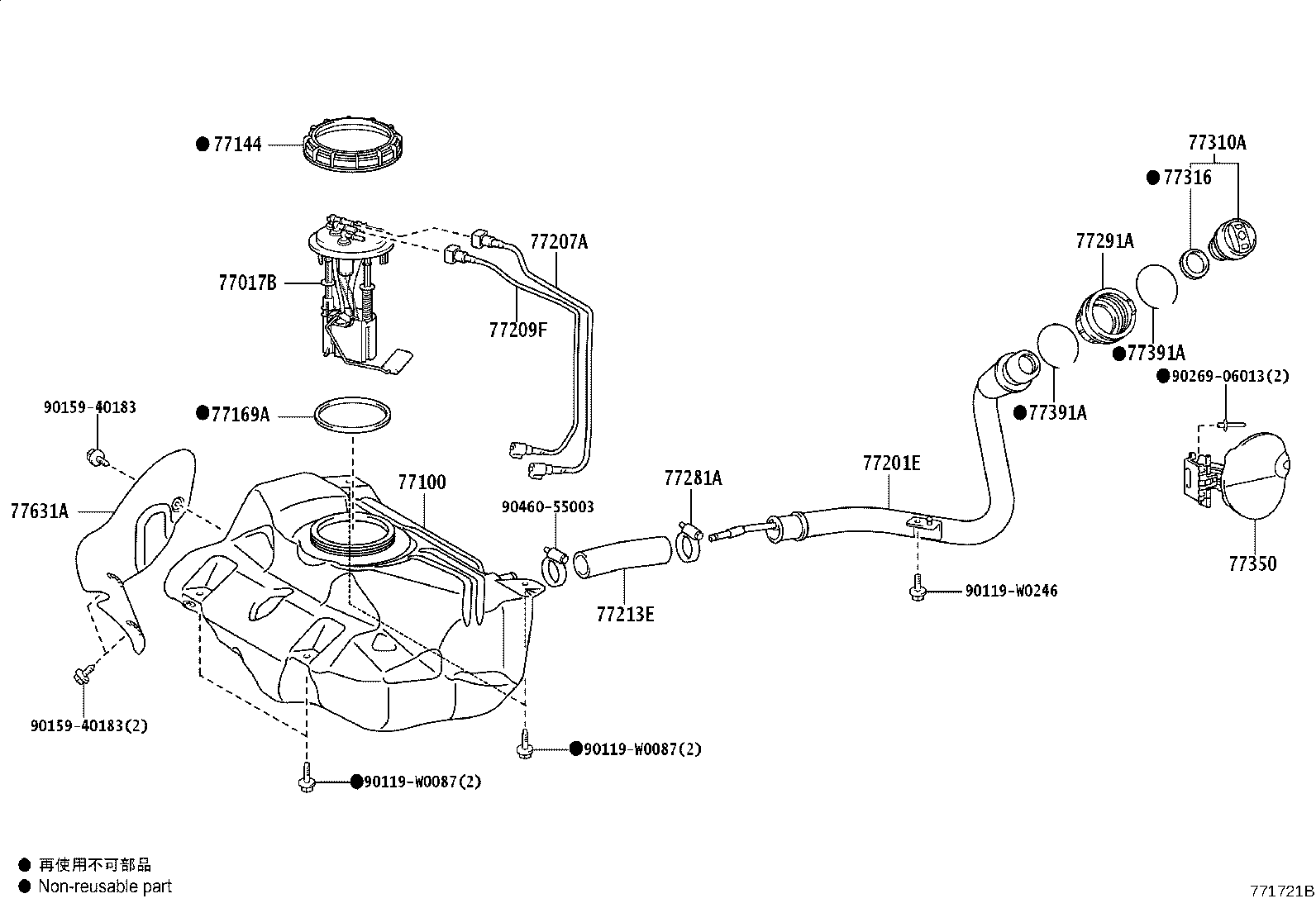

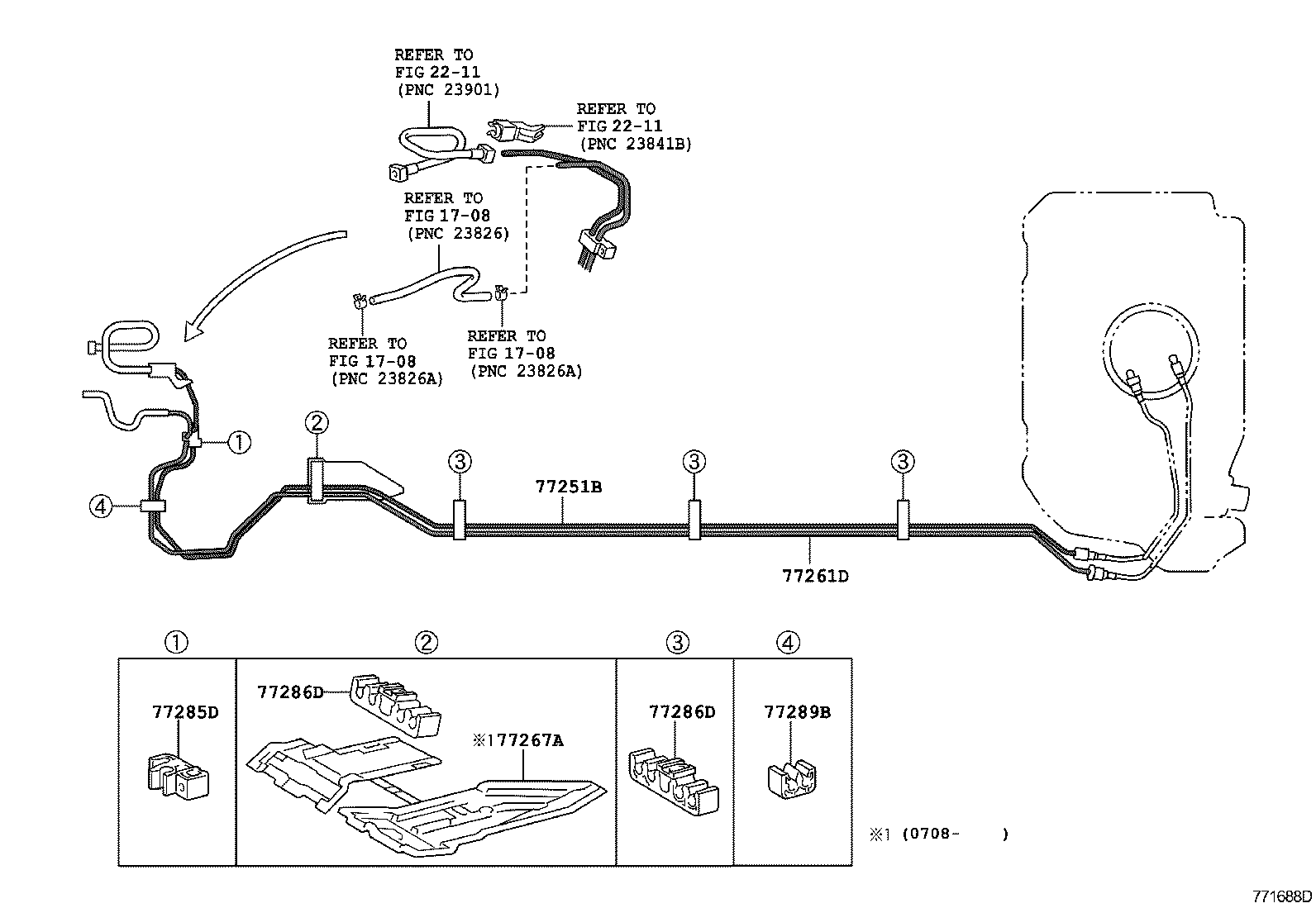

Part groups
| PNC | Description |
|---|---|
| 23221 | Pump, Fuel |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77027B | Tube Sub-assy, Fuel Emission, NO.1 |
| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77207A | Tube Sub-assy, Fuel Return |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77240 | Tube Assy, Fuel Suction |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77261D | Tube, Fuel Tank TO Canister |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77391A | Ring, Fuel Inlet Box |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77651B | Cushion, Fuel Tank |
| 77706 | Filter Sub-assy, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
