Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

12 part groups · 2 illustrations

Illustrations

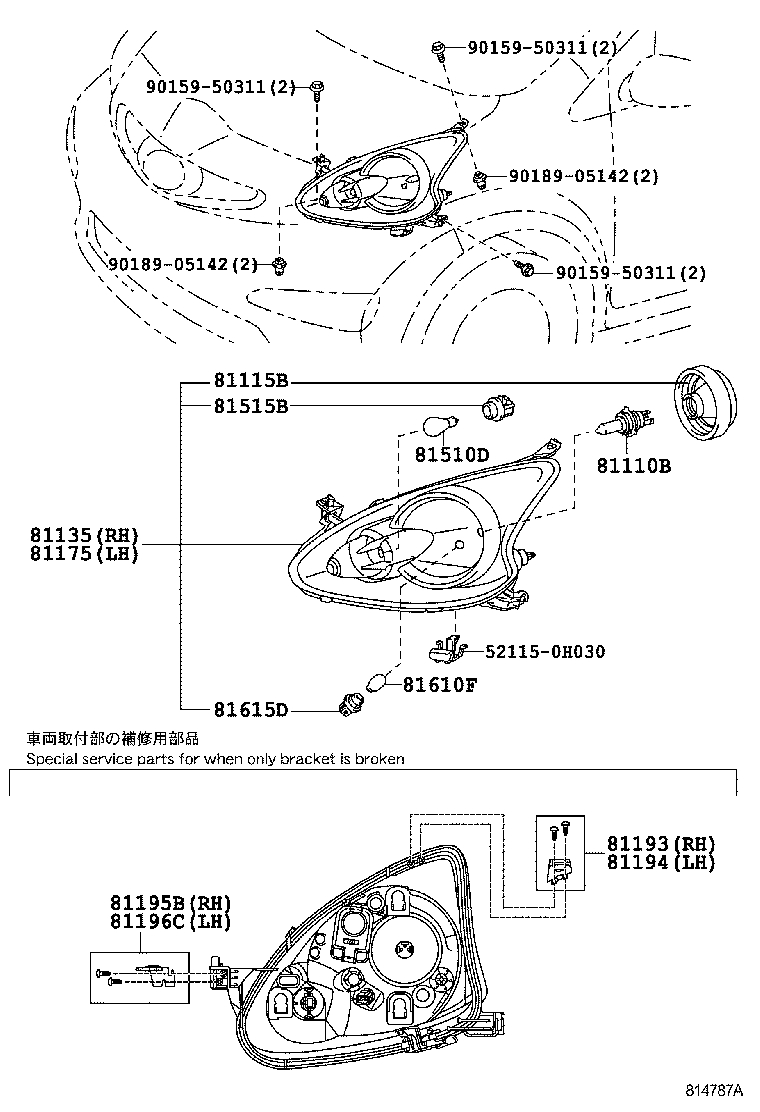

Figure 813179C 813179C 2005-02 → 2008-12 Figure 814787A 814787A 2008-12 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81115B Socket,Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195B Retainer, RH Headlamp Protector, Lower RH
81196C Retainer, LH Headlamp Protector, Lower LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
