Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 15 illustrations

Illustrations

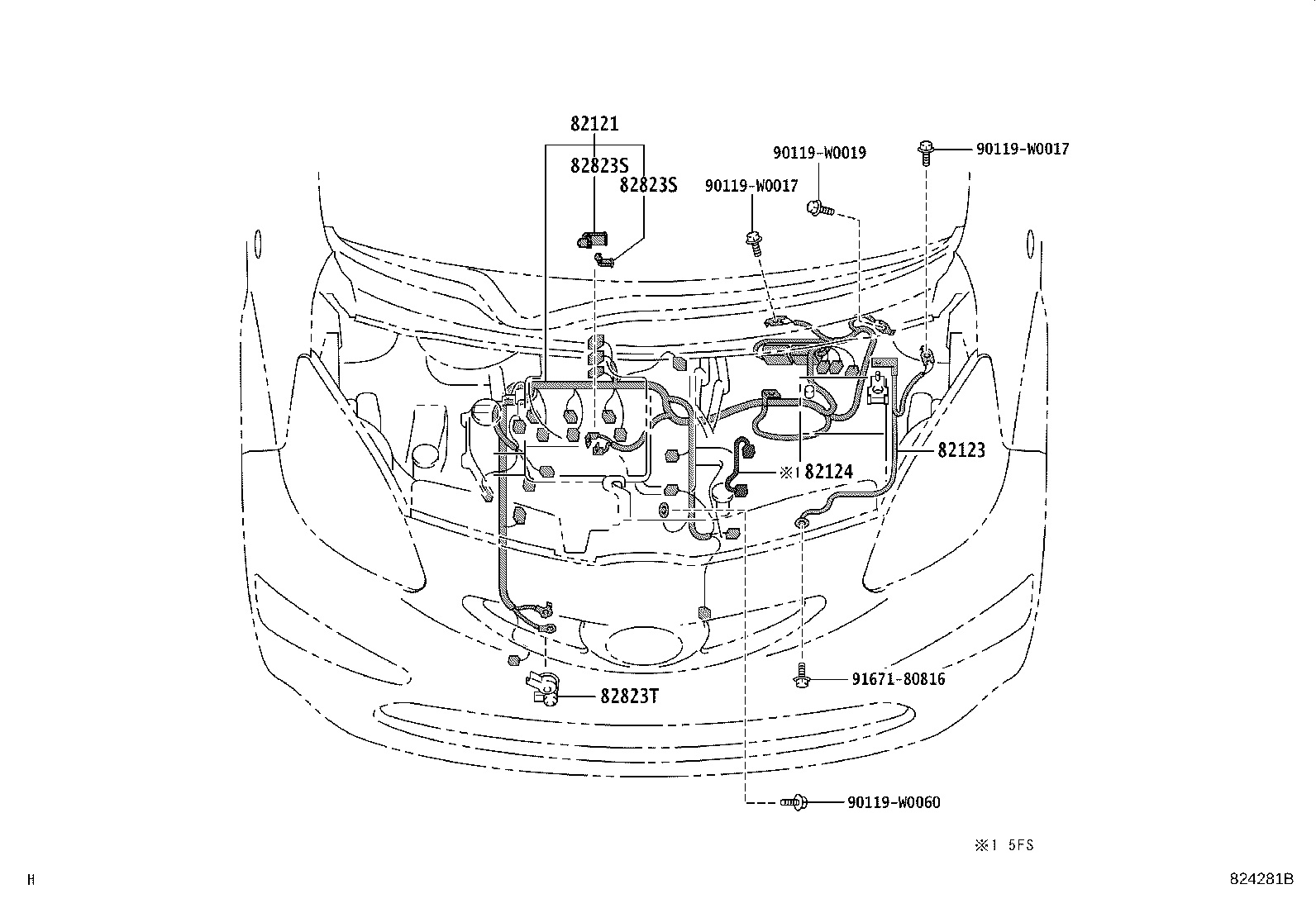

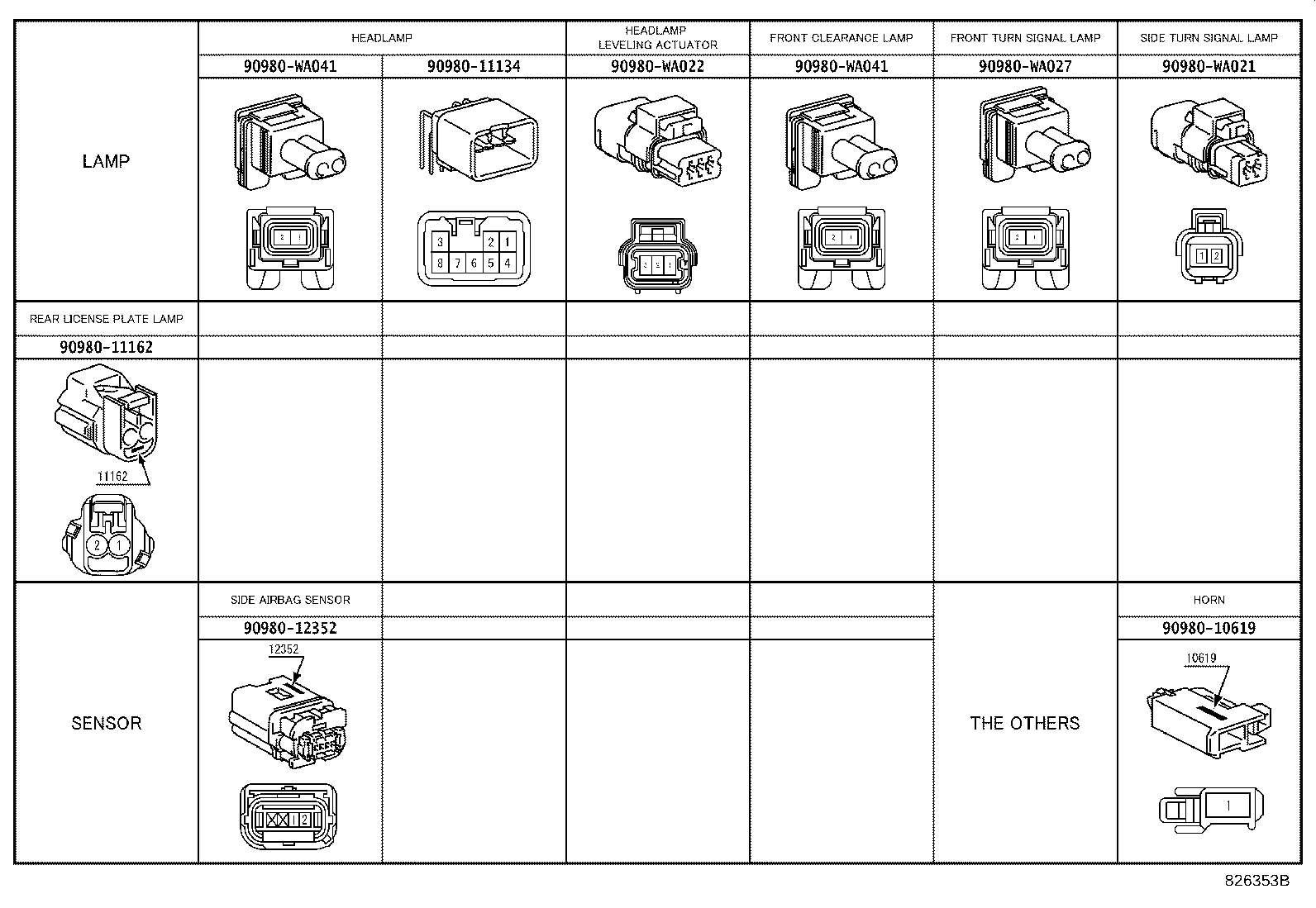

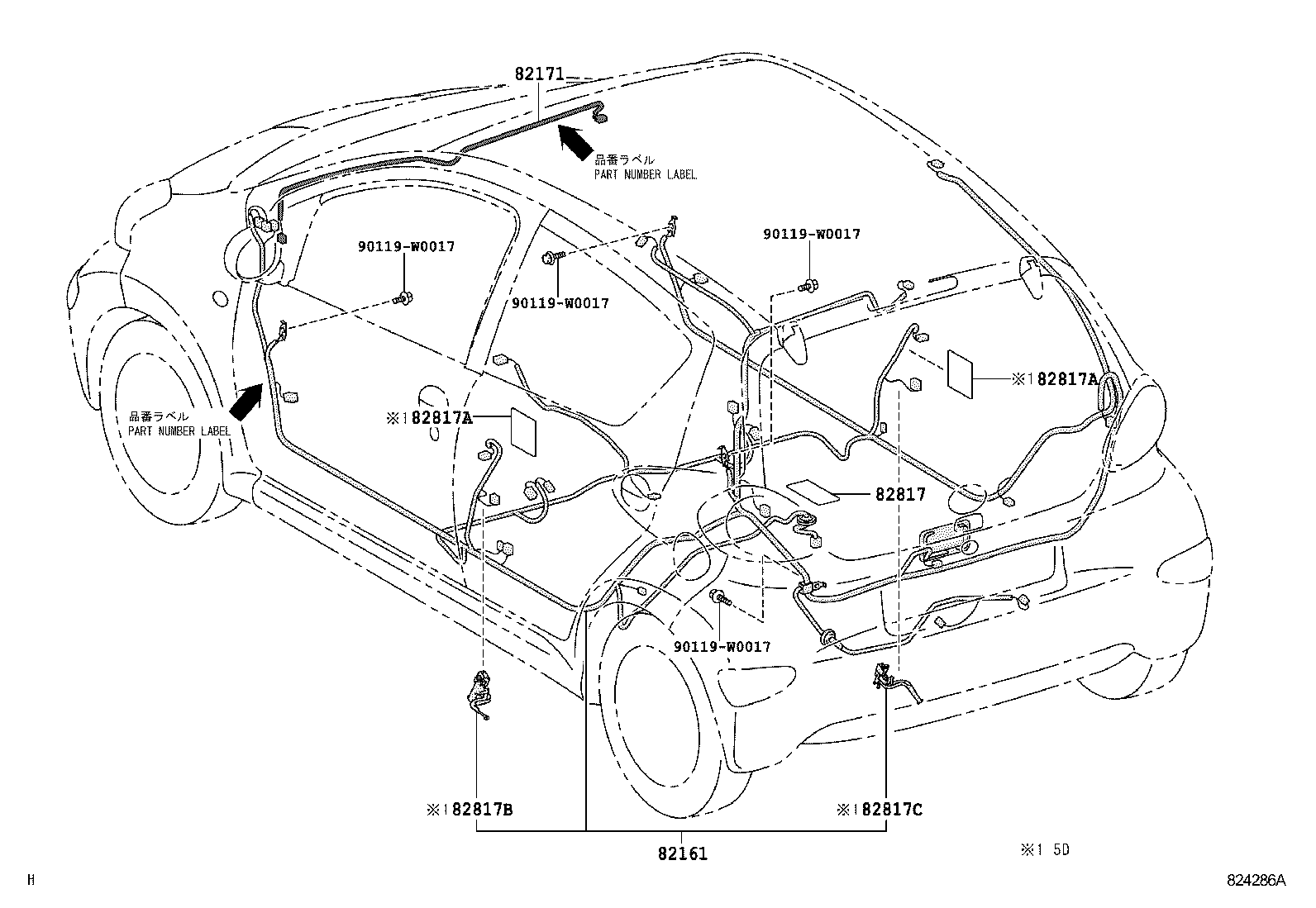

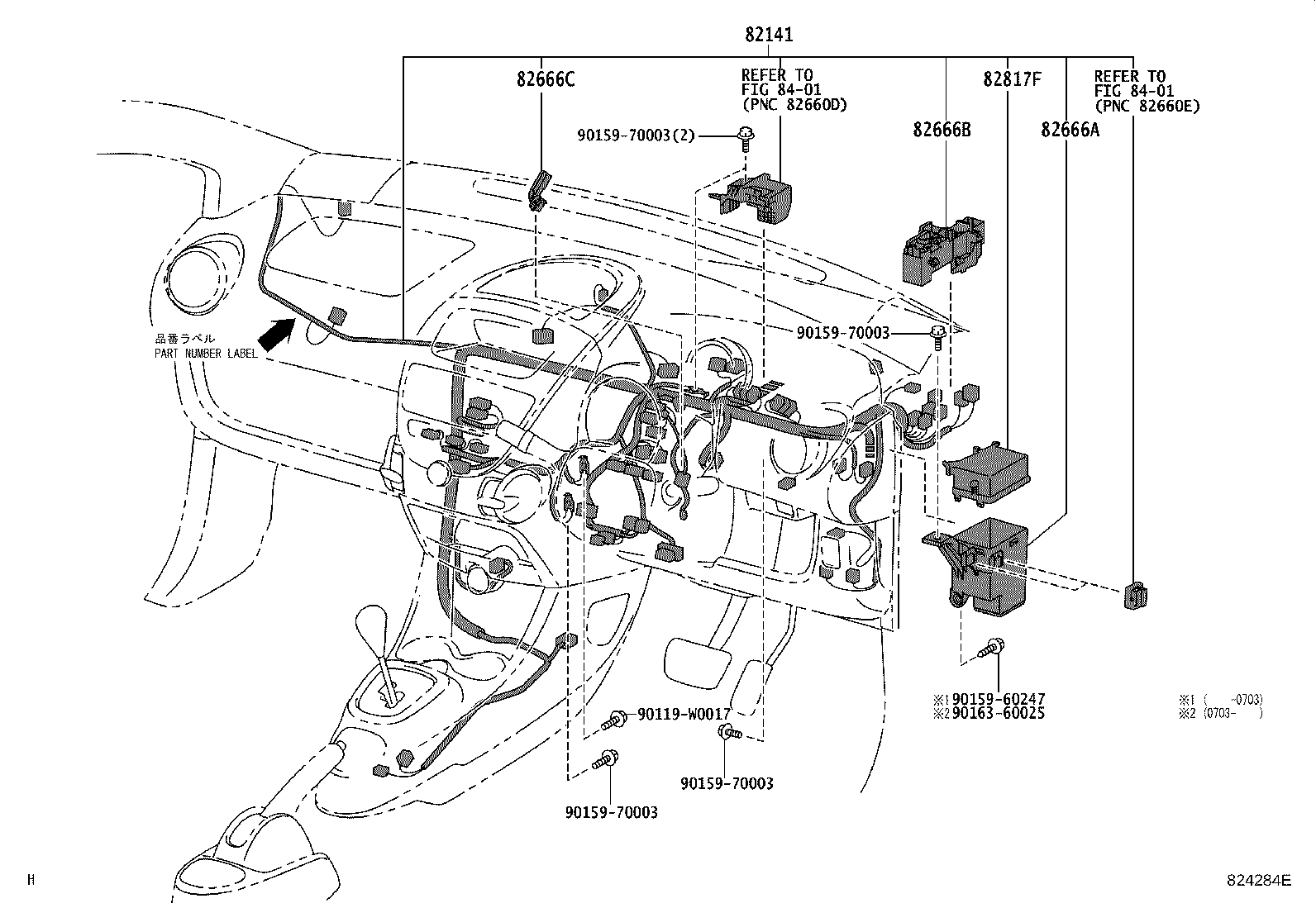

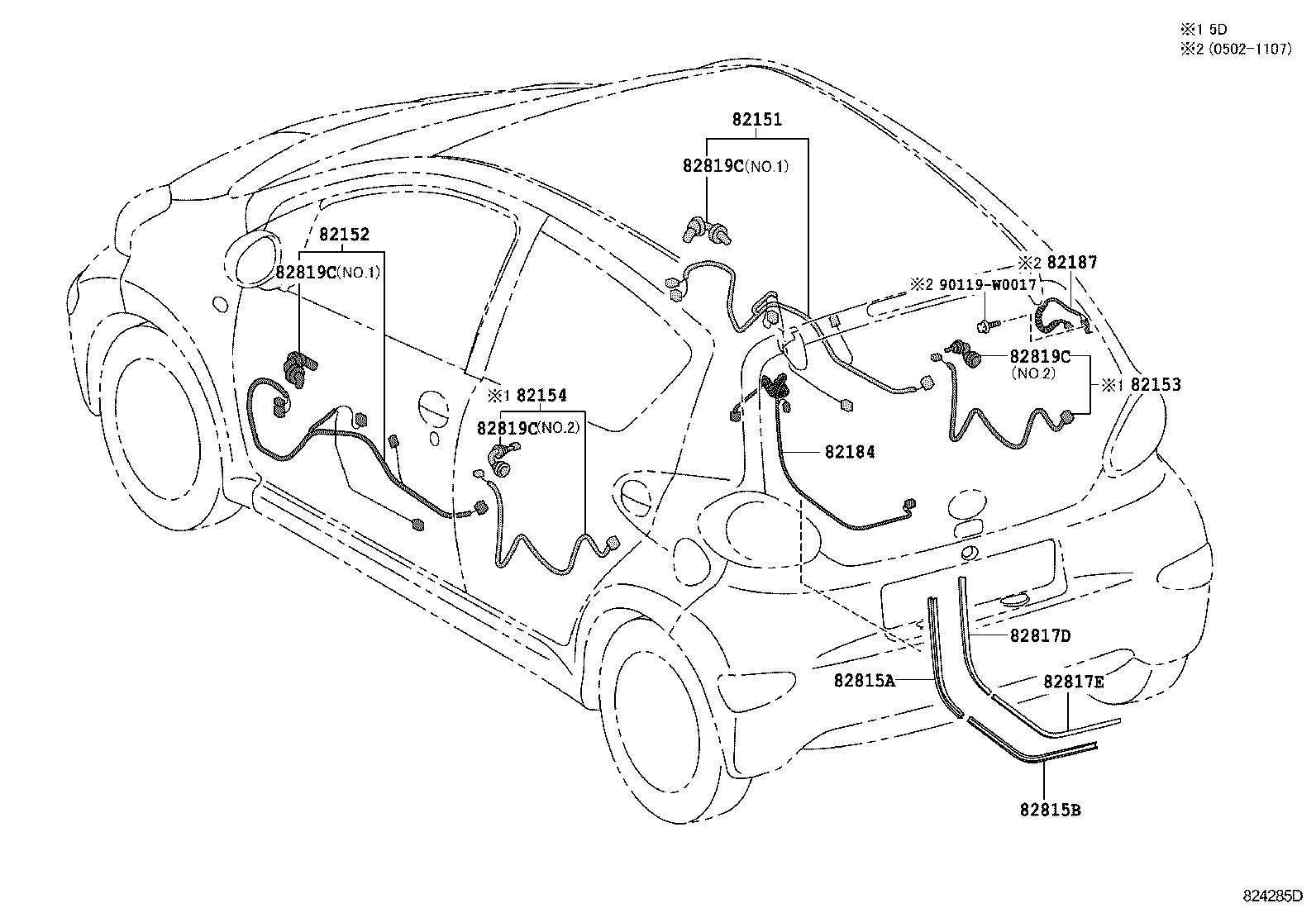

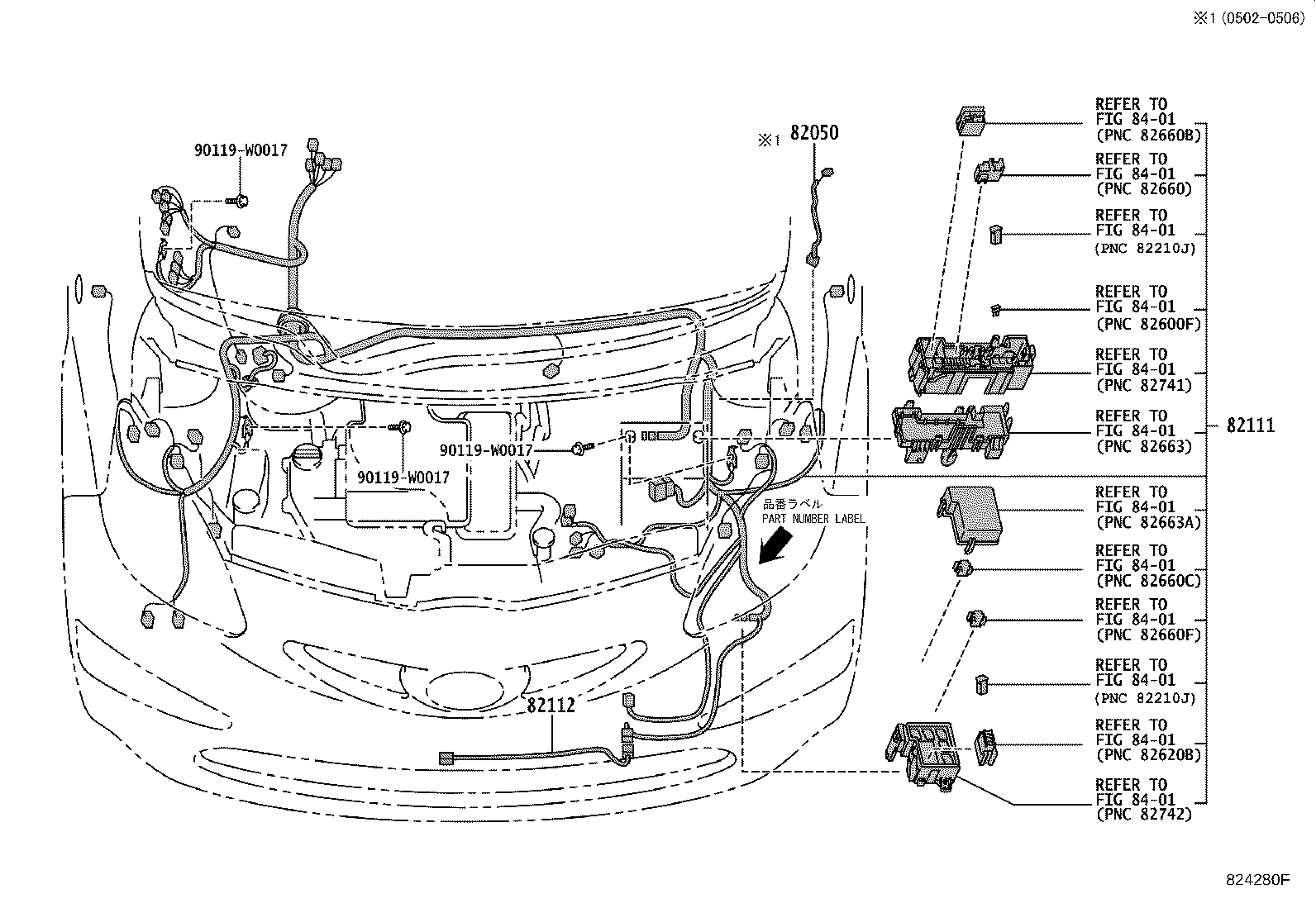

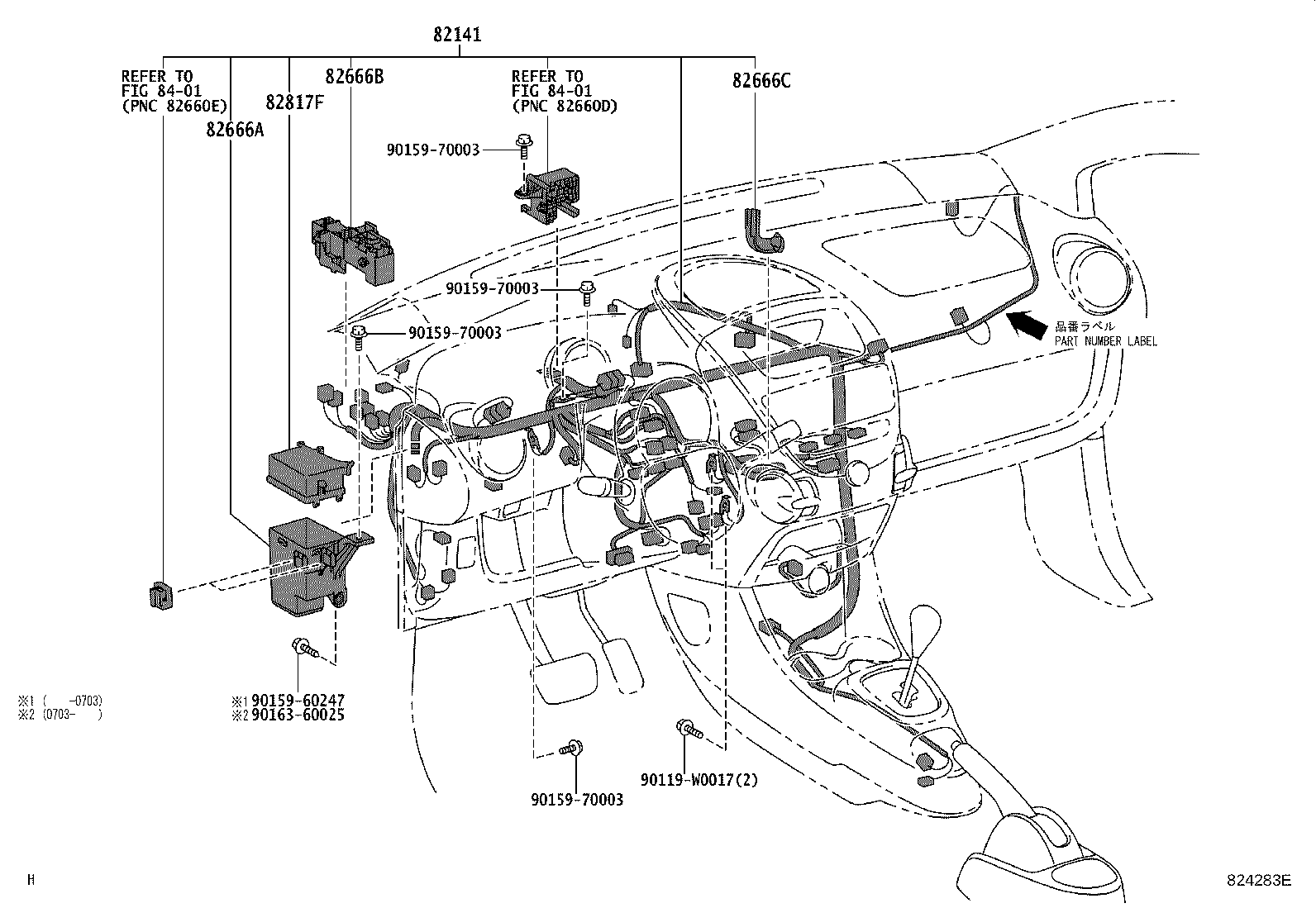

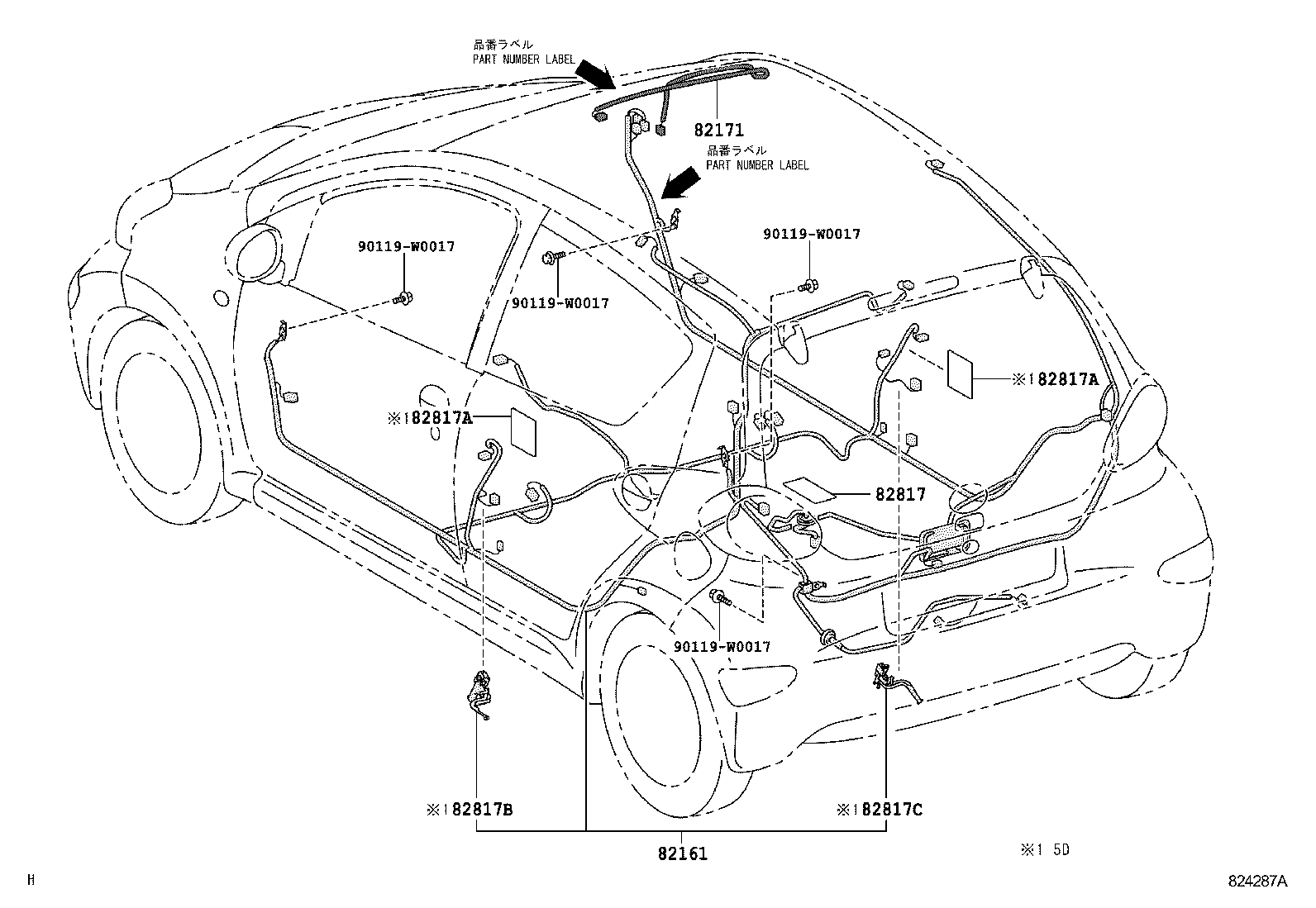

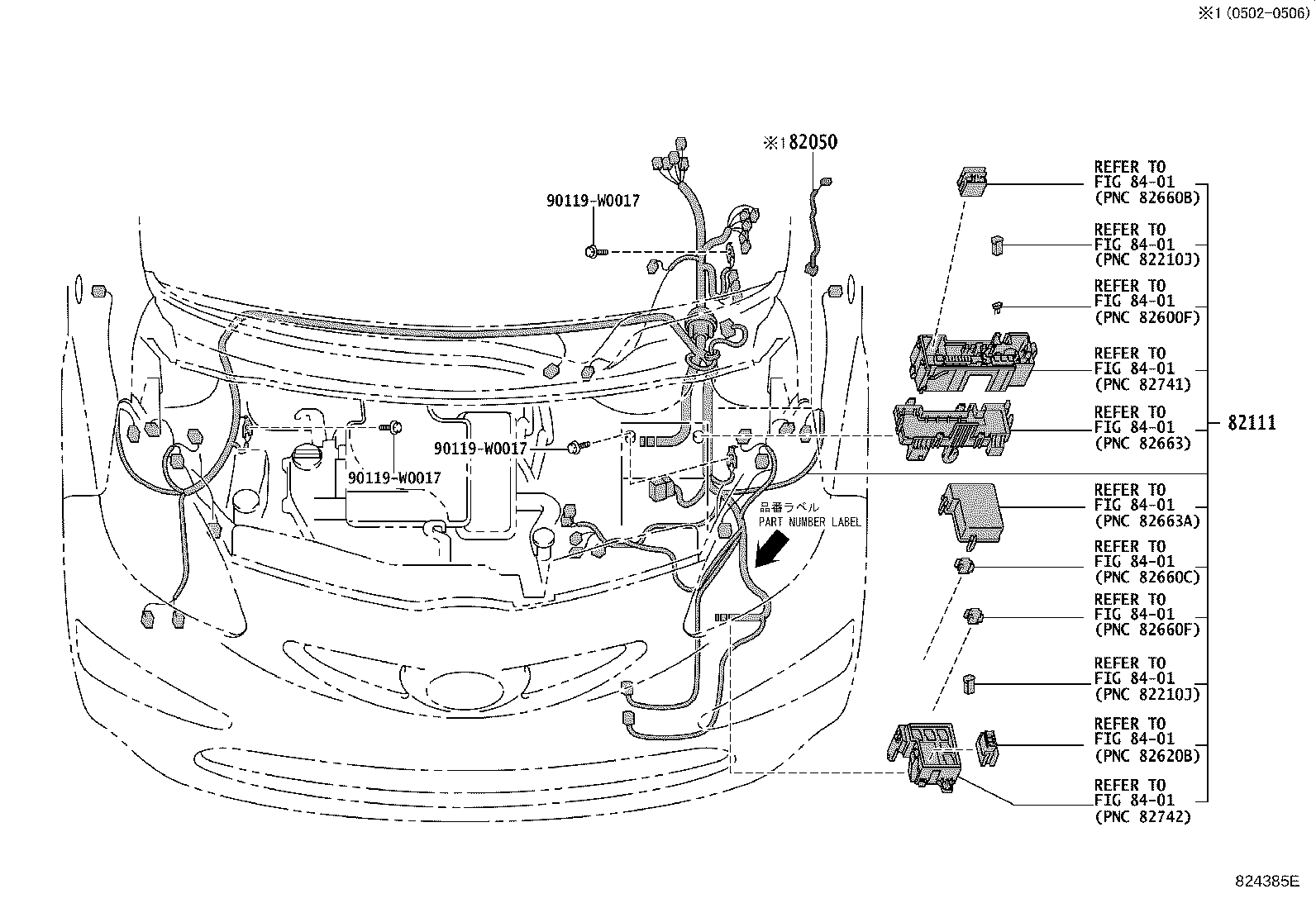

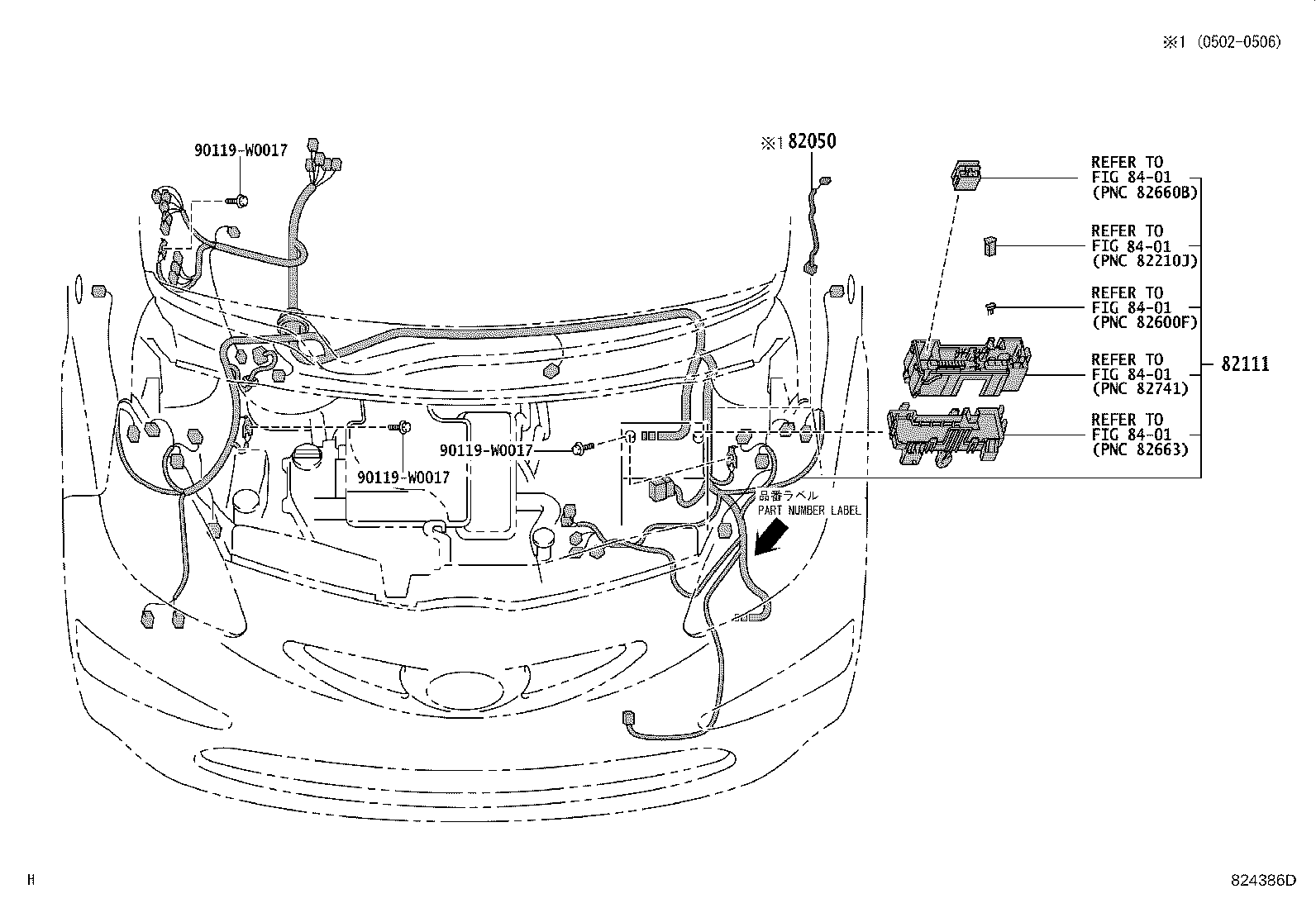

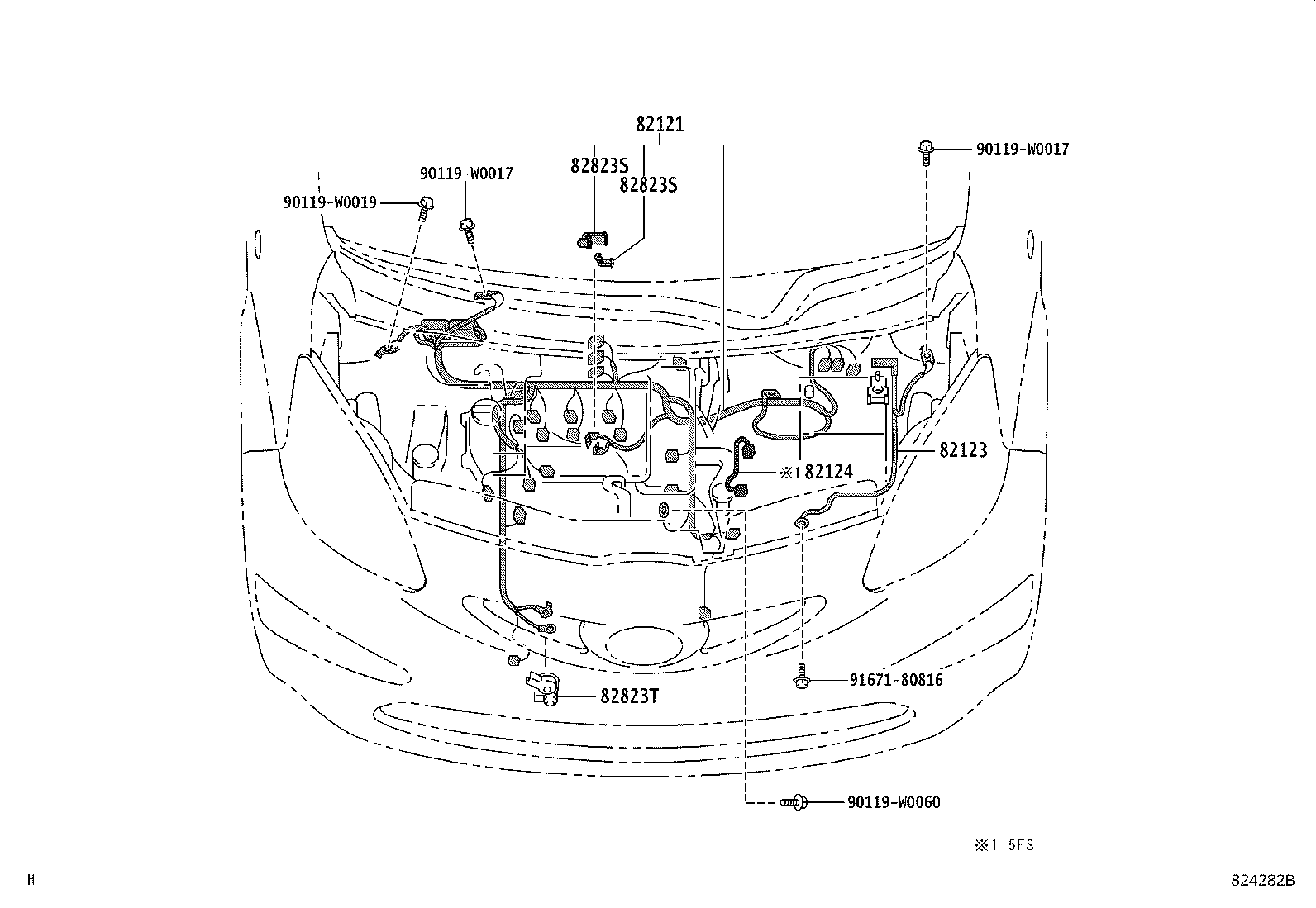

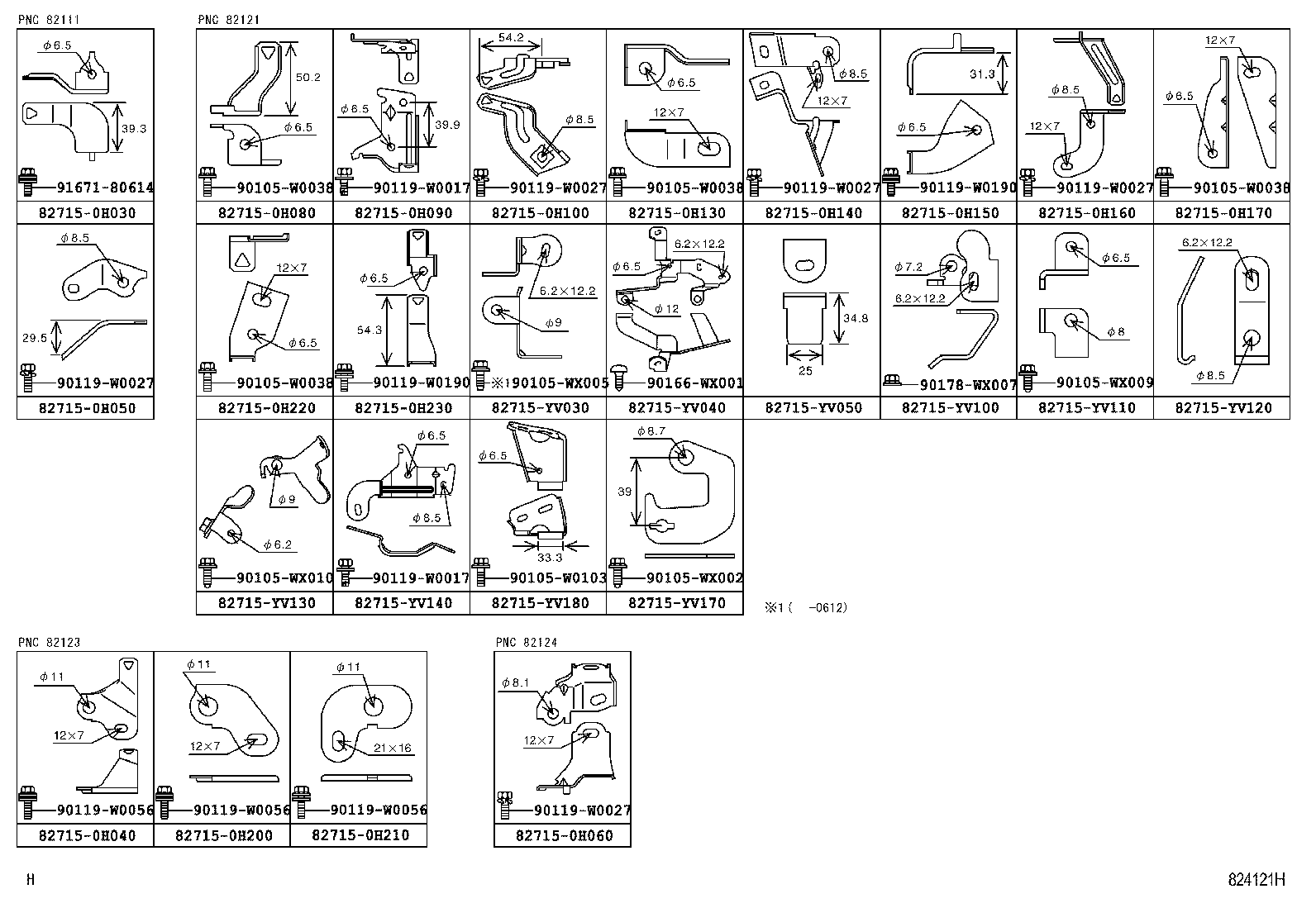

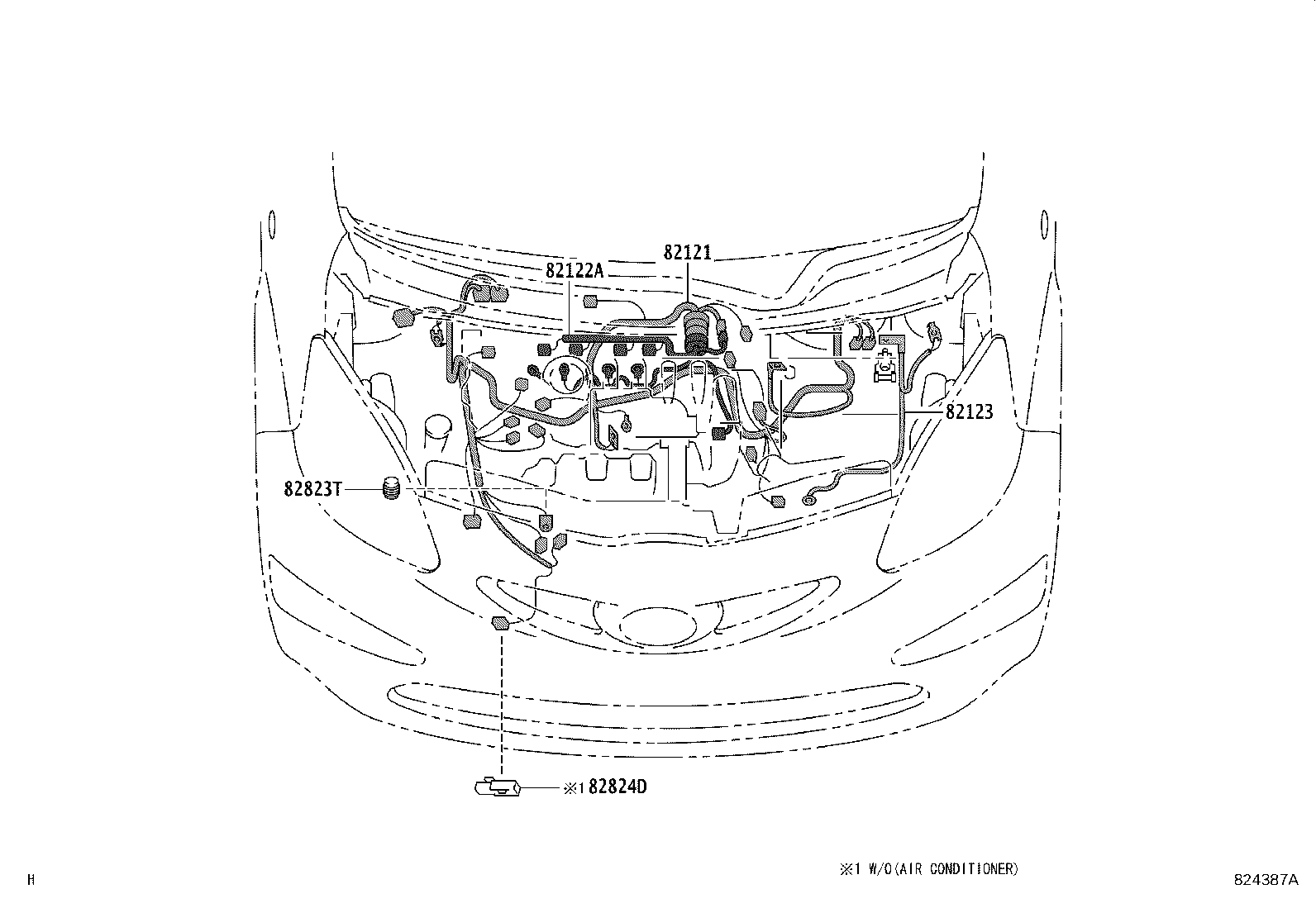

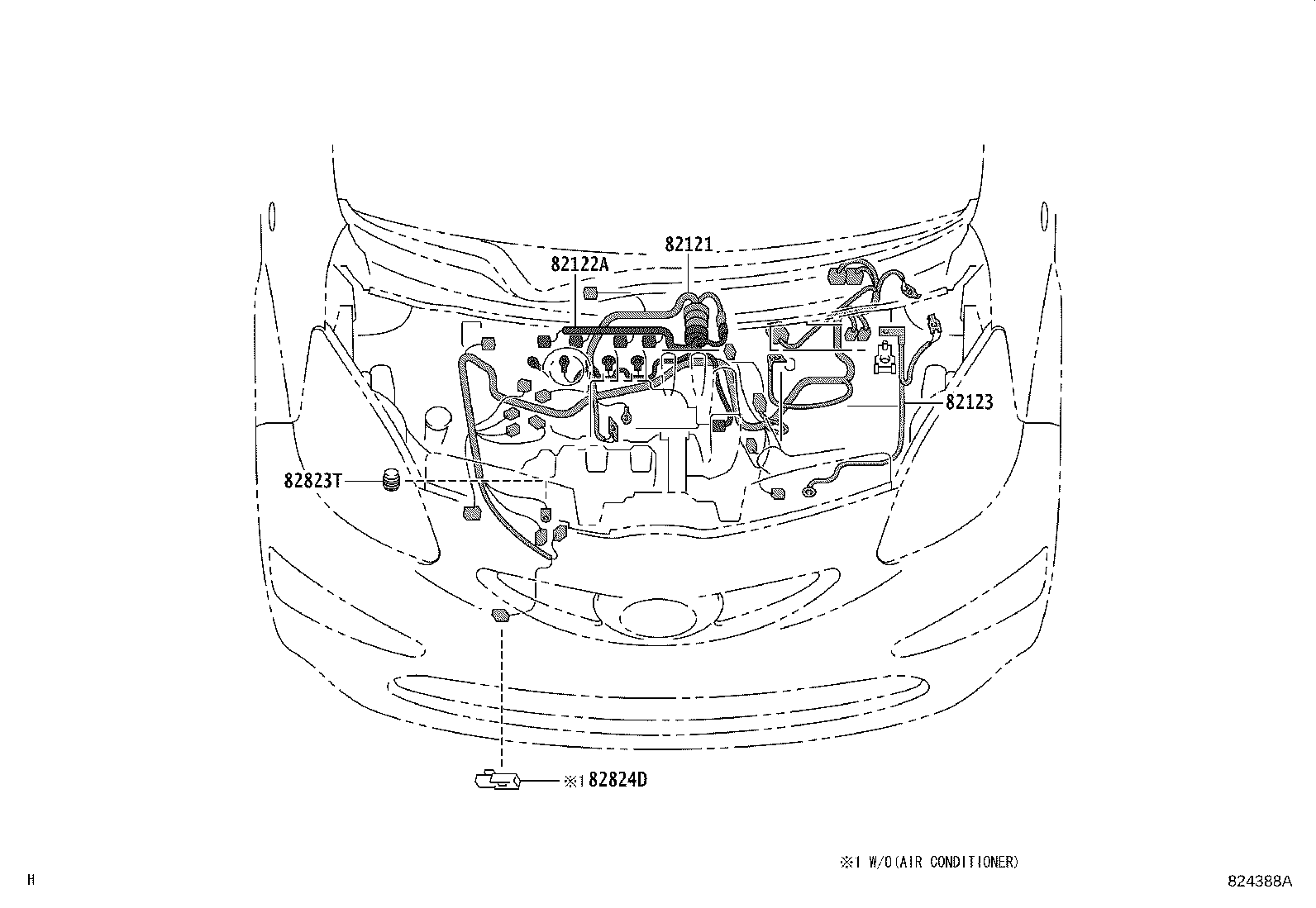

Figure 824279G 824279G 2005-02 → — Figure 824280F 824280F 2005-02 → — Figure 824385E 824385E 2005-05 → — Figure 824386D 824386D 2005-05 → — Figure 824282B 824282B 2005-02 → — Figure 824281B 824281B 2005-02 → — Figure 824387A 824387A 2005-05 → — Figure 824388A 824388A 2005-05 → — Figure 824283E 824283E 2005-02 → — Figure 824284E 824284E 2005-02 → — Figure 824285D 824285D 2005-02 → — Figure 824286A 824286A 2005-02 → — Figure 824287A 824287A 2005-02 → — Figure 824121H 824121H 2005-02 → — Figure 826353B 826353B 2005-02 → —

Part groups

PNCDescription
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122A Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82187 Wire, Rear Window, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82819C Grommet, Wiring Harness
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
