Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

67 part groups · 12 illustrations

Illustrations

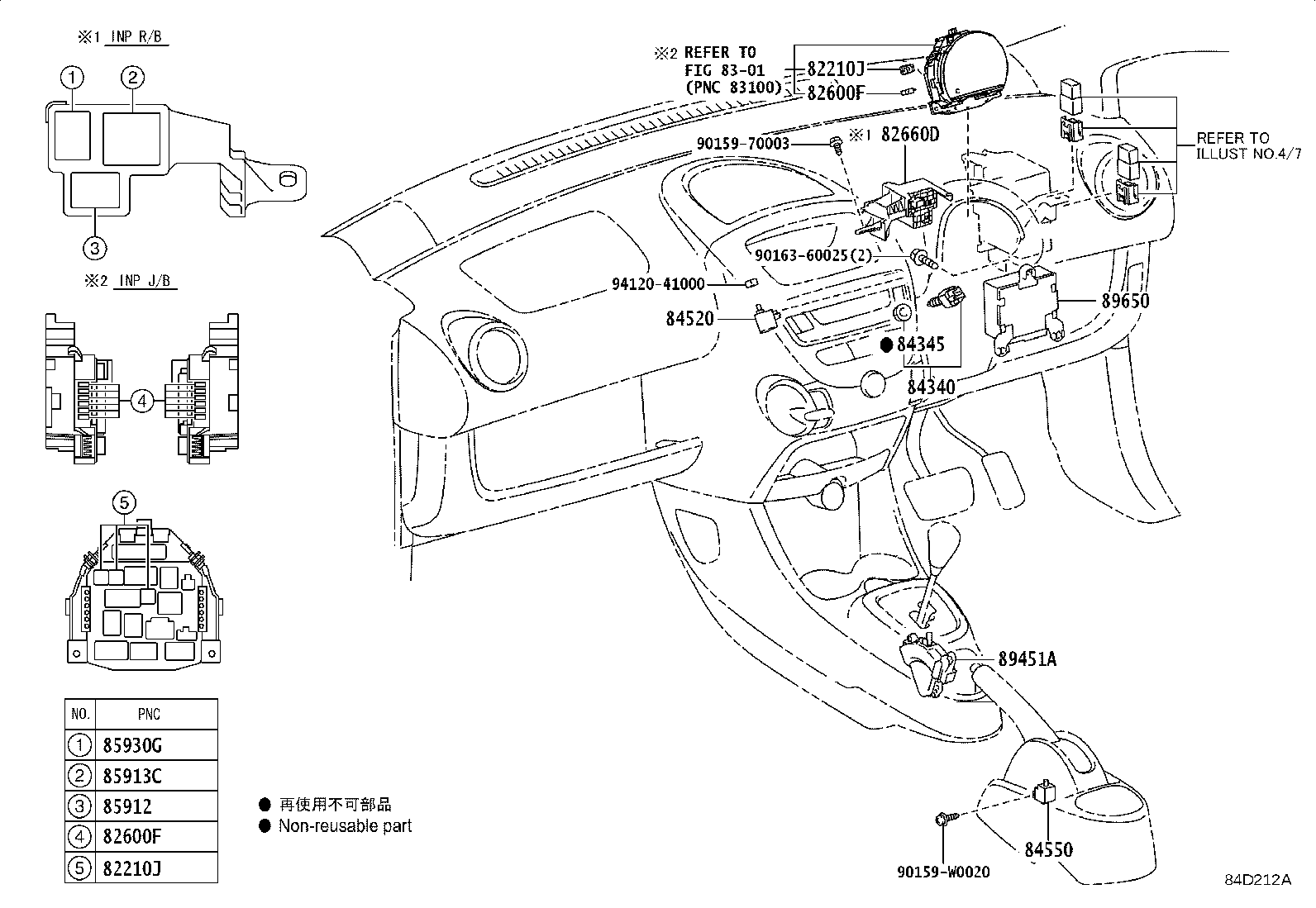

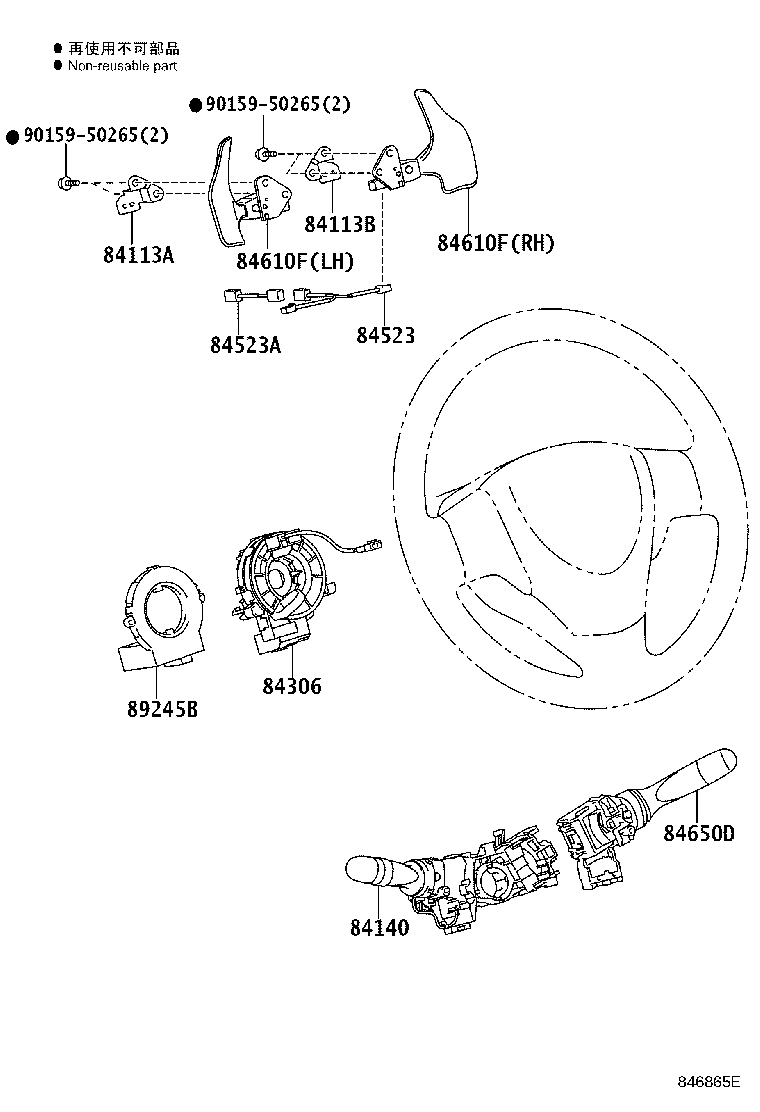

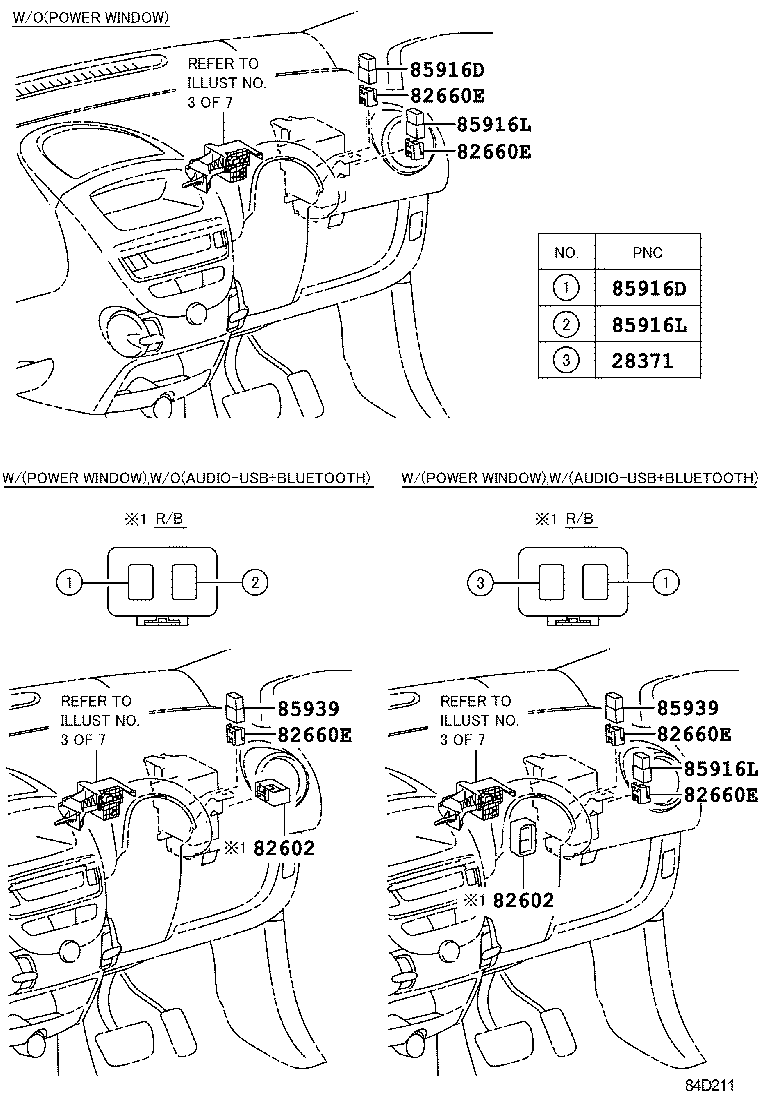

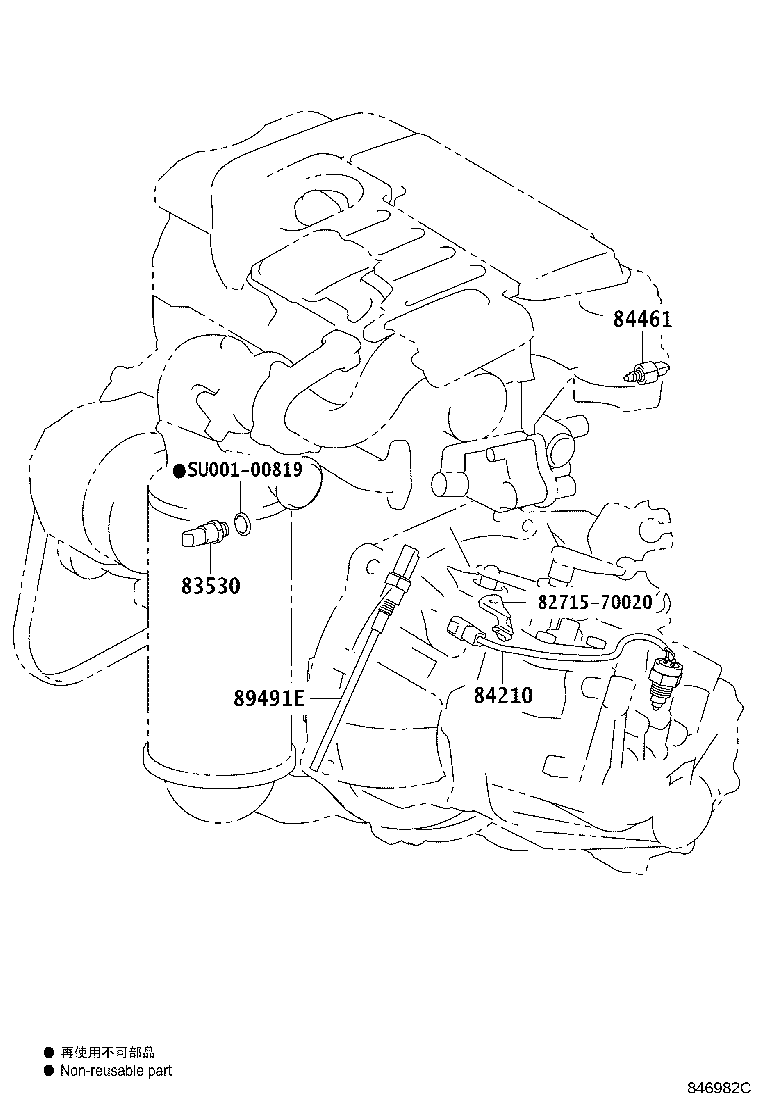

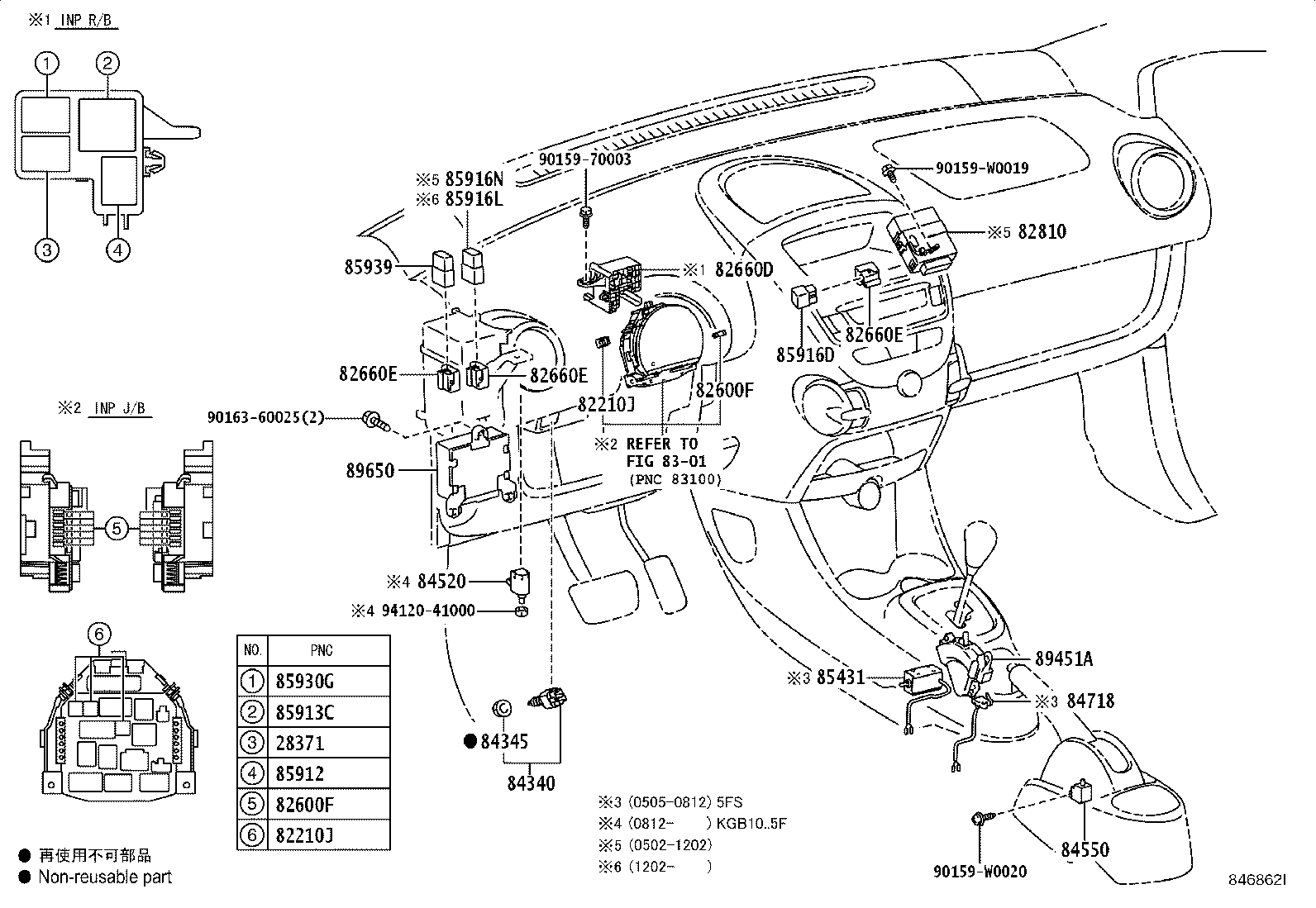

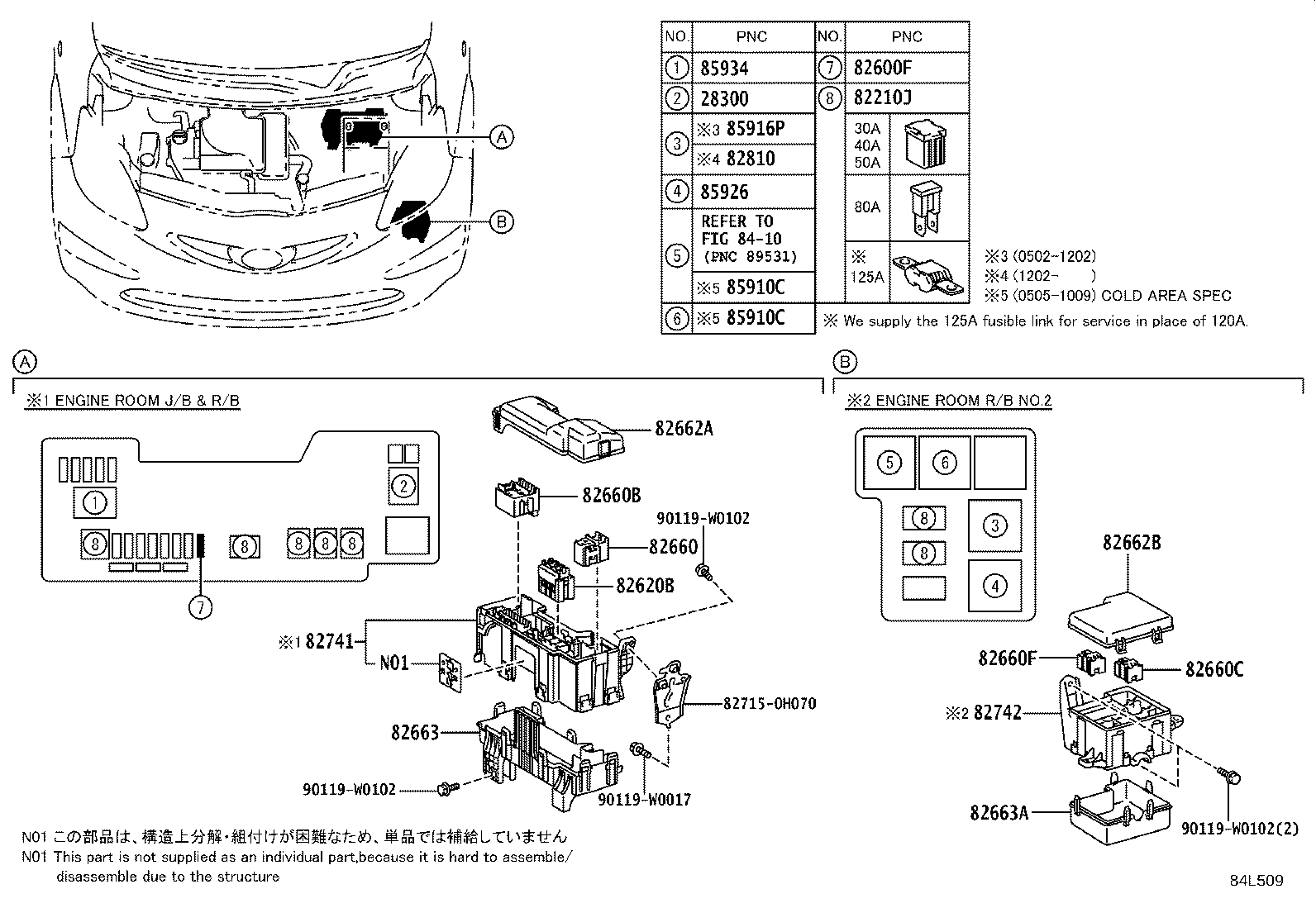

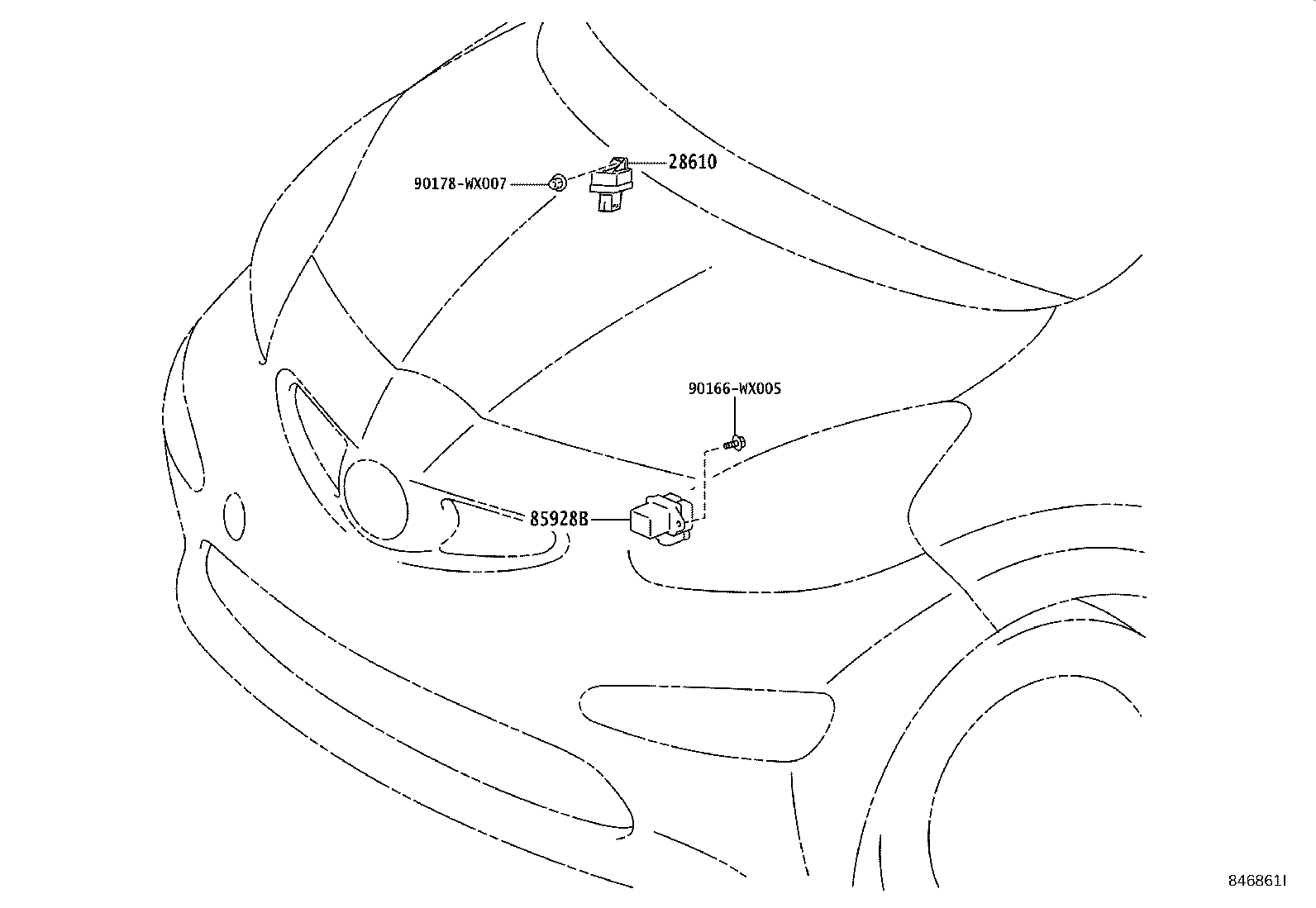

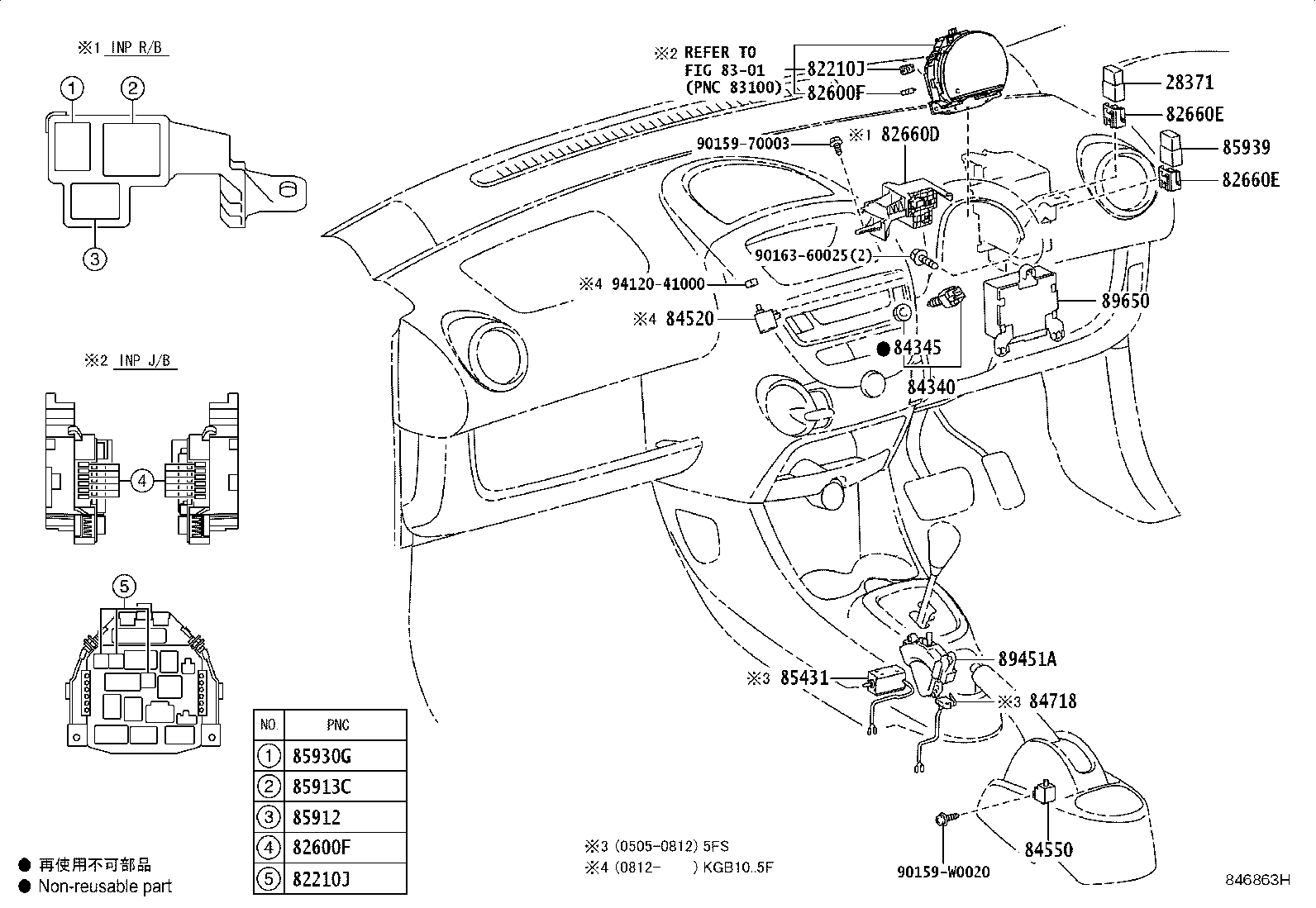

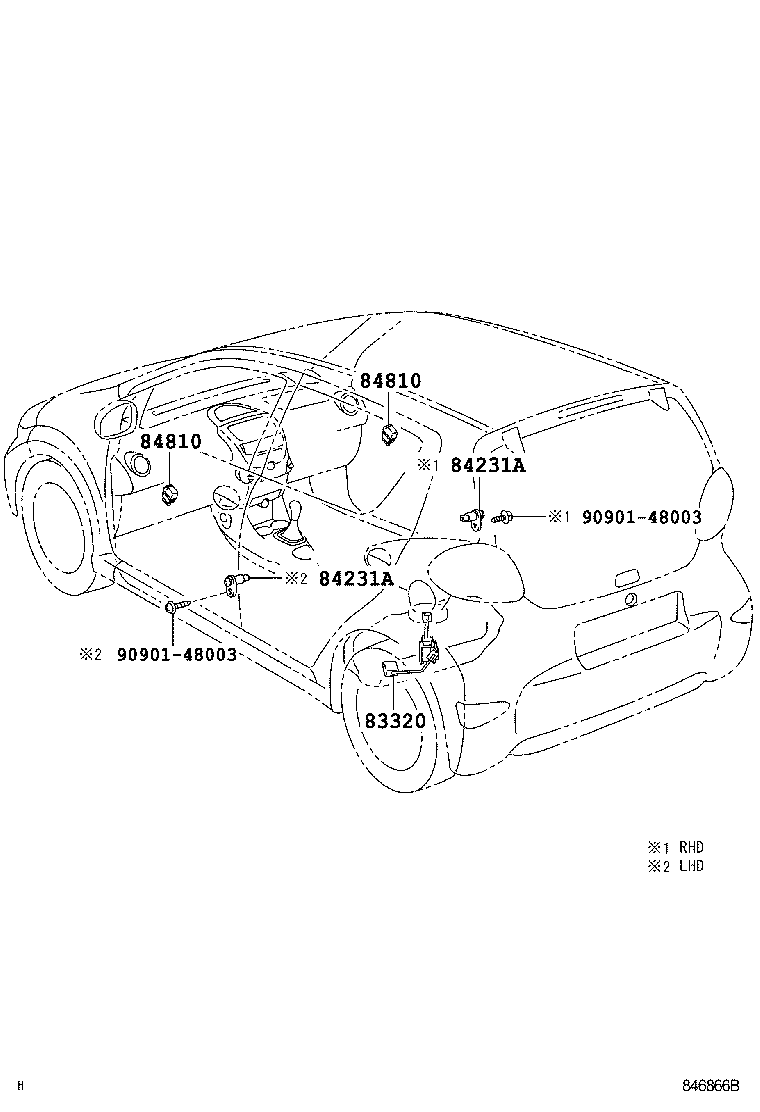

Figure 846613I 846613I 2005-02 → — Figure 846982C 846982C 2005-02 → — Figure 846861I 846861I 2005-02 → — Figure 84L509 84L509 2005-02 → — Figure 846862I 846862I 2005-02 → — Figure 846863H 846863H 2005-02 → 2012-02 Figure 84D212A 84D212A 2012-02 → — Figure 84D211 84D211 2012-02 → — Figure 846864A 846864A 2005-02 → — Figure 846867A 846867A 2005-02 → — Figure 846865E 846865E 2005-02 → — Figure 846866B 846866B 2005-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
55538G Cover, Cooler Switch Hole
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210J Fusible Link
82600F Fuse, Fuse Block
82602 Block Sub-assy, Relay
82620B Block Assy, Fusible Link
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84461 Switch, Level Warning
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660C Switch, Cooler
84718 Switch, Transmission Shift Main
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
85431 Solenoid, Shift Lock
85530E Socket Assy, Power Outlet, NO.3
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85928B Resistor, Cooling Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85939 Relay, Power Window
89245B Sensor, Steering
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89491E Sensor, Engine Oil Level & Temperature
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
