Toyota Aygo

2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe

Supported model Data version 2014-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

3 part groups · 3 illustrations

Illustrations

862411 2005-02 → 2012-02

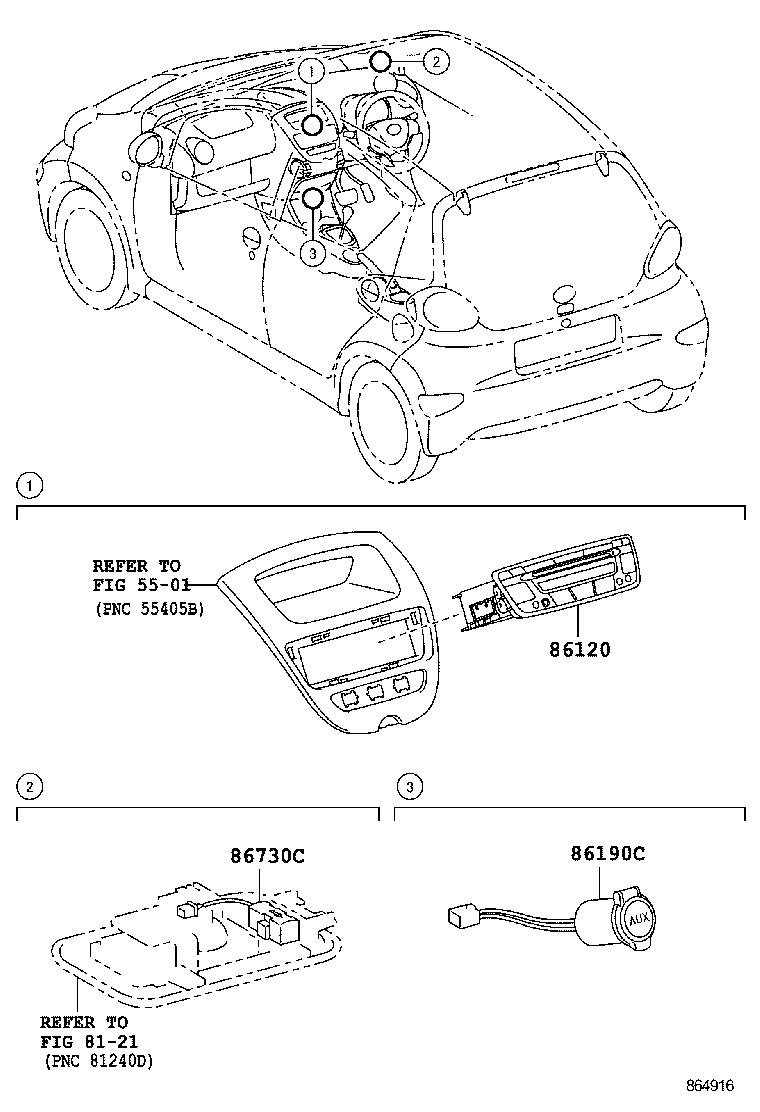

864916 2012-02 → —

864921 2012-02 → —

Part groups

PNC	Description
86120	Receiver Assy, Radio
86190C	Adapter Assy, Stereo Jack, NO.1
86730C	Microphone Assy, Telephone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
