Toyota Aygo
2005-02 → 2014-05 · chassis KGB10,WNB10 · catalogue 101510 · Europe
Supported model
Data version 2014-05

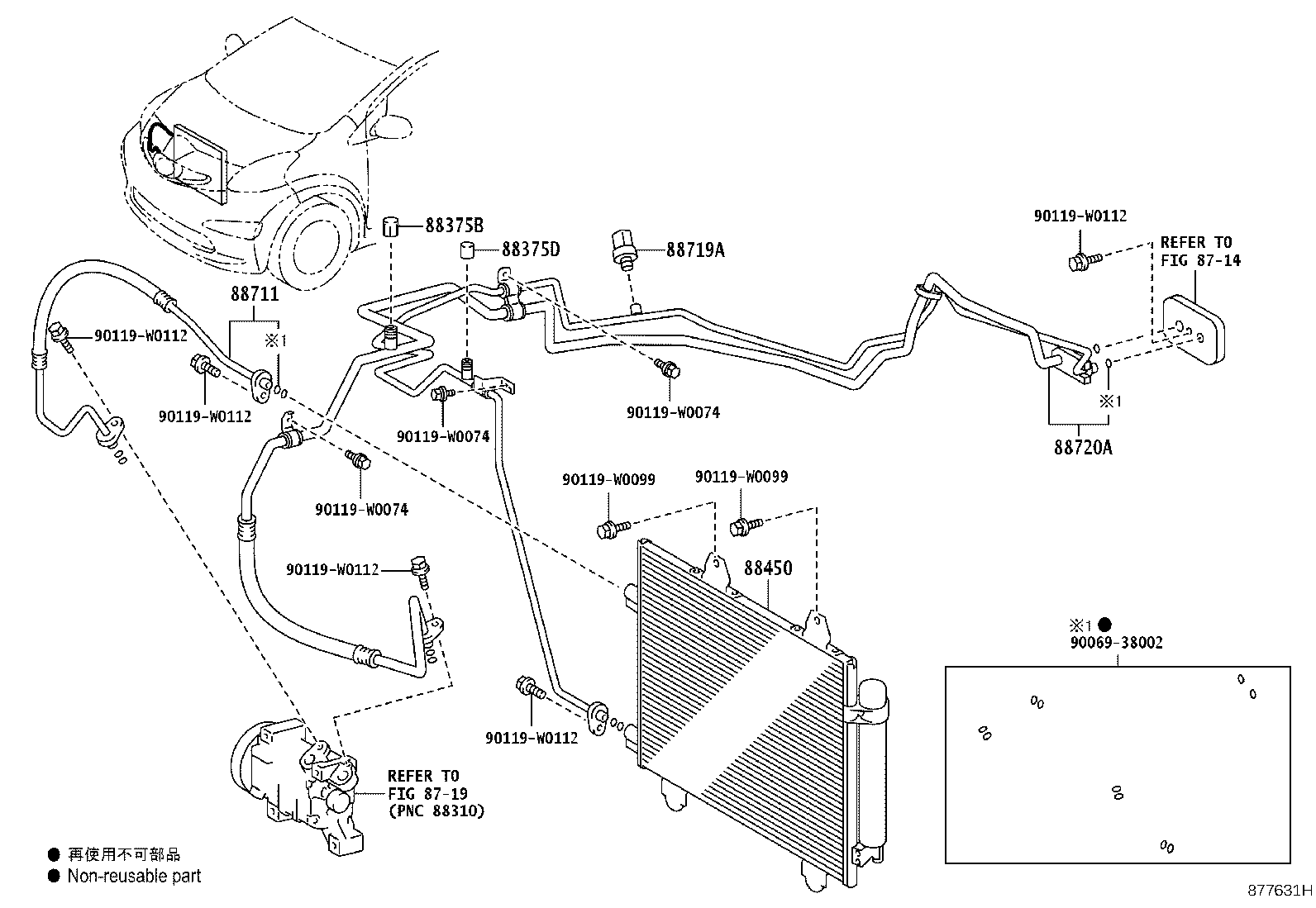

Heating & Air Conditioning - Cooler Piping
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88450 | Condenser Assy, W/Receiver |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88719A | Sensor, Air Conditioner Pressure |
| 88720A | Hose & Accessory, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
