Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 119026D 8716 — not listed in this catalogue 1105 — not listed in this catalogue SU00100619 — not listed in this catalogue SU00101009 — not listed in this catalogue SU00101124 — not listed in this catalogue SU00101124 — not listed in this catalogue 11201 — COVER SUB-ASSY, CYLINDER HEAD (8 parts) 12108 — CAP SUB-ASSY, OIL FILLER (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (5 parts) 11101 — HEAD SUB-ASSY, CYLINDER (5 parts) 11101G — UNION(FOR CYLINDER HEAD) (1 parts) 11101M — BALL NO.1(FOR CYLINDER HEAD) (1 parts) 11101M — BALL NO.1(FOR CYLINDER HEAD) (1 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (9 parts) 11115 — GASKET, CYLINDER HEAD (4 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (4 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (4 parts) 11101E — SENSOR, CAM POSITION (4 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (9 parts)

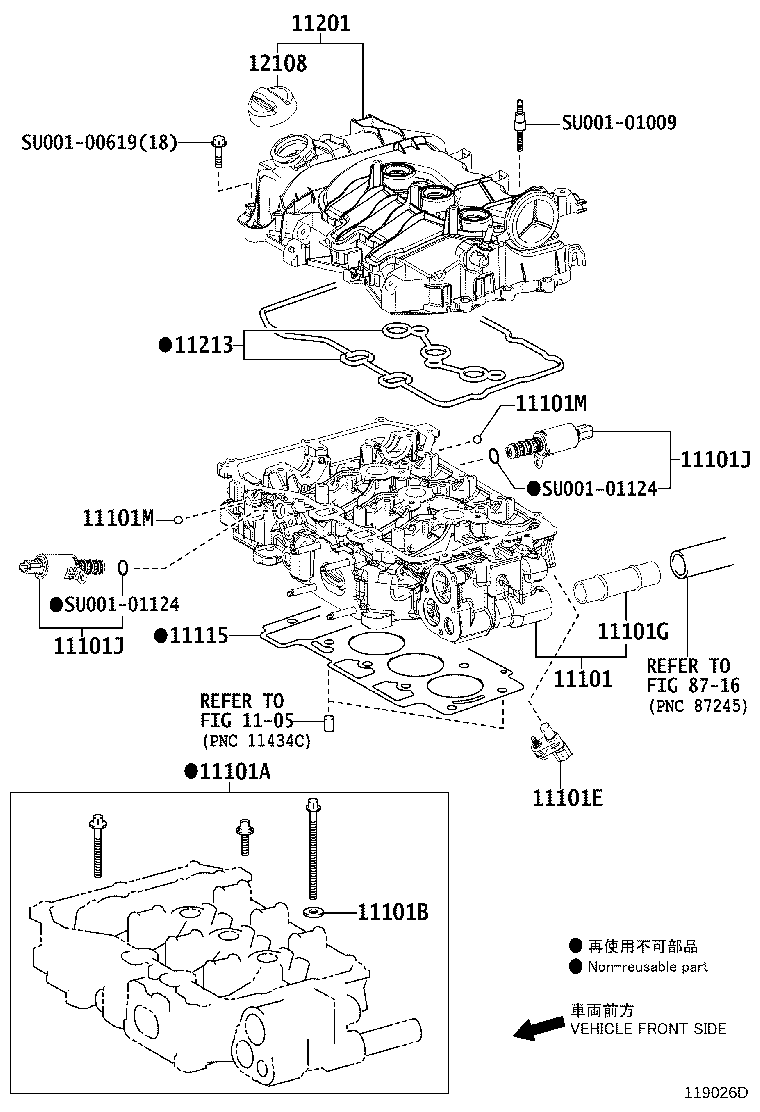

119026D · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-0Q030 Head Sub-assy, Cylinder
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01002 Head Sub-assy, Cylinder
2014-05 → 2016-08 ended
1PP PAB40 —
SU001-01182 Head Sub-assy, Cylinder
2016-08 → —
1PP PAB40 —
11101-0Q040 Head Sub-assy, Cylinder
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11101-0Q040 Head Sub-assy, Cylinder
2018-05 → —
1KRFE KGB40 5D —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01004 Bolt(FOR CYLINDER HEAD SET)
2014-05 → —
1PP PAB40 —
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2018-05 → —
1KRFE KGB40 5D —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01005 Washer, Plate(FOR CYLINDER HEAD SET)
2014-05 → —
1PP PAB40 —
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2018-05 → —
1KRFE KGB40 5D —
11101E — Sensor, Cam Position
90919-W5003 Sensor, Cam Position
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01115 Sensor, Cam Position
2014-05 → —
1PP PAB40 —
90919-W5003 Sensor, Cam Position
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90919-W5003 Sensor, Cam Position
2018-05 → —
1KRFE KGB40 5D —
11101G — Union(FOR CYLINDER HEAD)
SU001-01178 Union(FOR CYLINDER HEAD)
2014-05 → —
1PP PAB40 —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-0Q020 note Valve Assy, Camshaft Timing Oil Control
2014-05 → 2015-06 ended
1KRFE KGB40 —
15330-0Q020 Valve Assy, Camshaft Timing Oil Control
2015-06 → 2015-09 ended
1KRFE KGB40 —
15330-0Q021 Valve Assy, Camshaft Timing Oil Control
2015-10 → 2018-05 ended
1KRFE KGB40 —
15330-40030 note Valve Assy, Camshaft Timing Oil Control
2014-05 → 2015-06 ended
1KRFE KGB40 —
SU001-01120 Valve Assy, Camshaft Timing Oil Control
2014-05 → —
1PP PAB40 —
15330-0Q021 note Valve Assy, Camshaft Timing Oil Control
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15330-0Q021 note Valve Assy, Camshaft Timing Oil Control
2018-05 → —
1KRFE KGB40 5D —
15330-0Q030 note Valve Assy, Camshaft Timing Oil Control
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15330-0Q030 note Valve Assy, Camshaft Timing Oil Control
2018-05 → —
1KRFE KGB40 5D —
11101M — Ball NO.1(FOR CYLINDER HEAD)
SU001-A0046 Ball NO.1(FOR CYLINDER HEAD)
2014-05 → —
1PP PAB40 —
11115 — Gasket, Cylinder Head
11115-40070 Gasket, Cylinder Head
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01003 Gasket, Cylinder Head
2014-05 → —
1PP PAB40 —
11115-40090 Gasket, Cylinder Head
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11115-40090 Gasket, Cylinder Head
2018-05 → —
1KRFE KGB40 5D —
11201 — Cover Sub-assy, Cylinder Head
11210-0Q020 Cover Sub-assy, Cylinder Head
2014-05 → 2017-07 ended
1KRFE KGB40 —
11210-0Q021 Cover Sub-assy, Cylinder Head
2017-08 → 2018-05 ended
1KRFE KGB40 —
SU001-01006 Cover Sub-assy, Cylinder Head
2014-05 → 2016-04 ended
1PP PAB40 —
SU001-01183 Cover Sub-assy, Cylinder Head
2016-04 → —
1PP PAB40 —
11210-0Q030 Cover Sub-assy, Cylinder Head
2018-05 → 2020-03 ended
1KRFE KGB40 —
11210-0Q040 Cover Sub-assy, Cylinder Head
2020-04 → 2021-04 ended
1KRFE KGB40 3D —
11210-0Q040 Cover Sub-assy, Cylinder Head
2020-04 → 2022-06 ended
1KRFE KGB40 5D —
11210-0Q041 Cover Sub-assy, Cylinder Head
2022-07 → —
1KRFE KGB40 5D —
11213 — Gasket, Cylinder Head Cover
11213-0Q020 Gasket, Cylinder Head Cover
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01008 Gasket, Cylinder Head Cover
2014-05 → —
1PP PAB40 —
11213-0Q030 Gasket, Cylinder Head Cover
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11213-0Q030 Gasket, Cylinder Head Cover
2018-05 → 2022-06 ended
1KRFE KGB40 5D —
11213-0Q031 Gasket, Cylinder Head Cover
2022-07 → —
1KRFE KGB40 5D —
12108 — Cap Sub-assy, Oil Filler
12180-38010 Cap Sub-assy, Oil Filler
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01007 Cap Sub-assy, Oil Filler
2014-05 → —
1PP PAB40 —
12180-38010 Cap Sub-assy, Oil Filler
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12180-38010 Cap Sub-assy, Oil Filler
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
