Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

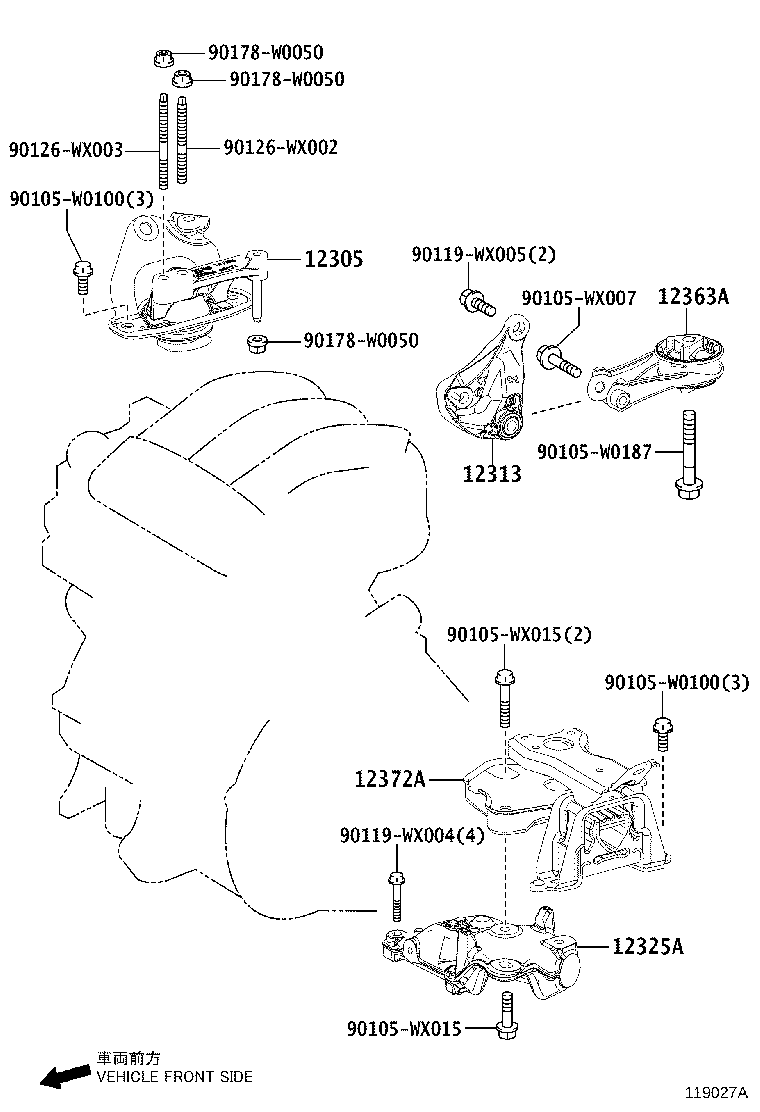

Exploded illustration 119027A 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (4 parts) 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (5 parts) 12363A — ROD, ENGINE MOVING CONTROL (4 parts) 90119WX005 — not listed in this catalogue 90119WX004 — not listed in this catalogue 90105W0100 — not listed in this catalogue 90105WX015 — not listed in this catalogue 90105WX015 — not listed in this catalogue 90105W0100 — not listed in this catalogue 90126WX003 — not listed in this catalogue 90126WX002 — not listed in this catalogue 90178W0050 — not listed in this catalogue 90178W0050 — not listed in this catalogue 90178W0050 — not listed in this catalogue 90105WX007 — not listed in this catalogue 90105W0187 — not listed in this catalogue 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (4 parts) 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (4 parts)
119027A · 5 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-0Q031 Insulator Sub-assy, Engine Mounting, RH
2014-05 → 2018-02 ended
1KRFE KGB40 —
12305-0Q032 Insulator Sub-assy, Engine Mounting, RH
2018-03 → 2018-05 ended
1KRFE KGB40 —
12305-YV020 Insulator Sub-assy, Engine Mounting, RH
2014-05 → —
1PP PAB40 —
12305-0Q040 Insulator Sub-assy, Engine Mounting, RH
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12305-0Q040 Insulator Sub-assy, Engine Mounting, RH
2018-05 → —
1KRFE KGB40 5D —
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-0Q010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
12313-YV020 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2014-05 → —
1PP PAB40 —
12313-0Q010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12313-0Q010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2018-05 → —
1KRFE KGB40 5D —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-0Q041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
12325-YV020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-05 → —
1PP PAB40 —
12325-0Q041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12325-0Q041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-05 → —
1KRFE KGB40 5D —
12363A — Rod, Engine Moving Control
12363-0Q040 Rod, Engine Moving Control
2014-05 → 2018-05 ended
1KRFE KGB40 —
12363-YV020 Rod, Engine Moving Control
2014-05 → —
1PP PAB40 —
12363-0Q040 Rod, Engine Moving Control
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12363-0Q040 Rod, Engine Moving Control
2018-05 → —
1KRFE KGB40 5D —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-0Q051 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
12372-YV030 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-05 → —
1PP PAB40 —
12372-0Q051 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12372-0Q051 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
