Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

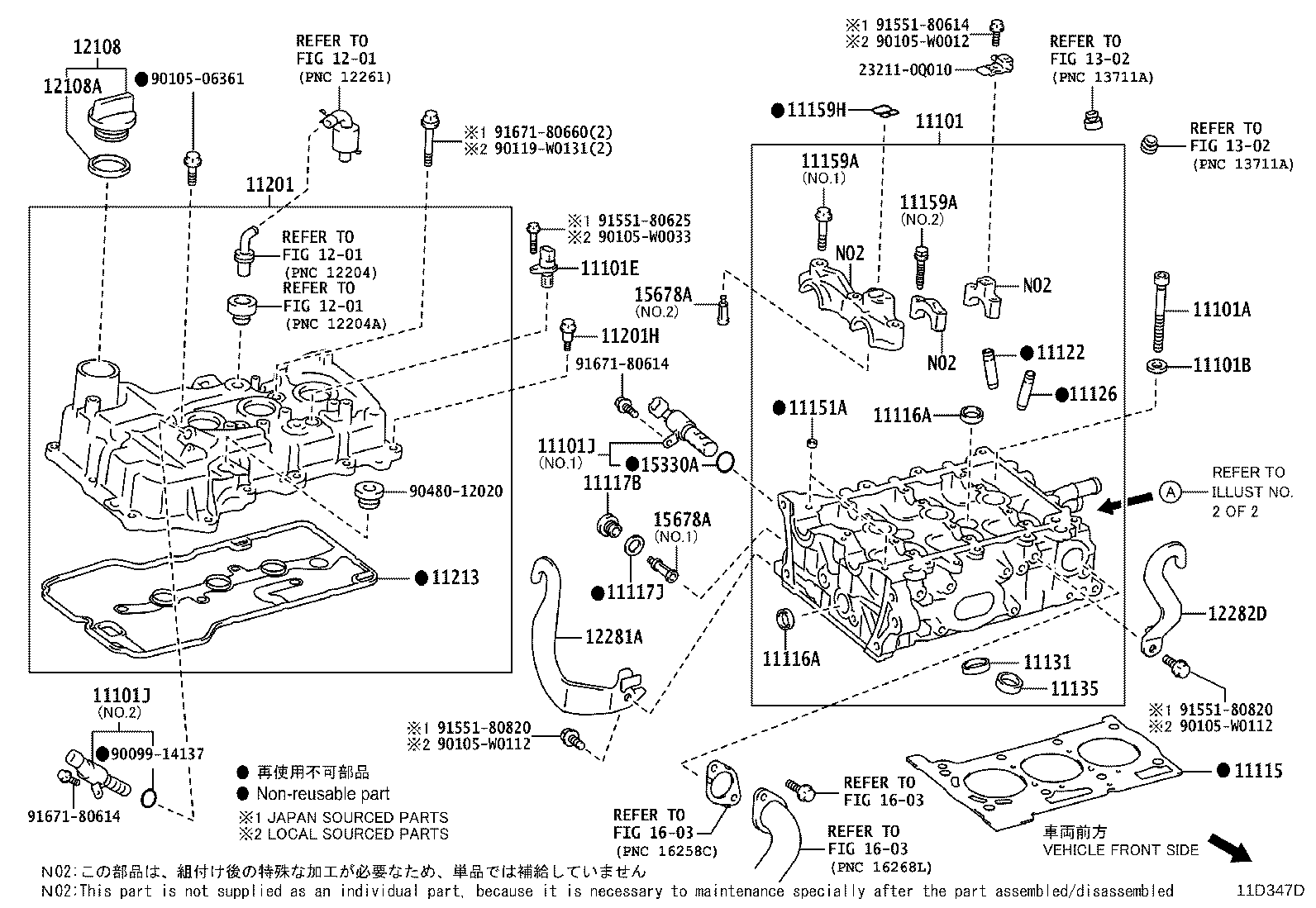

Exploded illustration 11D347D 9155180614 — not listed in this catalogue 90105W0012 — not listed in this catalogue 1201 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (5 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (12 parts) 11159H — GASKET, CAMSHAFT BEARING CAP OIL HOLE (2 parts) 15678A — FILTER, OIL CONTROL VALVE (5 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (9 parts) 11101E — SENSOR, CAM POSITION (4 parts) 11115 — GASKET, CYLINDER HEAD (4 parts) 11131 — SEAT, INTAKE VALVE (8 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (3 parts) 11135 — SEAT, EXHAUST VALVE (8 parts) 12282D — HANGER, ENGINE, NO.2 (3 parts) 12281A — HANGER, ENGINE, NO.1 (3 parts) 11101 — HEAD SUB-ASSY, CYLINDER (5 parts) 11117B — PLUG, W/HEAD TAPER SCREW, NO.2 (3 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (4 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (3 parts) 11116A — PLUG, TIGHT, NO.1 (2 parts) 11116A — PLUG, TIGHT, NO.1 (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (4 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (4 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (12 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (9 parts) 15678A — FILTER, OIL CONTROL VALVE (5 parts) 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (6 parts) 9167180614 — not listed in this catalogue 9048012020 — not listed in this catalogue 9155180820 — not listed in this catalogue 232110Q010 — not listed in this catalogue 90105W0112 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105W0033 — not listed in this catalogue 9155180820 — not listed in this catalogue 90105W0112 — not listed in this catalogue 9167180614 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue 11201 — COVER SUB-ASSY, CYLINDER HEAD (8 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (6 parts) 9167180660 — not listed in this catalogue 9010506361 — not listed in this catalogue 90119W0131 — not listed in this catalogue 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 1302 — not listed in this catalogue 1302 — not listed in this catalogue 9009914137 — not listed in this catalogue
11D347D · 29 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
124 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-0Q030 Head Sub-assy, Cylinder
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01002 Head Sub-assy, Cylinder
2014-05 → 2016-08 ended
1PP PAB40 —
SU001-01182 Head Sub-assy, Cylinder
2016-08 → —
1PP PAB40 —
11101-0Q040 Head Sub-assy, Cylinder
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11101-0Q040 Head Sub-assy, Cylinder
2018-05 → —
1KRFE KGB40 5D —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01004 Bolt(FOR CYLINDER HEAD SET)
2014-05 → —
1PP PAB40 —
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90910-02186 Bolt(FOR CYLINDER HEAD SET)
2018-05 → —
1KRFE KGB40 5D —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01005 Washer, Plate(FOR CYLINDER HEAD SET)
2014-05 → —
1PP PAB40 —
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90201-10136 Washer, Plate(FOR CYLINDER HEAD SET)
2018-05 → —
1KRFE KGB40 5D —
11101E — Sensor, Cam Position
90919-W5003 Sensor, Cam Position
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01115 Sensor, Cam Position
2014-05 → —
1PP PAB40 —
90919-W5003 Sensor, Cam Position
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90919-W5003 Sensor, Cam Position
2018-05 → —
1KRFE KGB40 5D —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-0Q020 note Valve Assy, Camshaft Timing Oil Control
2014-05 → 2015-06 ended
1KRFE KGB40 —
15330-0Q020 Valve Assy, Camshaft Timing Oil Control
2015-06 → 2015-09 ended
1KRFE KGB40 —
15330-0Q021 Valve Assy, Camshaft Timing Oil Control
2015-10 → 2018-05 ended
1KRFE KGB40 —
15330-40030 note Valve Assy, Camshaft Timing Oil Control
2014-05 → 2015-06 ended
1KRFE KGB40 —
SU001-01120 Valve Assy, Camshaft Timing Oil Control
2014-05 → —
1PP PAB40 —
15330-0Q021 note Valve Assy, Camshaft Timing Oil Control
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15330-0Q021 note Valve Assy, Camshaft Timing Oil Control
2018-05 → —
1KRFE KGB40 5D —
15330-0Q030 note Valve Assy, Camshaft Timing Oil Control
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15330-0Q030 note Valve Assy, Camshaft Timing Oil Control
2018-05 → —
1KRFE KGB40 5D —
11115 — Gasket, Cylinder Head
11115-40070 Gasket, Cylinder Head
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01003 Gasket, Cylinder Head
2014-05 → —
1PP PAB40 —
11115-40090 Gasket, Cylinder Head
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11115-40090 Gasket, Cylinder Head
2018-05 → —
1KRFE KGB40 5D —
11116A — Plug, Tight, NO.1
96411-62500 Plug, Tight, NO.1
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
96411-62500 Plug, Tight, NO.1
2018-05 → —
1KRFE KGB40 5D —
11117B — Plug, W/Head Taper Screw, NO.2
90341-14013 Plug, W/Head Taper Screw, NO.2
2014-05 → 2018-05 ended
1KRFE KGB40 —
90341-14013 Plug, W/Head Taper Screw, NO.2
2018-05 → —
1KRFE KGB40 5D —
90341-14013 Plug, W/Head Taper Screw, NO.2
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG)
90430-14009 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90430-14009 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90430-14009 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2018-05 → —
1KRFE KGB40 5D —
11122 — Bush, Intake Valve Guide
11122-21010 note Bush, Intake Valve Guide
2014-05 → 2018-05 ended
1KRFE KGB40 —
11123-21010 note Bush, Intake Valve Guide
2014-05 → 2018-05 ended
1KRFE KGB40 —
11122-21010 note Bush, Intake Valve Guide
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11122-21010 note Bush, Intake Valve Guide
2018-05 → —
1KRFE KGB40 5D —
11123-21010 note Bush, Intake Valve Guide
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11123-21010 note Bush, Intake Valve Guide
2018-05 → —
1KRFE KGB40 5D —
11126 — Bush, Exhaust Valve Guide
11122-21010 note Bush, Exhaust Valve Guide
2014-05 → 2018-05 ended
1KRFE KGB40 —
11123-21010 note Bush, Exhaust Valve Guide
2014-05 → 2018-05 ended
1KRFE KGB40 —
11122-21010 note Bush, Exhaust Valve Guide
2018-05 → —
1KRFE KGB40 5D —
11122-21010 note Bush, Exhaust Valve Guide
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11123-21010 note Bush, Exhaust Valve Guide
2018-05 → —
1KRFE KGB40 5D —
11123-21010 note Bush, Exhaust Valve Guide
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11131 — Seat, Intake Valve
11131-0Q020 note Seat, Intake Valve
2014-05 → 2018-04 ended
1KRFE KGB40 —
11131-0Q030 note Seat, Intake Valve
2018-04 → 2018-05 ended
1KRFE KGB40 —
11132-0Q020 note Seat, Intake Valve
2014-05 → 2018-04 ended
1KRFE KGB40 —
11132-0Q030 note Seat, Intake Valve
2018-04 → 2018-05 ended
1KRFE KGB40 —
11131-0Q030 note Seat, Intake Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11131-0Q030 note Seat, Intake Valve
2018-05 → —
1KRFE KGB40 5D —
11132-0Q030 note Seat, Intake Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11132-0Q030 note Seat, Intake Valve
2018-05 → —
1KRFE KGB40 5D —
11135 — Seat, Exhaust Valve
11135-0Q030 note Seat, Exhaust Valve
2018-04 → 2018-05 ended
1KRFE KGB40 —
11135-40040 note Seat, Exhaust Valve
2014-05 → 2018-04 ended
1KRFE KGB40 —
11136-0Q030 note Seat, Exhaust Valve
2018-04 → 2018-05 ended
1KRFE KGB40 —
11136-40040 note Seat, Exhaust Valve
2014-05 → 2018-04 ended
1KRFE KGB40 —
11135-0Q030 note Seat, Exhaust Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11135-0Q030 note Seat, Exhaust Valve
2018-05 → —
1KRFE KGB40 5D —
11136-0Q030 note Seat, Exhaust Valve
2018-05 → —
1KRFE KGB40 5D —
11136-0Q030 note Seat, Exhaust Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-11005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90253-11005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90253-11005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2018-05 → —
1KRFE KGB40 5D —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-W0133 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90119-W0221 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-05 → 2018-05 ended
1KRFE KGB40 —
91551-80840 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90105-W0133 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90105-W0133 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → —
1KRFE KGB40 5D —
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → —
1KRFE KGB40 5D —
90119-W0221 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90119-W0221 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → —
1KRFE KGB40 5D —
91551-80840 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → —
1KRFE KGB40 5D —
91551-80840 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11159H — Gasket, Camshaft Bearing Cap Oil Hole
11159-47020 Gasket, Camshaft Bearing Cap Oil Hole
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11159-47020 Gasket, Camshaft Bearing Cap Oil Hole
2018-05 → —
1KRFE KGB40 5D —
11201 — Cover Sub-assy, Cylinder Head
11210-0Q020 Cover Sub-assy, Cylinder Head
2014-05 → 2017-07 ended
1KRFE KGB40 —
11210-0Q021 Cover Sub-assy, Cylinder Head
2017-08 → 2018-05 ended
1KRFE KGB40 —
SU001-01006 Cover Sub-assy, Cylinder Head
2014-05 → 2016-04 ended
1PP PAB40 —
SU001-01183 Cover Sub-assy, Cylinder Head
2016-04 → —
1PP PAB40 —
11210-0Q030 Cover Sub-assy, Cylinder Head
2018-05 → 2020-03 ended
1KRFE KGB40 —
11210-0Q040 Cover Sub-assy, Cylinder Head
2020-04 → 2021-04 ended
1KRFE KGB40 3D —
11210-0Q040 Cover Sub-assy, Cylinder Head
2020-04 → 2022-06 ended
1KRFE KGB40 5D —
11210-0Q041 Cover Sub-assy, Cylinder Head
2022-07 → —
1KRFE KGB40 5D —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90109-W0019 note Bolt(FOR CYLINDER HEAD COVER)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2018-05 → —
1KRFE KGB40 5D —
90109-W0019 note Bolt(FOR CYLINDER HEAD COVER)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90109-W0019 note Bolt(FOR CYLINDER HEAD COVER)
2018-05 → —
1KRFE KGB40 5D —
11213 — Gasket, Cylinder Head Cover
11213-0Q020 Gasket, Cylinder Head Cover
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01008 Gasket, Cylinder Head Cover
2014-05 → —
1PP PAB40 —
11213-0Q030 Gasket, Cylinder Head Cover
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
11213-0Q030 Gasket, Cylinder Head Cover
2018-05 → 2022-06 ended
1KRFE KGB40 5D —
11213-0Q031 Gasket, Cylinder Head Cover
2022-07 → —
1KRFE KGB40 5D —
12108 — Cap Sub-assy, Oil Filler
12180-38010 Cap Sub-assy, Oil Filler
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01007 Cap Sub-assy, Oil Filler
2014-05 → —
1PP PAB40 —
12180-38010 Cap Sub-assy, Oil Filler
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12180-38010 Cap Sub-assy, Oil Filler
2018-05 → —
1KRFE KGB40 5D —
12108A — Gasket(FOR OIL FILLER CAP)
90430-35001 Gasket(FOR OIL FILLER CAP)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90430-35001 Gasket(FOR OIL FILLER CAP)
2018-05 → —
1KRFE KGB40 5D —
12281A — Hanger, Engine, NO.1
12281-40032 Hanger, Engine, NO.1
2014-05 → 2018-05 ended
1KRFE KGB40 —
12281-40032 Hanger, Engine, NO.1
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12281-40032 Hanger, Engine, NO.1
2018-05 → —
1KRFE KGB40 5D —
12282D — Hanger, Engine, NO.2
12282-40010 Hanger, Engine, NO.2
2014-05 → 2018-05 ended
1KRFE KGB40 —
12282-40010 Hanger, Engine, NO.2
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
12282-40010 Hanger, Engine, NO.2
2018-05 → —
1KRFE KGB40 5D —
15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90068-14040 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2015-10 → 2018-05 ended
1KRFE KGB40 —
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2014-05 → 2015-10 ended
1KRFE KGB40 —
90068-14040 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90068-14040 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2018-05 → —
1KRFE KGB40 5D —
15678A — Filter, Oil Control Valve
15678-21010 Filter, Oil Control Valve
2014-05 → 2018-05 ended
1KRFE KGB40 —
15678-21010 note Filter, Oil Control Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15678-21010 note Filter, Oil Control Valve
2018-05 → —
1KRFE KGB40 5D —
15678-31020 note Filter, Oil Control Valve
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
15678-31020 note Filter, Oil Control Valve
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
