Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

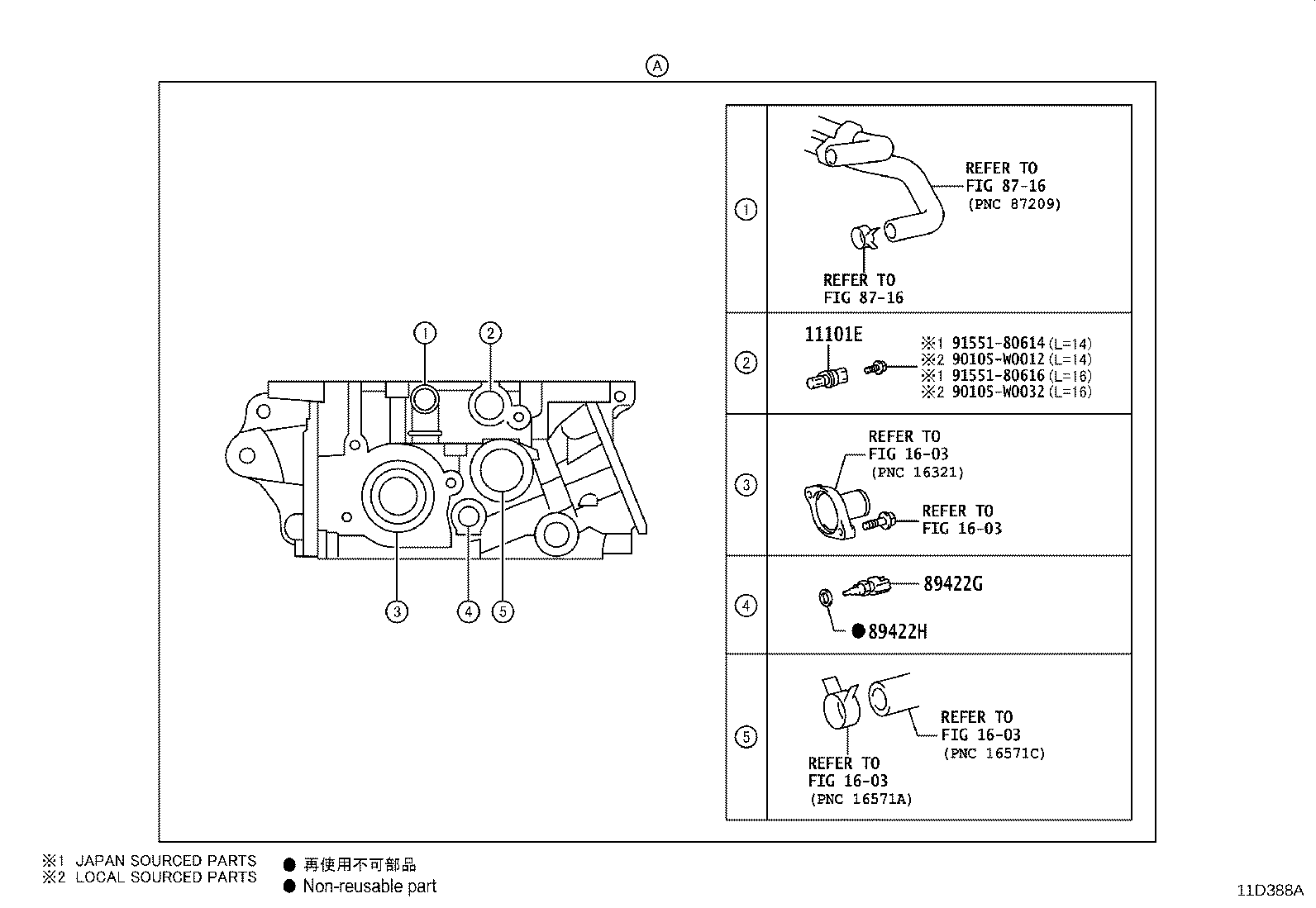

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101E — Sensor, Cam Position | ||||
| 90919-W5003 |
Sensor, Cam Position
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01115 |
Sensor, Cam Position
2014-05 → —
|
1PP PAB40 | — | |
| 90919-W5003 |
Sensor, Cam Position
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90919-W5003 |
Sensor, Cam Position
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 89422G — Sensor, Water Temperature | ||||
| 89422-33030 |
Sensor, Water Temperature
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 89422-33030 |
Sensor, Water Temperature
2018-05 → —
|
KGB40 5D | — | |
| 89422H — Gasket, Water Temperature Sensor | ||||
| 90430-12005 note |
Gasket, Water Temperature Sensor
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 90430-12005 note |
Gasket, Water Temperature Sensor
2018-05 → —
|
KGB40 5D | — | |
| 90430-12221 note |
Gasket, Water Temperature Sensor
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 90430-12221 note |
Gasket, Water Temperature Sensor
2018-05 → —
|
KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
