Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

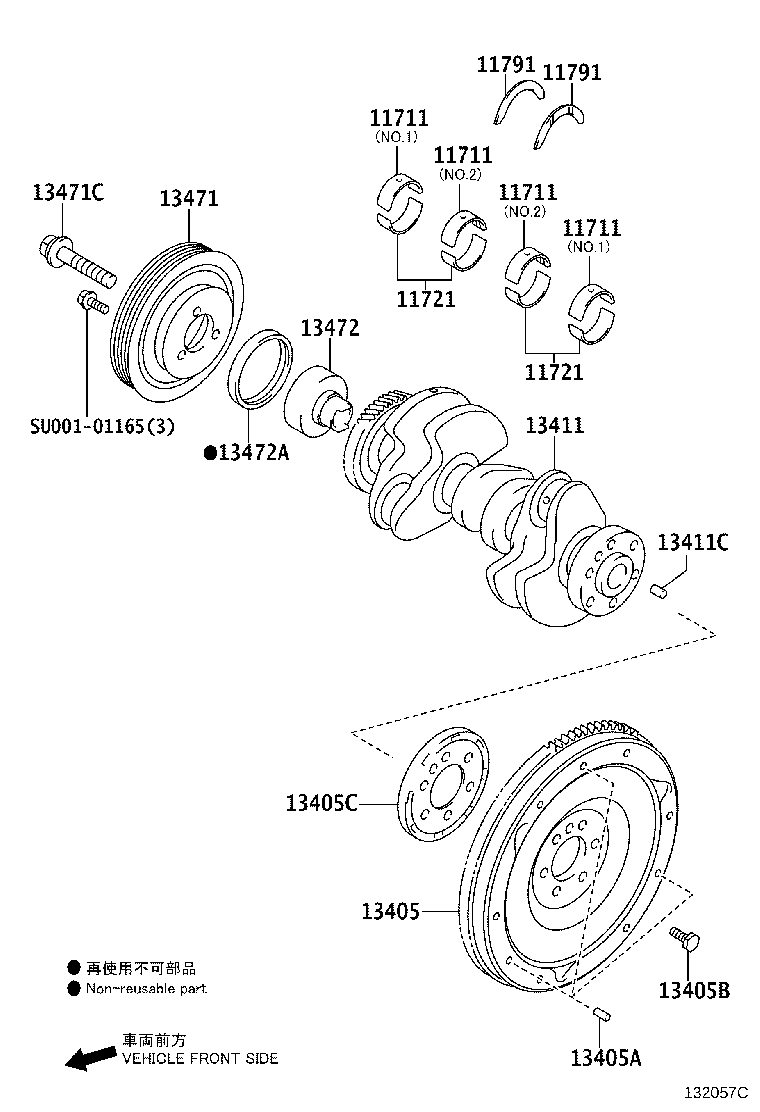

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-40040-02 note |
Bearing, Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 11701-40040-03 note |
Bearing, Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 11701-40040-04 note |
Bearing, Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 11701-40040-05 note |
Bearing, Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01021 note |
Bearing, Crankshaft
2014-05 → —
|
1PP PAB40 | — | |
| SU001-01022 note |
Bearing, Crankshaft
2014-05 → —
|
1PP PAB40 | — | |
| 11701-0Q030-02 note |
Bearing, Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11701-0Q030-02 note |
Bearing, Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11701-0Q030-03 note |
Bearing, Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11701-0Q030-03 note |
Bearing, Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11701-0Q030-04 note |
Bearing, Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11701-0Q030-04 note |
Bearing, Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11701-0Q030-05 note |
Bearing, Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11701-0Q030-05 note |
Bearing, Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11721 — Bearing, Crankshaft, NO.2 | ||||
| SU001-01023 note |
Bearing, Crankshaft, NO.2
2014-05 → —
|
1PP PAB40 | — | |
| SU001-01024 note |
Bearing, Crankshaft, NO.2
2014-05 → —
|
1PP PAB40 | — | |
| SU001-01025 note |
Bearing, Crankshaft, NO.2
2014-05 → —
|
1PP PAB40 | — | |
| SU001-01026 note |
Bearing, Crankshaft, NO.2
2014-05 → —
|
1PP PAB40 | — | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-0Q010 note |
Washer, Crankshaft Thrust, Upper
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 11792-40020 note |
Washer, Crankshaft Thrust, Upper
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 11793-40020 note |
Washer, Crankshaft Thrust, Upper
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01027 |
Washer, Crankshaft Thrust, Upper
2014-05 → —
|
1PP PAB40 | — | |
| 11791-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11791-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11792-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11792-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 11793-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 11793-0Q020 note |
Washer, Crankshaft Thrust, Upper
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13405 — Flywheel Sub-assy | ||||
| 13405-0Q020 |
Flywheel Sub-assy
2014-05 → 2016-12
ended
|
1KRFE KGB40 | — | |
| 13405-0Q021 |
Flywheel Sub-assy
2017-01 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01019 |
Flywheel Sub-assy
2014-05 → —
|
1PP PAB40 | — | |
| 13405-0Q021 |
Flywheel Sub-assy
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 13405-0Q021 |
Flywheel Sub-assy
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-00533 note |
Pin, Straight(FOR FLYWHEEL)
2014-05 → —
|
1PP PAB40 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90105-10463 |
Bolt, Flywheel Setting
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-00812 |
Bolt, Flywheel Setting
2014-05 → —
|
1PP PAB40 | — | |
| 90105-10463 |
Bolt, Flywheel Setting
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90105-10463 |
Bolt, Flywheel Setting
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13405C — Spacer, NO.1(FOR FLYWHEEL) | ||||
| SU001-01020 |
Spacer, NO.1(FOR FLYWHEEL)
2014-05 → —
|
1PP PAB40 | — | |
| 13411 — Crankshaft | ||||
| 13401-0Q050 note |
Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 5F | — | |
| 13401-0Q060 |
Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01011 |
Crankshaft
2014-05 → —
|
1PP PAB40 | — | |
| 13401-0Q020 note |
Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D 5F | — | |
| 13401-0Q020 note |
Crankshaft
2018-05 → —
|
1KRFE KGB40 5D 5F | — | |
| 13401-0Q030 |
Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 13401-0Q030 |
Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13411C — Pin, Straight(FOR CRANKSHAFT) | ||||
| 90280-04001 |
Pin, Straight(FOR CRANKSHAFT)
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-A0130 |
Pin, Straight(FOR CRANKSHAFT)
2014-05 → —
|
1PP PAB40 | — | |
| 90280-04001 |
Pin, Straight(FOR CRANKSHAFT)
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90280-04001 |
Pin, Straight(FOR CRANKSHAFT)
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13471 — Pulley, Crankshaft | ||||
| 13470-0Q012 |
Pulley, Crankshaft
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01016 |
Pulley, Crankshaft
2014-05 → —
|
1PP PAB40 | — | |
| 13470-0Q012 |
Pulley, Crankshaft
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 13470-0Q012 |
Pulley, Crankshaft
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2014-05 → 2015-04
ended
|
1KRFE KGB40 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2016-06 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 90119-14175 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2015-05 → 2016-06
ended
|
1KRFE KGB40 | — | |
| SU001-01017 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2014-05 → 2015-02
ended
|
1PP PAB40 | — | |
| SU001-01018 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2015-02 → 2017-01
ended
|
1PP PAB40 | — | |
| SU001-01184 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2017-01 → —
|
1PP PAB40 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 13472 — Hub, Crankshaft Pulley | ||||
| SU001-01013 |
Hub, Crankshaft Pulley
2014-05 → —
|
1PP PAB40 | — | |
| 13472A — Seal, Oil(FOR CRANKSHAFT PULLEY HUB) | ||||
| SU001-01014 |
Seal, Oil(FOR CRANKSHAFT PULLEY HUB)
2014-05 → —
|
1PP PAB40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
