Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

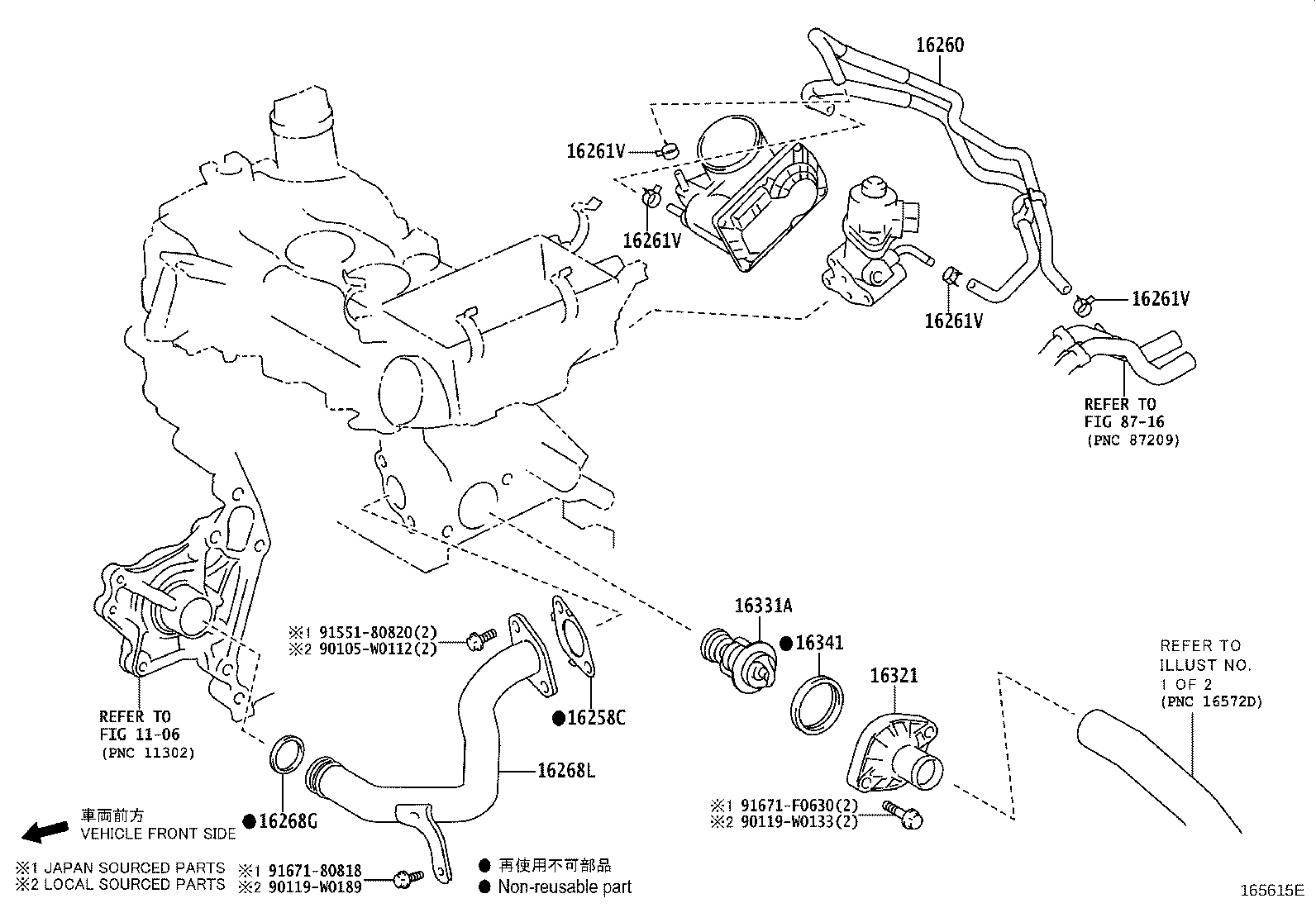

Exploded illustration 165615E 91671F0630 — not listed in this catalogue 90119W0133 — not listed in this catalogue 9167180818 — not listed in this catalogue 90119W0189 — not listed in this catalogue 16268L — PIPE, WATER BY-PASS (5 parts) 16268G — GASKET(FOR WATER BY-PASS PIPE) (5 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (3 parts) 16321 — INLET, WATER (6 parts) 16331A — THERMOSTAT (4 parts) 16341 — GASKET, WATER OUTLET (3 parts) 8716 — not listed in this catalogue 1106 — not listed in this catalogue 16260 — HOSE ASSY, WATER BY-PASS (1 parts) 16261V — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16261V — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16261V — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16261V — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 9155180820 — not listed in this catalogue 90105W0112 — not listed in this catalogue
165615E · 11 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-40021 Gasket(FOR WATER BY-PASS PIPE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
16258-40021 Gasket(FOR WATER BY-PASS PIPE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16258-40021 Gasket(FOR WATER BY-PASS PIPE)
2018-05 → —
1KRFE KGB40 5D —
16260 — Hose Assy, Water By-pass
16260-0Q070 Hose Assy, Water By-pass
2014-05 → 2018-05 ended
1KRFE KGB40 —
16261V — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2018-05 → 2020-03 ended
1KRFE KGB40 —
96138-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2020-04 → 2021-04 ended
1KRFE KGB40 3D —
96138-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2020-04 → —
1KRFE KGB40 5D —
16268G — Gasket(FOR WATER BY-PASS PIPE)
16258-0Q010 Gasket(FOR WATER BY-PASS PIPE)
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01198 Gasket(FOR WATER BY-PASS PIPE)
2014-05 → 2018-05 ended
1PP PAB40 —
16258-0Q010 Gasket(FOR WATER BY-PASS PIPE)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16258-0Q010 Gasket(FOR WATER BY-PASS PIPE)
2018-05 → —
1KRFE KGB40 —
16258-0Q010 Gasket(FOR WATER BY-PASS PIPE)
2018-05 → —
1KRFE KGB40 5D —
16268L — Pipe, Water By-pass
16268-0Q010 Pipe, Water By-pass
2014-05 → 2018-05 ended
1KRFE KGB40 —
16268-0Q020 note Pipe, Water By-pass
2014-05 → 2018-05 ended
1KRFE KGB40 5D 5F;1KRFE +4 —
16268-0Q010 Pipe, Water By-pass
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16268-0Q010 Pipe, Water By-pass
2018-05 → —
1KRFE KGB40 5D —
16268-0Q020 note Pipe, Water By-pass
2018-05 → —
1KRFE KGB40 5D 5F —
16321 — Inlet, Water
16321-0Q010 note Inlet, Water
2014-05 → 2018-05 ended
1KRFE KGB40 —
16321-40010 note Inlet, Water
2014-05 → 2018-05 ended
1KRFE KGB40 —
16321-0Q010 note Inlet, Water
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16321-0Q010 note Inlet, Water
2018-05 → —
1KRFE KGB40 5D —
16321-40010 note Inlet, Water
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16321-40010 note Inlet, Water
2018-05 → —
1KRFE KGB40 5D —
16331A — Thermostat
90916-03150 note Thermostat
2014-05 → 2017-03 ended
1KRFE KGB40 —
90916-03153 Thermostat
2017-04 → 2018-05 ended
1KRFE KGB40 —
90916-03153 Thermostat
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90916-03153 Thermostat
2018-05 → —
1KRFE KGB40 5D —
16341 — Gasket, Water Outlet
16341-35010 Gasket, Water Outlet
2014-05 → 2018-05 ended
1KRFE KGB40 —
16341-35010 Gasket, Water Outlet
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
16341-35010 Gasket, Water Outlet
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
