Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

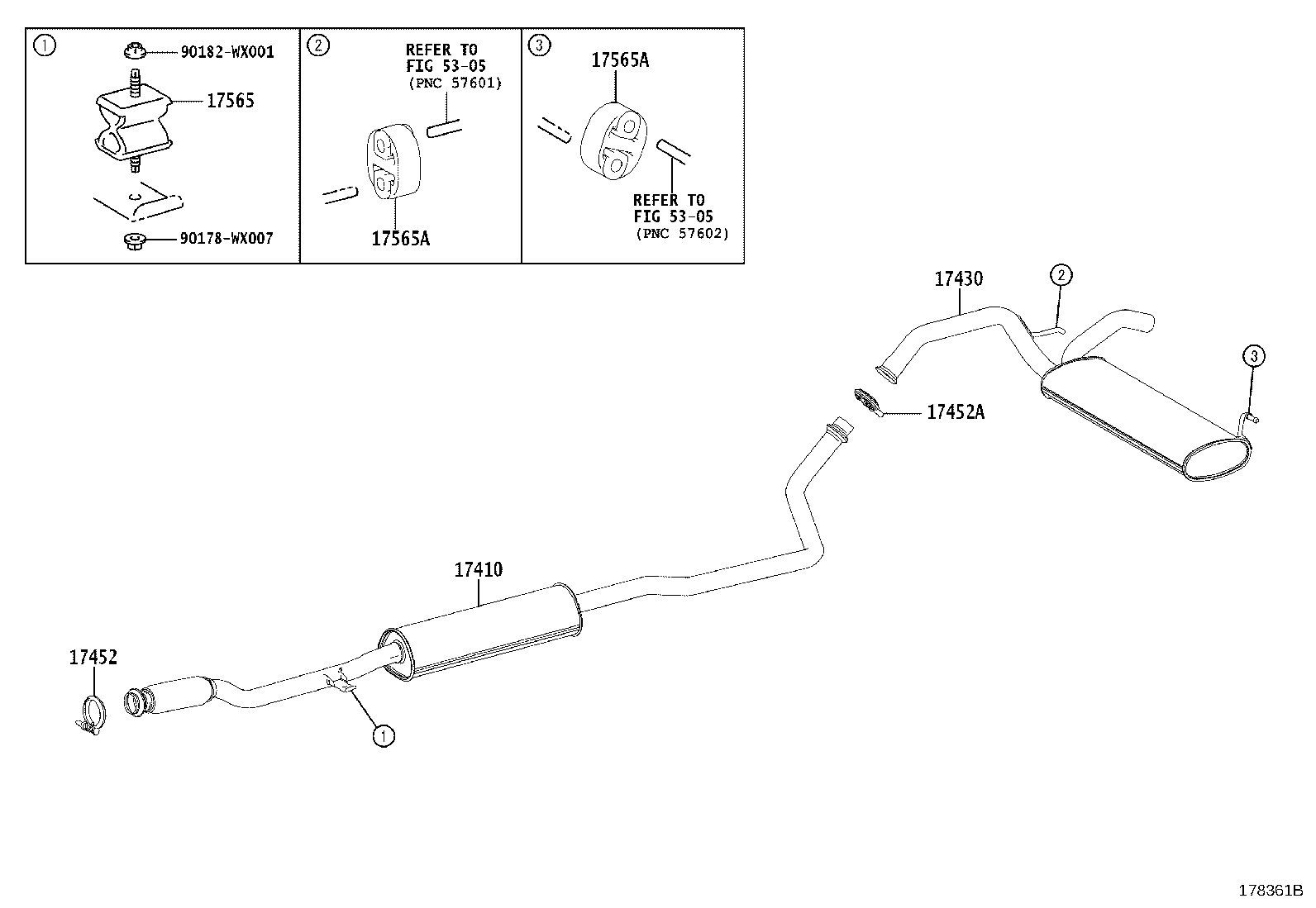

Exploded illustration 178361B 5305 — not listed in this catalogue 5305 — not listed in this catalogue 90178WX007 — not listed in this catalogue 90182WX001 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (7 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (7 parts) 17452 — CLAMP, EXHAUST PIPE (1 parts) 17452A — CLAMP, EXHAUST PIPE (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (4 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (4 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (1 parts)
178361B · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-0Q060 note Pipe Assy, Exhaust, Front
2015-05 → 2018-05 ended
1KRFE KGB40 5D 5F;1KRFE +4 —
17410-0Q060 note Pipe Assy, Exhaust, Front
2015-05 → 2018-05 ended
1KRFE KGB40 5D 5F;1KRFE +4 —
17410-0Q060 Pipe Assy, Exhaust, Front
2014-05 → 2015-05 ended
1KRFE KGB40 —
17410-0Q080 note Pipe Assy, Exhaust, Front
2015-05 → 2018-05 ended
1KRFE KGB40 —
17410-YV020 Pipe Assy, Exhaust, Front
2014-05 → 2018-05 ended
1PP PAB40 —
17410-0Q090 note Pipe Assy, Exhaust, Front
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17410-0Q090 note Pipe Assy, Exhaust, Front
2018-05 → —
1KRFE KGB40 5D —
17430 — Pipe Assy, Exhaust, Tail
17430-0Q060 note Pipe Assy, Exhaust, Tail
2015-05 → 2018-05 ended
1KRFE KGB40 5D 5F;1KRFE +4 —
17430-0Q060 note Pipe Assy, Exhaust, Tail
2015-05 → 2018-05 ended
1KRFE KGB40 5D 5F;1KRFE +4 —
17430-0Q060 Pipe Assy, Exhaust, Tail
2014-05 → 2015-05 ended
1KRFE KGB40 —
17430-0Q080 Pipe Assy, Exhaust, Tail
2015-05 → 2018-05 ended
1KRFE KGB40 —
17430-YV020 Pipe Assy, Exhaust, Tail
2014-05 → 2018-05 ended
1PP PAB40 —
17430-0Q080 Pipe Assy, Exhaust, Tail
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17430-0Q080 Pipe Assy, Exhaust, Tail
2018-05 → —
1KRFE KGB40 5D —
17452 — Clamp, Exhaust Pipe
SU001-01131 Clamp, Exhaust Pipe
2014-05 → 2018-05 ended
1PP PAB40 —
17452A — Clamp, Exhaust Pipe
SU001-01161 Clamp, Exhaust Pipe
2014-05 → 2018-05 ended
1PP PAB40 —
17565 — Support, Exhaust Pipe, NO.5
17565-YV010 Support, Exhaust Pipe, NO.5
2014-05 → 2018-05 ended
1PP PAB40 —
17565A — Support, Exhaust Pipe, NO.4
17565-0Q010 Support, Exhaust Pipe, NO.4
2014-05 → 2018-05 ended
1PP PAB40 —
17565-0Q010 Support, Exhaust Pipe, NO.4
2014-05 → 2018-05 ended
1KRFE KGB40 —
17565-0Q010 Support, Exhaust Pipe, NO.4
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17565-0Q010 Support, Exhaust Pipe, NO.4
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
