Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

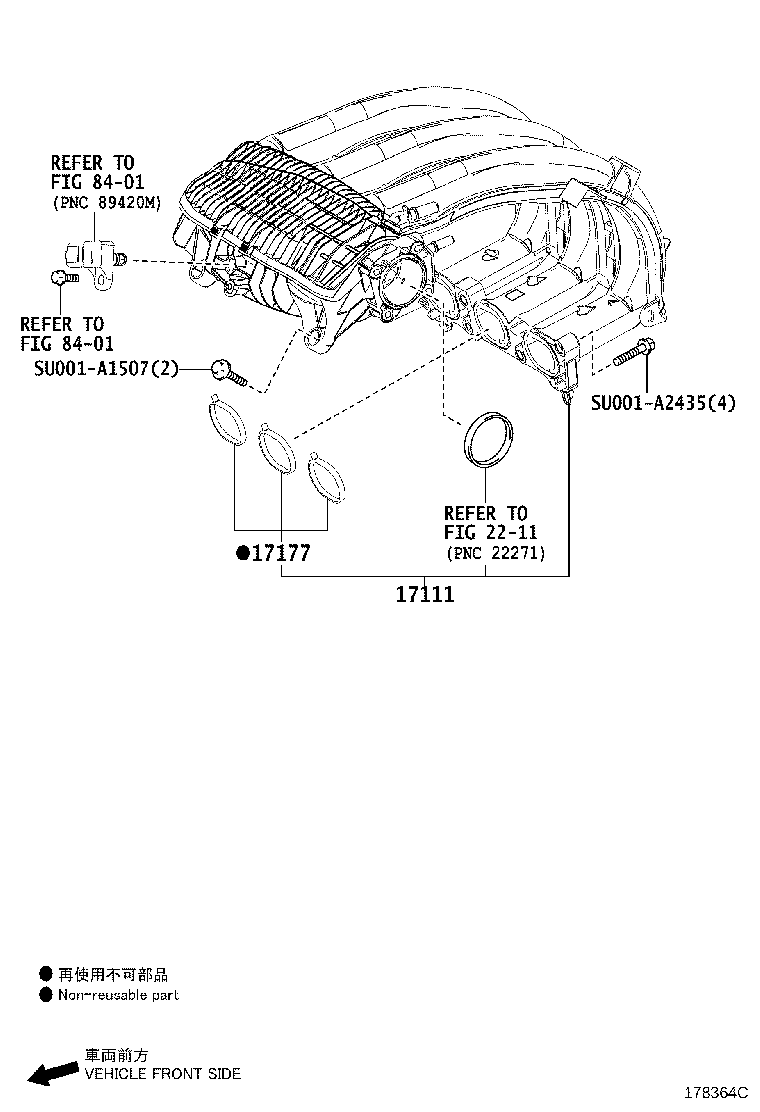

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-0Q040 |
Manifold, Intake
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01098 |
Manifold, Intake
2014-05 → —
|
1PP PAB40 | — | |
| 17120-0Q050 |
Manifold, Intake
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 17120-0Q050 |
Manifold, Intake
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-0Q030 |
Gasket, Intake Manifold TO Head, NO.1
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| SU001-01099 |
Gasket, Intake Manifold TO Head, NO.1
2014-05 → —
|
1PP PAB40 | — | |
| 17177-0Q040 |
Gasket, Intake Manifold TO Head, NO.1
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 17177-0Q040 |
Gasket, Intake Manifold TO Head, NO.1
2018-05 → —
|
1KRFE KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
