Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

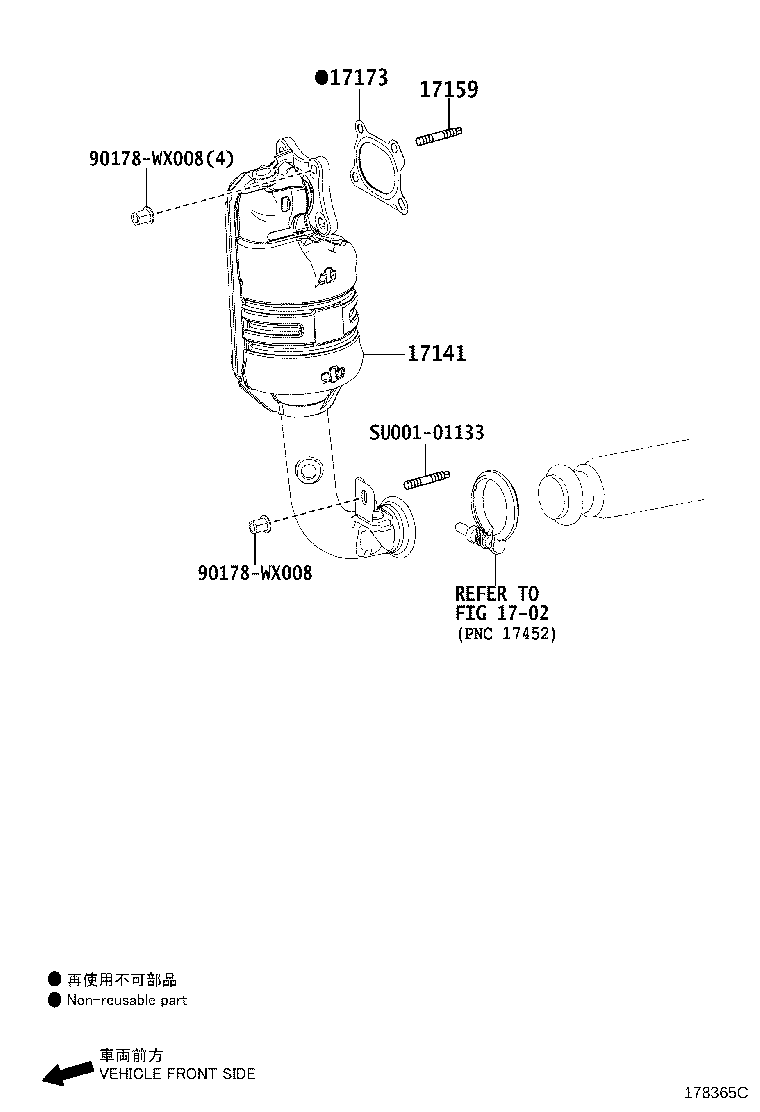

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17141 — Manifold, Exhaust | ||||
| 17140-0Q090 note |
Manifold, Exhaust
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 17140-YV010 note |
Manifold, Exhaust
2014-05 → —
|
1PP PAB40 | — | |
| 17140-0Q110 note |
Manifold, Exhaust
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 17140-0Q110 note |
Manifold, Exhaust
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| SU001-01132 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2014-05 → —
|
1PP PAB40 | — | |
| 90126-08055 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 90126-08055 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-05 → —
|
1KRFE KGB40 5D | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-40050 |
Gasket, Exhaust Manifold TO Head
2014-05 → 2018-05
ended
|
1KRFE KGB40 | — | |
| 17173-YV010 |
Gasket, Exhaust Manifold TO Head
2014-05 → —
|
1PP PAB40 | — | |
| 17173-0Q030 |
Gasket, Exhaust Manifold TO Head
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D | — | |
| 17173-0Q030 |
Gasket, Exhaust Manifold TO Head
2018-05 → —
|
1KRFE KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
