Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

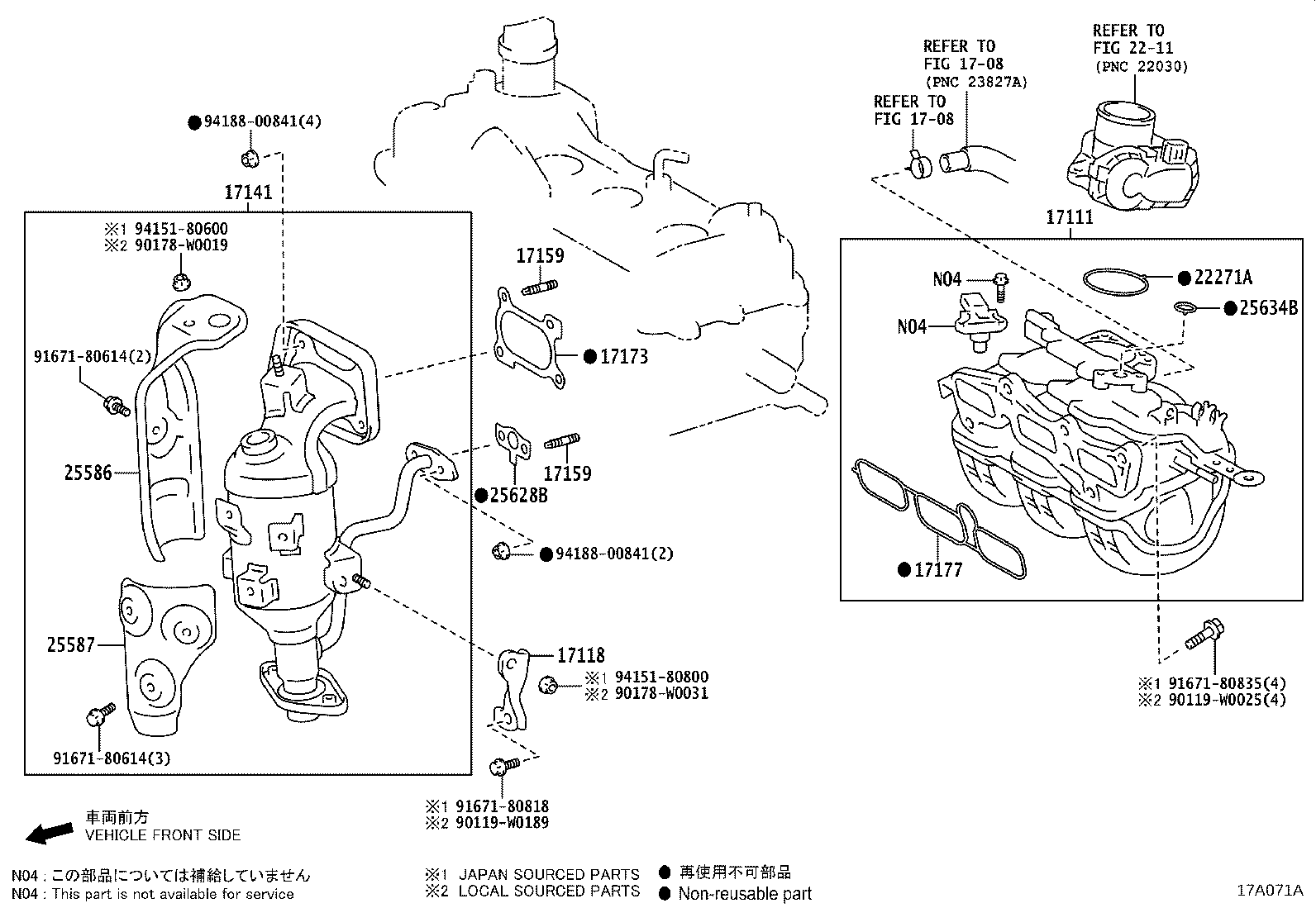

Exploded illustration 17A071A 9415180600 — not listed in this catalogue 90178W0019 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178W0031 — not listed in this catalogue 9167180818 — not listed in this catalogue 90119W0189 — not listed in this catalogue 9167180835 — not listed in this catalogue 90119W0025 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (4 parts) 17141 — MANIFOLD, EXHAUST (4 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (4 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (3 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (3 parts) 25628B — GASKET, EGR INLET (6 parts) 25586 — INSULATOR, MANIFOLD CONVERTER, NO.1 (3 parts) 25587 — INSULATOR, MANIFOLD CONVERTER, NO.2 (2 parts) 17118 — STAY, MANIFOLD (3 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (4 parts) 22271A — GASKET, THROTTLE BODY (3 parts) 25634B — GASKET, EGR PIPE (2 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 9418800841 — not listed in this catalogue 9418800841 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue
17A071A · 12 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17120-0Q040 Manifold, Intake
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01098 Manifold, Intake
2014-05 → —
1PP PAB40 —
17120-0Q050 Manifold, Intake
2018-05 → —
1KRFE KGB40 5D —
17120-0Q050 Manifold, Intake
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17118 — Stay, Manifold
17118-0Q020 Stay, Manifold
2014-05 → 2018-05 ended
1KRFE KGB40 —
17118-0Q020 Stay, Manifold
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17118-0Q020 Stay, Manifold
2018-05 → —
1KRFE KGB40 5D —
17141 — Manifold, Exhaust
17140-0Q090 note Manifold, Exhaust
2014-05 → 2018-05 ended
1KRFE KGB40 —
17140-YV010 note Manifold, Exhaust
2014-05 → —
1PP PAB40 —
17140-0Q110 note Manifold, Exhaust
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17140-0Q110 note Manifold, Exhaust
2018-05 → —
1KRFE KGB40 5D —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
SU001-01132 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2014-05 → —
1PP PAB40 —
90126-08055 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90126-08055 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-05 → —
1KRFE KGB40 5D —
17173 — Gasket, Exhaust Manifold TO Head
17173-40050 Gasket, Exhaust Manifold TO Head
2014-05 → 2018-05 ended
1KRFE KGB40 —
17173-YV010 Gasket, Exhaust Manifold TO Head
2014-05 → —
1PP PAB40 —
17173-0Q030 Gasket, Exhaust Manifold TO Head
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
17173-0Q030 Gasket, Exhaust Manifold TO Head
2018-05 → —
1KRFE KGB40 5D —
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-0Q030 Gasket, Intake Manifold TO Head, NO.1
2014-05 → 2018-05 ended
1KRFE KGB40 —
SU001-01099 Gasket, Intake Manifold TO Head, NO.1
2014-05 → —
1PP PAB40 —
17177-0Q040 Gasket, Intake Manifold TO Head, NO.1
2018-05 → —
1KRFE KGB40 5D —
17177-0Q040 Gasket, Intake Manifold TO Head, NO.1
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
22271A — Gasket, Throttle Body
22271-0Q010 Gasket, Throttle Body
2014-05 → 2018-05 ended
1KRFE KGB40 —
22271-0Q020 Gasket, Throttle Body
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
22271-0Q020 Gasket, Throttle Body
2018-05 → —
1KRFE KGB40 5D —
25586 — Insulator, Manifold Converter, NO.1
25586-0Q040 Insulator, Manifold Converter, NO.1
2014-05 → 2018-05 ended
1KRFE KGB40 —
25586-0Q050 Insulator, Manifold Converter, NO.1
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
25586-0Q050 Insulator, Manifold Converter, NO.1
2018-05 → —
1KRFE KGB40 5D —
25587 — Insulator, Manifold Converter, NO.2
25587-40010 Insulator, Manifold Converter, NO.2
2018-05 → —
1KRFE KGB40 5D —
25587-40010 Insulator, Manifold Converter, NO.2
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
25628B — Gasket, Egr Inlet
25628-0Q010 note Gasket, Egr Inlet
2014-05 → 2018-05 ended
1KRFE KGB40 —
25628-40020 note Gasket, Egr Inlet
2014-05 → 2018-05 ended
1KRFE KGB40 —
25628-0Q010 note Gasket, Egr Inlet
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
25628-0Q010 note Gasket, Egr Inlet
2018-05 → —
1KRFE KGB40 5D —
25628-40020 note Gasket, Egr Inlet
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
25628-40020 note Gasket, Egr Inlet
2018-05 → —
1KRFE KGB40 5D —
25634B — Gasket, Egr Pipe
25634-40010 Gasket, Egr Pipe
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
25634-40010 Gasket, Egr Pipe
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
