Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

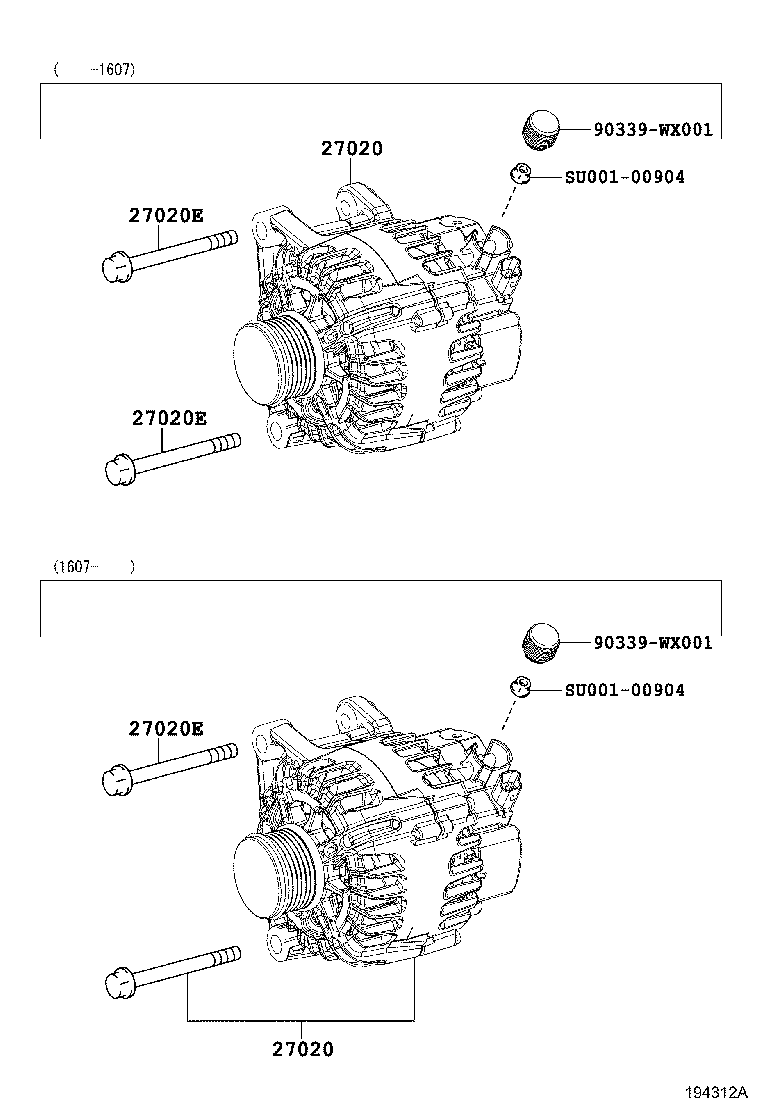

Exploded illustration 194312A SU00100904 — not listed in this catalogue 90339WX001 — not listed in this catalogue 27020E — BOLT(FOR ALTERNATOR) (5 parts) 27020 — ALTERNATOR ASSY (32 parts) SU00100904 — not listed in this catalogue 90339WX001 — not listed in this catalogue 27020E — BOLT(FOR ALTERNATOR) (5 parts) 27020E — BOLT(FOR ALTERNATOR) (5 parts) 27020 — ALTERNATOR ASSY (32 parts)
194312A · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
27020 — Alternator Assy
27060-0Q160 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 5F —
27060-0Q170 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 LHD 5F —
27060-0Q170 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 LHD 5F —
27060-0Q170 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 5F —
27060-0Q180 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 —
27060-0Q190 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 —
27060-0Q190 note Alternator Assy
2014-05 → 2018-05 ended
1KRFE KGB40 LHD —
27060-YV030 note Alternator Assy
2014-05 → 2016-04 ended
1PP PAB40 —
27060-YV031 Alternator Assy
2016-07 → 2018-05 ended
1PP PAB40 —
SU001-01181 Alternator Assy
2016-01 → 2016-07 ended
1PP PAB40 —
27060-0Q160 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 LHD 3D +1 —
27060-0Q160 note Alternator Assy
2020-06 → —
1KRFE KGB40 LHD 5D +1 —
27060-0Q160 note Alternator Assy
2020-06 → —
1KRFE KGB40 RHD 5D +1 —
27060-0Q160 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 RHD 3D +1 —
27060-0Q160 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 5F —
27060-0Q170 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 5F —
27060-0Q170 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 LHD 5F —
27060-0Q170 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 RHD 3D +1 —
27060-0Q170 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 LHD 3D +1 —
27060-0Q170 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 LHD 3D +1 —
27060-0Q170 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 LHD 3D +1 —
27060-0Q170 note Alternator Assy
2020-06 → —
1KRFE KGB40 LHD 5D +1 —
27060-0Q170 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 LHD 5F —
27060-0Q170 note Alternator Assy
2020-06 → —
1KRFE KGB40 RHD 5D +1 —
27060-0Q170 note Alternator Assy
2020-06 → —
1KRFE KGB40 LHD 5D +1 —
27060-0Q170 note Alternator Assy
2020-06 → —
1KRFE KGB40 LHD 5D +1 —
27060-0Q180 note Alternator Assy
2018-05 → 2021-05 ended
1KRFE KGB40 3D —
27060-0Q180 note Alternator Assy
2018-05 → —
1KRFE KGB40 5D —
27060-0Q190 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 LHD —
27060-0Q190 note Alternator Assy
2020-06 → —
1KRFE KGB40 5D —
27060-0Q190 note Alternator Assy
2020-06 → 2021-05 ended
1KRFE KGB40 3D —
27060-0Q190 note Alternator Assy
2018-05 → 2020-06 ended
1KRFE KGB40 —
27020E — Bolt(FOR ALTERNATOR)
90105-10075 Bolt(FOR ALTERNATOR)
2014-05 → 2018-05 ended
1KRFE KGB40 —
90105-WX013 Bolt(FOR ALTERNATOR)
2014-05 → 2016-07 ended
1PP PAB40 —
90105-WX013 Bolt(FOR ALTERNATOR)
2016-07 → 2018-05 ended
1PP PAB40 —
90105-10075 Bolt(FOR ALTERNATOR)
2018-05 → 2021-04 ended
1KRFE KGB40 3D —
90105-10075 Bolt(FOR ALTERNATOR)
2018-05 → —
1KRFE KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
