Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

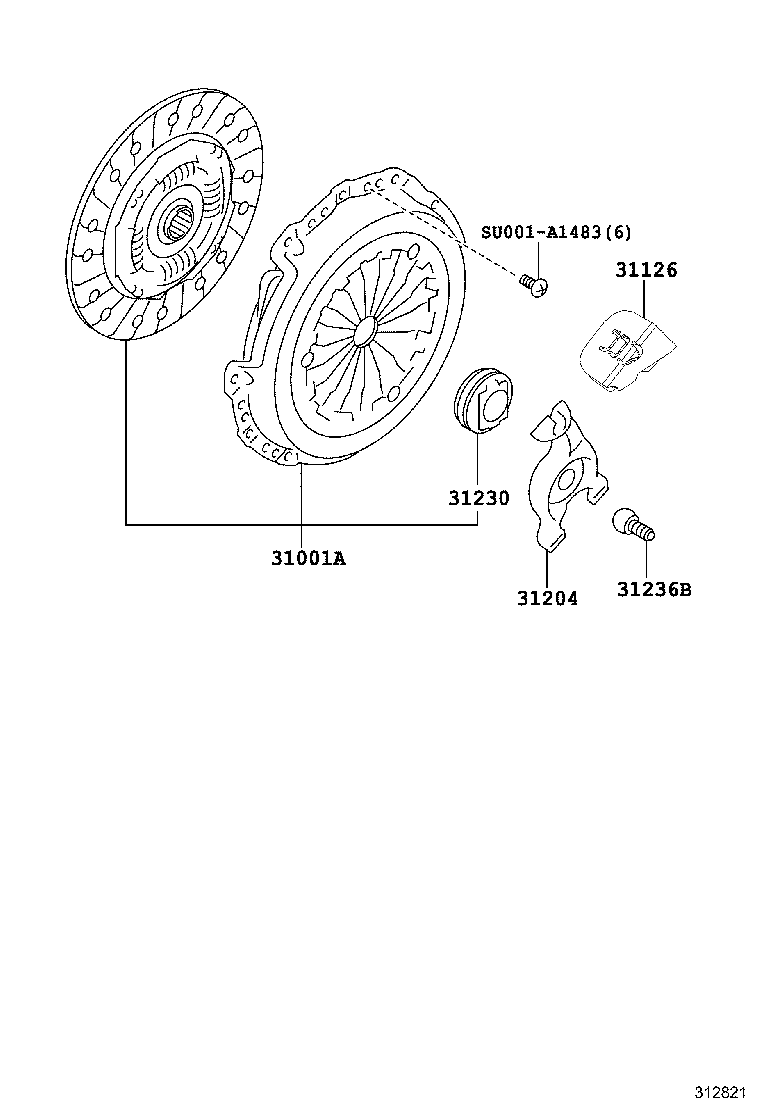

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31001A — Clutch Set | ||||
| SU001-01134 |
Clutch Set
2014-05 → 2016-06
ended
|
PAB40 | — | |
| SU001-01179 |
Clutch Set
2016-06 → 2018-05
ended
|
PAB40 | — | |
| 31126 — Boot, Clutch Release Fork | ||||
| SU001-00962 |
Boot, Clutch Release Fork
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 31204 — Fork Sub-assy, Clutch Release | ||||
| SU001-01136 |
Fork Sub-assy, Clutch Release
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 31230 — Bearing Assy, Clutch Release | ||||
| 31230-0H010 note |
Bearing Assy, Clutch Release
2014-05 → 2016-12
ended
|
KGB40 | — | |
| 31230-0H020 |
Bearing Assy, Clutch Release
2016-12 → 2017-02
ended
|
KGB40 5F | — | |
| 31230-0H030 |
Bearing Assy, Clutch Release
2016-12 → 2017-02
ended
|
KGB40 5FS | — | |
| 31230-52040 note |
Bearing Assy, Clutch Release
2014-05 → 2016-12
ended
|
KGB40 | — | |
| 31230-52041 |
Bearing Assy, Clutch Release
2017-02 → 2018-05
ended
|
KGB40 | — | |
| SU001-01135 |
Bearing Assy, Clutch Release
2014-05 → 2014-10
ended
|
PAB40 | — | |
| SU001-01162 |
Bearing Assy, Clutch Release
2014-10 → 2018-05
ended
|
PAB40 | — | |
| 31230-52041 |
Bearing Assy, Clutch Release
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 31230-52041 |
Bearing Assy, Clutch Release
2018-05 → —
|
KGB40 5D | — | |
| 31236B — Support, Release Fork | ||||
| SU001-A0735 |
Support, Release Fork
2014-05 → 2018-05
ended
|
PAB40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
