Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

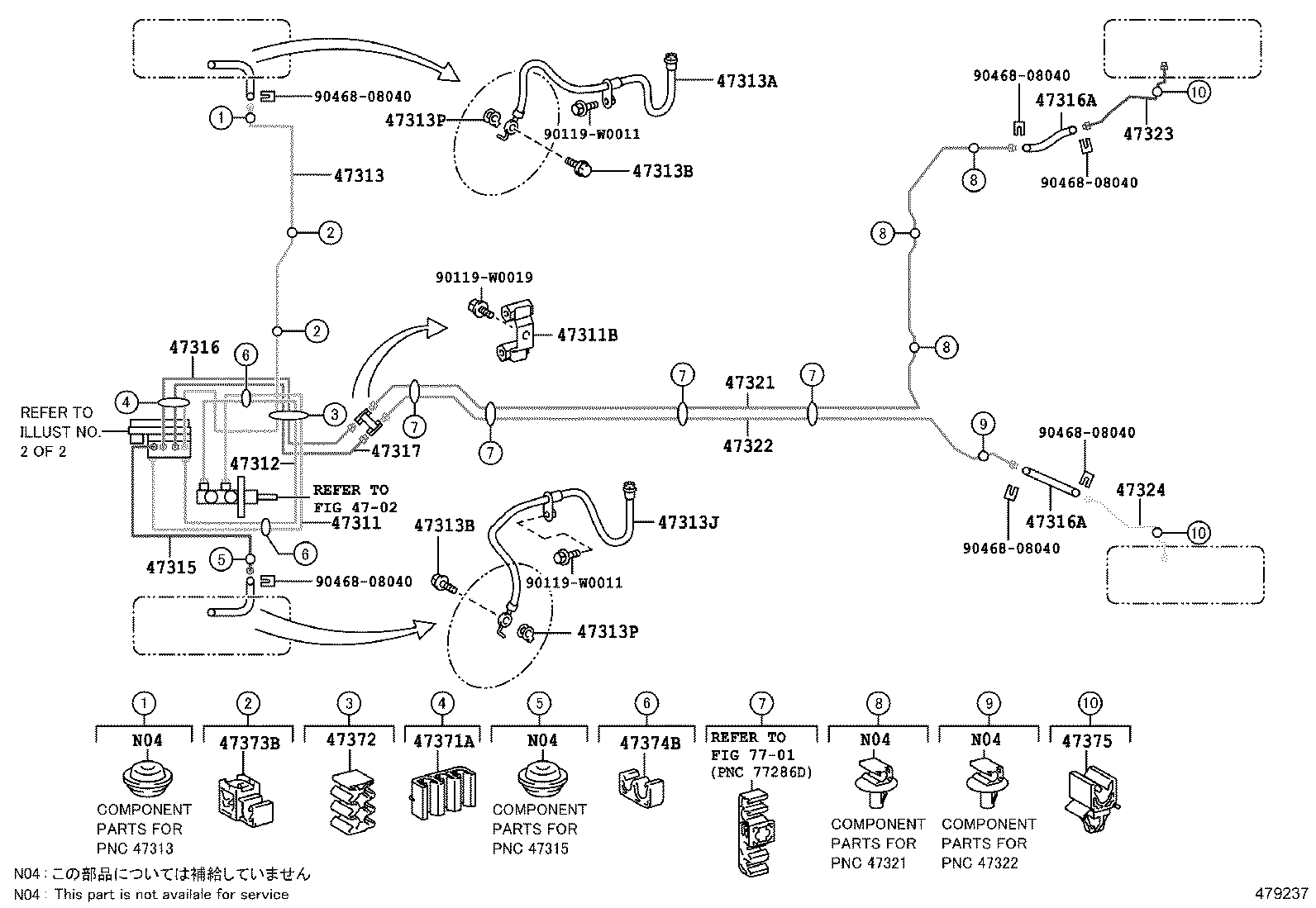

Exploded illustration 479237 47316 — TUBE, FRONT BRAKE, NO.6 (7 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (3 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 90119W0011 — not listed in this catalogue 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 47312 — TUBE, FRONT BRAKE, NO.2 (12 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (12 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (8 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (7 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (4 parts) 90119W0019 — not listed in this catalogue 47311 — TUBE, FRONT BRAKE, NO.1 (12 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (3 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (3 parts) 47323 — TUBE, REAR BRAKE, NO.3 (5 parts) 47324 — TUBE, REAR BRAKE, NO.4 (5 parts) 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 47321 — TUBE, REAR BRAKE, NO.1 (7 parts) 47322 — TUBE, REAR BRAKE, NO.2 (7 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (4 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 4702 — not listed in this catalogue 7701 — not listed in this catalogue 90119W0011 — not listed in this catalogue 47373B — CLAMP, BRAKE TUBE, NO.3 (10 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (6 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (7 parts)
479237 · 24 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
131 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-0H080 note Tube, Front Brake, NO.1
2014-05 → 2018-05 ended
KGB40 RHD 5D 5F —
47311-0H090 note Tube, Front Brake, NO.1
2014-05 → 2018-05 ended
KGB40 LHD 5F —
47311-0H100 note Tube, Front Brake, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
47311-0H110 note Tube, Front Brake, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
47311-0H120 note Tube, Front Brake, NO.1
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
47311-0H130 note Tube, Front Brake, NO.1
2017-02 → 2018-05 ended
KGB40 LHD 5F —
47311-0H140 note Tube, Front Brake, NO.1
2016-12 → 2018-05 ended
KGB40,PAB40 RHD —
47311-0H150 note Tube, Front Brake, NO.1
2016-12 → 2018-05 ended
KGB40,PAB40 LHD —
47311-0H140 Tube, Front Brake, NO.1
2018-05 → 2021-05 ended
KGB40 RHD 3D —
47311-0H140 Tube, Front Brake, NO.1
2018-05 → —
KGB40 RHD 5D —
47311-0H150 Tube, Front Brake, NO.1
2018-05 → 2021-05 ended
KGB40 LHD 3D —
47311-0H150 Tube, Front Brake, NO.1
2018-05 → —
KGB40 LHD 5D —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2014-05 → 2018-05 ended
KGB40,PAB40 —
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2018-05 → 2019-08 ended
KGB40 —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2019-09 → 2021-05 ended
KGB40 3D —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2019-09 → —
KGB40 5D —
47312 — Tube, Front Brake, NO.2
47312-0H080 note Tube, Front Brake, NO.2
2014-05 → 2018-05 ended
KGB40 RHD 5D 5F —
47312-0H090 note Tube, Front Brake, NO.2
2014-05 → 2018-05 ended
KGB40 LHD 5F —
47312-0H100 note Tube, Front Brake, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
47312-0H110 note Tube, Front Brake, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
47312-0H120 note Tube, Front Brake, NO.2
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
47312-0H130 note Tube, Front Brake, NO.2
2017-02 → 2018-05 ended
KGB40 LHD 5F —
47312-0H140 note Tube, Front Brake, NO.2
2016-12 → 2018-05 ended
KGB40,PAB40 RHD —
47312-0H150 note Tube, Front Brake, NO.2
2016-12 → 2018-05 ended
KGB40,PAB40 LHD —
47312-0H140 Tube, Front Brake, NO.2
2018-05 → 2021-05 ended
KGB40 RHD 3D —
47312-0H140 Tube, Front Brake, NO.2
2018-05 → —
KGB40 RHD 5D —
47312-0H150 Tube, Front Brake, NO.2
2018-05 → 2021-05 ended
KGB40 LHD 3D —
47312-0H150 Tube, Front Brake, NO.2
2018-05 → —
KGB40 LHD 5D —
47313 — Tube, Front Brake, NO.3
47313-0H070 note Tube, Front Brake, NO.3
2014-05 → 2018-05 ended
KGB40 RHD 5D 5F —
47313-0H080 note Tube, Front Brake, NO.3
2014-05 → 2018-05 ended
KGB40 LHD 5F —
47313-0H090 note Tube, Front Brake, NO.3
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
47313-0H100 note Tube, Front Brake, NO.3
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
47313-0H120 note Tube, Front Brake, NO.3
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
47313-0H130 note Tube, Front Brake, NO.3
2017-02 → 2018-05 ended
KGB40 LHD 5F —
47313-0H140 note Tube, Front Brake, NO.3
2016-12 → 2018-05 ended
KGB40,PAB40 RHD —
47313-0H150 note Tube, Front Brake, NO.3
2016-12 → 2018-05 ended
KGB40,PAB40 LHD —
47313-0H140 Tube, Front Brake, NO.3
2018-05 → 2021-05 ended
KGB40 RHD 3D —
47313-0H140 Tube, Front Brake, NO.3
2018-05 → —
KGB40 RHD 5D —
47313-0H150 Tube, Front Brake, NO.3
2018-05 → 2021-05 ended
KGB40 LHD 3D —
47313-0H150 Tube, Front Brake, NO.3
2018-05 → —
KGB40 LHD 5D —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-W2060 Hose, Flexible, NO.1(FOR FRONT)
2014-05 → 2018-05 ended
KGB40,PAB40 —
90947-W2060 Hose, Flexible, NO.1(FOR FRONT)
2018-05 → 2021-05 ended
KGB40 3D —
90947-W2060 Hose, Flexible, NO.1(FOR FRONT)
2018-05 → —
KGB40 5D —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2014-05 → 2018-05 ended
KGB40,PAB40 —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2018-05 → 2021-05 ended
KGB40 3D —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2018-05 → —
KGB40 5D —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-W2061 Hose, Flexible, NO.2(FOR FRONT)
2014-05 → 2018-05 ended
KGB40,PAB40 —
90947-W2061 Hose, Flexible, NO.2(FOR FRONT)
2018-05 → 2021-05 ended
KGB40 3D —
90947-W2061 Hose, Flexible, NO.2(FOR FRONT)
2018-05 → —
KGB40 5D —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2014-05 → 2018-05 ended
KGB40,PAB40 —
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2018-05 → 2021-05 ended
KGB40 3D —
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2018-05 → —
KGB40 5D —
47315 — Tube, Front Brake, NO.5
47315-0H040 note Tube, Front Brake, NO.5
2014-05 → 2017-02 ended
KGB40 5D 5F;KGB40 LHD +2 —
47315-0H040 note Tube, Front Brake, NO.5
2017-02 → 2018-05 ended
KGB40 5D 5F;KGB40 LHD +2 —
47315-0H050 Tube, Front Brake, NO.5
2014-05 → 2017-01 ended
KGB40,PAB40 —
47315-0H050 note Tube, Front Brake, NO.5
2017-01 → 2018-05 ended
KGB40,PAB40 —
47315-0H060 note Tube, Front Brake, NO.5
2017-02 → 2018-05 ended
KGB40 5D 5F;KGB40 LHD +2 —
47315-0H070 note Tube, Front Brake, NO.5
2017-01 → 2018-05 ended
KGB40,PAB40 —
47315-0H070 Tube, Front Brake, NO.5
2018-05 → 2021-05 ended
KGB40 3D —
47315-0H070 Tube, Front Brake, NO.5
2018-05 → —
KGB40 5D —
47316 — Tube, Front Brake, NO.6
47316-0H040 note Tube, Front Brake, NO.6
2014-05 → 2018-05 ended
KGB40 5D 5F;KGB40 LHD +2 —
47316-0H050 note Tube, Front Brake, NO.6
2014-05 → 2018-05 ended
KGB40,PAB40 —
47316-0H060 note Tube, Front Brake, NO.6
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
47316-0H060 note Tube, Front Brake, NO.6
2017-02 → 2018-05 ended
KGB40 LHD 5F —
47316-0H070 note Tube, Front Brake, NO.6
2016-12 → 2018-05 ended
KGB40,PAB40 —
47316-0H070 Tube, Front Brake, NO.6
2018-05 → 2021-05 ended
KGB40 3D —
47316-0H070 Tube, Front Brake, NO.6
2018-05 → —
KGB40 5D —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-W2062 Hose, Flexible(FOR REAR BRAKE TUBE)
2014-05 → 2018-05 ended
KGB40,PAB40 —
90947-W2062 Hose, Flexible(FOR REAR BRAKE TUBE)
2018-05 → —
KGB40 5D —
90947-W2062 Hose, Flexible(FOR REAR BRAKE TUBE)
2018-05 → 2021-05 ended
KGB40 3D —
47317 — Tube, Front Brake, NO.7
47317-0H040 note Tube, Front Brake, NO.7
2014-05 → 2018-05 ended
KGB40 5D 5F;KGB40 LHD +2 —
47317-0H050 note Tube, Front Brake, NO.7
2014-05 → 2018-05 ended
KGB40,PAB40 —
47317-0H060 note Tube, Front Brake, NO.7
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
47317-0H060 note Tube, Front Brake, NO.7
2017-02 → 2018-05 ended
KGB40 LHD 5F —
47317-0H070 note Tube, Front Brake, NO.7
2016-12 → 2018-05 ended
KGB40,PAB40 —
47317-0H070 Tube, Front Brake, NO.7
2018-05 → 2021-05 ended
KGB40 3D —
47317-0H070 Tube, Front Brake, NO.7
2018-05 → —
KGB40 5D —
47321 — Tube, Rear Brake, NO.1
47321-0H020 Tube, Rear Brake, NO.1
2014-05 → 2017-01 ended
KGB40,PAB40 —
47321-0H020 note Tube, Rear Brake, NO.1
2017-01 → 2018-05 ended
KGB40,PAB40 —
47321-0H030 note Tube, Rear Brake, NO.1
2017-01 → 2018-05 ended
KGB40,PAB40 —
47321-0H020 note Tube, Rear Brake, NO.1
2018-05 → 2021-05 ended
KGB40 3D —
47321-0H020 note Tube, Rear Brake, NO.1
2018-05 → —
KGB40 5D —
47321-0H030 note Tube, Rear Brake, NO.1
2018-05 → —
KGB40 5D —
47321-0H030 note Tube, Rear Brake, NO.1
2018-05 → 2021-05 ended
KGB40 3D —
47322 — Tube, Rear Brake, NO.2
47322-0H020 Tube, Rear Brake, NO.2
2014-05 → 2017-01 ended
KGB40,PAB40 —
47322-0H020 note Tube, Rear Brake, NO.2
2017-01 → 2018-05 ended
KGB40,PAB40 —
47322-0H030 note Tube, Rear Brake, NO.2
2017-01 → 2018-05 ended
KGB40,PAB40 —
47322-0H020 note Tube, Rear Brake, NO.2
2018-05 → 2021-05 ended
KGB40 3D —
47322-0H020 note Tube, Rear Brake, NO.2
2018-05 → —
KGB40 5D —
47322-0H030 note Tube, Rear Brake, NO.2
2018-05 → 2021-05 ended
KGB40 3D —
47322-0H030 note Tube, Rear Brake, NO.2
2018-05 → —
KGB40 5D —
47323 — Tube, Rear Brake, NO.3
47323-0H020 Tube, Rear Brake, NO.3
2014-05 → 2017-08 ended
KGB40,PAB40 —
47323-0H020 note Tube, Rear Brake, NO.3
2017-08 → 2018-05 ended
KGB40,PAB40 —
47323-0H030 note Tube, Rear Brake, NO.3
2017-08 → 2018-05 ended
KGB40,PAB40 —
47323-0H030 Tube, Rear Brake, NO.3
2018-05 → 2021-05 ended
KGB40 3D —
47323-0H030 Tube, Rear Brake, NO.3
2018-05 → —
KGB40 5D —
47324 — Tube, Rear Brake, NO.4
47324-0H020 Tube, Rear Brake, NO.4
2014-05 → 2017-08 ended
KGB40,PAB40 —
47324-0H020 note Tube, Rear Brake, NO.4
2017-08 → 2018-05 ended
KGB40,PAB40 —
47324-0H030 note Tube, Rear Brake, NO.4
2017-08 → 2018-05 ended
KGB40,PAB40 —
47324-0H030 Tube, Rear Brake, NO.4
2018-05 → —
KGB40 5D —
47324-0H030 Tube, Rear Brake, NO.4
2018-05 → 2021-05 ended
KGB40 3D —
47371A — Clamp, Brake Tube, NO.1
90949-01A25 note Clamp, Brake Tube, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 —
90949-01D92 note Clamp, Brake Tube, NO.1
2016-12 → 2018-05 ended
KGB40,PAB40 —
90949-01D92 Clamp, Brake Tube, NO.1
2018-05 → 2021-05 ended
KGB40 3D —
90949-01D92 Clamp, Brake Tube, NO.1
2018-05 → —
KGB40 5D —
47372 — Clamp, Brake Tube, NO.2
90464-00898 note Clamp, Brake Tube, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
90949-01970 note Clamp, Brake Tube, NO.2
2014-05 → 2018-05 ended
KGB40 5D 5F;KGB40 LHD +2 —
90949-01D99 note Clamp, Brake Tube, NO.2
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
90949-01D99 note Clamp, Brake Tube, NO.2
2017-02 → 2018-05 ended
KGB40 LHD 5F —
90949-01E44 note Clamp, Brake Tube, NO.2
2016-12 → 2018-05 ended
KGB40,PAB40 —
90949-01E44 Clamp, Brake Tube, NO.2
2018-05 → 2021-05 ended
KGB40 3D —
90949-01E44 Clamp, Brake Tube, NO.2
2018-05 → —
KGB40 5D —
47373B — Clamp, Brake Tube, NO.3
47371-13040 note Clamp, Brake Tube, NO.3
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
90464-00955 note Clamp, Brake Tube, NO.3
2017-01 → 2018-05 ended
KGB40 RHD 5D 5F —
90949-01B45 note Clamp, Brake Tube, NO.3
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
90949-01D02 note Clamp, Brake Tube, NO.3
2014-05 → 2018-05 ended
KGB40 RHD 5D 5F —
90949-01D90 note Clamp, Brake Tube, NO.3
2016-12 → 2018-05 ended
KGB40,PAB40 LHD —
90949-01E55 note Clamp, Brake Tube, NO.3
2016-12 → 2018-05 ended
KGB40,PAB40 RHD —
90949-01D90 Clamp, Brake Tube, NO.3
2018-05 → 2021-05 ended
KGB40 LHD 3D —
90949-01D90 Clamp, Brake Tube, NO.3
2018-05 → —
KGB40 LHD 5D —
90949-01E55 Clamp, Brake Tube, NO.3
2018-05 → 2021-05 ended
KGB40 RHD 3D —
90949-01E55 Clamp, Brake Tube, NO.3
2018-05 → —
KGB40 RHD 5D —
47374B — Clamp, Brake Tube, NO.4
90464-00899 note Clamp, Brake Tube, NO.4
2014-05 → 2018-05 ended
KGB40,PAB40 —
90949-01972 note Clamp, Brake Tube, NO.4
2014-05 → 2018-05 ended
KGB40 LHD 5F —
90949-01D91 note Clamp, Brake Tube, NO.4
2017-02 → 2018-05 ended
KGB40 LHD 5F —
90949-01E23 note Clamp, Brake Tube, NO.4
2016-12 → 2018-05 ended
KGB40,PAB40 —
90949-01E23 Clamp, Brake Tube, NO.4
2018-05 → 2021-05 ended
KGB40 3D —
90949-01E23 Clamp, Brake Tube, NO.4
2018-05 → —
KGB40 5D —
47375 — Clamp, Brake Tube, NO.5
90469-W0001 Clamp, Brake Tube, NO.5
2014-05 → 2018-05 ended
KGB40,PAB40 —
90469-W0001 Clamp, Brake Tube, NO.5
2018-05 → 2021-05 ended
KGB40 3D —
90469-W0001 Clamp, Brake Tube, NO.5
2018-05 → —
KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
