Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

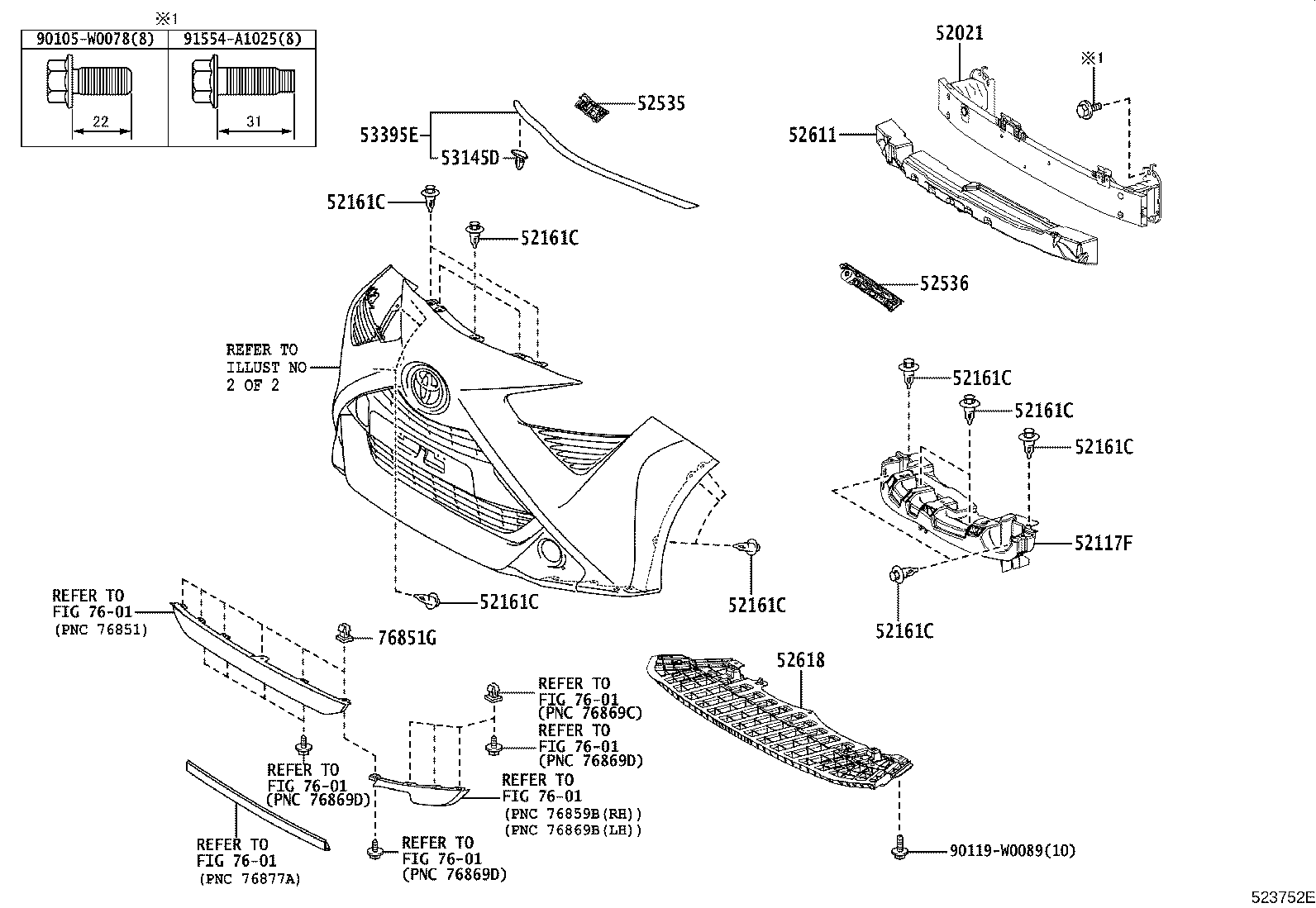

Exploded illustration 523752E 90105W0078 — not listed in this catalogue 91554A1025 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (7 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (7 parts) 53145D — CLIP, RADIATOR GRILLE (7 parts) 53395E — SEAL, HOOD TO FRONT END PANEL (7 parts) 52117F — SUPPORT, FRONT BUMPER, UPPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52161C — PIECE, FRONT BUMPER (7 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (3 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (3 parts) 90119W0089 — not listed in this catalogue 52161C — PIECE, FRONT BUMPER (7 parts) 76851G — GROMMET, SCREW, NO.1 (3 parts)
523752E · 17 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-0H031 Reinforcement Sub-assy, Front Bumper
2014-05 → 2018-05 ended
KGB40,PAB40 —
52021-0H031 Reinforcement Sub-assy, Front Bumper
2018-05 → 2021-04 ended
KGB40 3D —
52021-0H031 Reinforcement Sub-assy, Front Bumper
2018-05 → —
KGB40 5D —
52117F — Support, Front Bumper, Upper
52117-0H010 Support, Front Bumper, Upper
2014-05 → 2018-05 ended
KGB40,PAB40 —
52117-0H010 note Support, Front Bumper, Upper
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52117-0H010 note Support, Front Bumper, Upper
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52117-0H010 note Support, Front Bumper, Upper
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52117-0H010 note Support, Front Bumper, Upper
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52117-0H040 Support, Front Bumper, Upper
2018-05 → 2021-04 ended
KGB40 3D —
52117-0H040 Support, Front Bumper, Upper
2018-05 → —
KGB40 5D —
52161C — Piece, Front Bumper
52161-02030 note Piece, Front Bumper
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52161-02030 note Piece, Front Bumper
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52161-02030 note Piece, Front Bumper
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52161-02030 note Piece, Front Bumper
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52161-02030 Piece, Front Bumper
2014-05 → 2018-05 ended
KGB40,PAB40 —
52161-02030 Piece, Front Bumper
2018-05 → 2021-04 ended
KGB40 3D —
52161-02030 Piece, Front Bumper
2018-05 → —
KGB40 5D —
52535 — Retainer, Front Bumper Side, RH
52535-0H040 Retainer, Front Bumper Side, RH
2014-05 → 2018-05 ended
KGB40,PAB40 —
52535-0H040 note Retainer, Front Bumper Side, RH
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52535-0H040 note Retainer, Front Bumper Side, RH
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52535-0H040 note Retainer, Front Bumper Side, RH
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52535-0H040 note Retainer, Front Bumper Side, RH
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52535-0H040 Retainer, Front Bumper Side, RH
2018-05 → 2021-04 ended
KGB40 3D —
52535-0H040 Retainer, Front Bumper Side, RH
2018-05 → —
KGB40 5D —
52536 — Retainer, Front Bumper Side, LH
52536-0H040 note Retainer, Front Bumper Side, LH
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52536-0H040 note Retainer, Front Bumper Side, LH
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
52536-0H040 note Retainer, Front Bumper Side, LH
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52536-0H040 Retainer, Front Bumper Side, LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
52536-0H040 note Retainer, Front Bumper Side, LH
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
52536-0H040 Retainer, Front Bumper Side, LH
2018-05 → 2021-04 ended
KGB40 3D —
52536-0H040 Retainer, Front Bumper Side, LH
2018-05 → —
KGB40 5D —
52611 — Absorber, Front Bumper Energy
52611-0H020 Absorber, Front Bumper Energy
2014-05 → 2018-05 ended
KGB40,PAB40 —
52611-0H020 Absorber, Front Bumper Energy
2018-05 → 2021-04 ended
KGB40 3D —
52611-0H020 Absorber, Front Bumper Energy
2018-05 → —
KGB40 5D —
52618 — Absorber, Front Bumper, Lower
52618-0H030 Absorber, Front Bumper, Lower
2014-05 → 2018-05 ended
KGB40,PAB40 —
52618-0H030 Absorber, Front Bumper, Lower
2018-05 → 2021-04 ended
KGB40 3D —
52618-0H030 Absorber, Front Bumper, Lower
2018-05 → —
KGB40 5D —
53145D — Clip, Radiator Grille
53145-60030 note Clip, Radiator Grille
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
53145-60030 note Clip, Radiator Grille
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
53145-60030 note Clip, Radiator Grille
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
53145-60030 note Clip, Radiator Grille
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
53145-60030 Clip, Radiator Grille
2014-05 → 2018-05 ended
KGB40,PAB40 —
53145-60030 Clip, Radiator Grille
2018-05 → 2021-04 ended
KGB40 3D —
53145-60030 Clip, Radiator Grille
2018-05 → —
KGB40 5D —
53395E — Seal, Hood TO Front End Panel
53395-0H050 Seal, Hood TO Front End Panel
2014-05 → 2018-05 ended
KGB40,PAB40 —
53395-0H050 note Seal, Hood TO Front End Panel
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
53395-0H050 note Seal, Hood TO Front End Panel
2014-05 → 2018-05 ended
KGB40 5D 5F LV1;KGB40 +4 —
53395-0H050 note Seal, Hood TO Front End Panel
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
53395-0H050 note Seal, Hood TO Front End Panel
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
53395-0H050 Seal, Hood TO Front End Panel
2018-05 → 2021-04 ended
KGB40 3D —
53395-0H050 Seal, Hood TO Front End Panel
2018-05 → —
KGB40 5D —
76851G — Grommet, Screw, NO.1
90189-06237 Grommet, Screw, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 —
90189-06237 Grommet, Screw, NO.1
2018-05 → 2021-04 ended
KGB40 3D —
90189-06237 Grommet, Screw, NO.1
2018-05 → —
KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
