Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

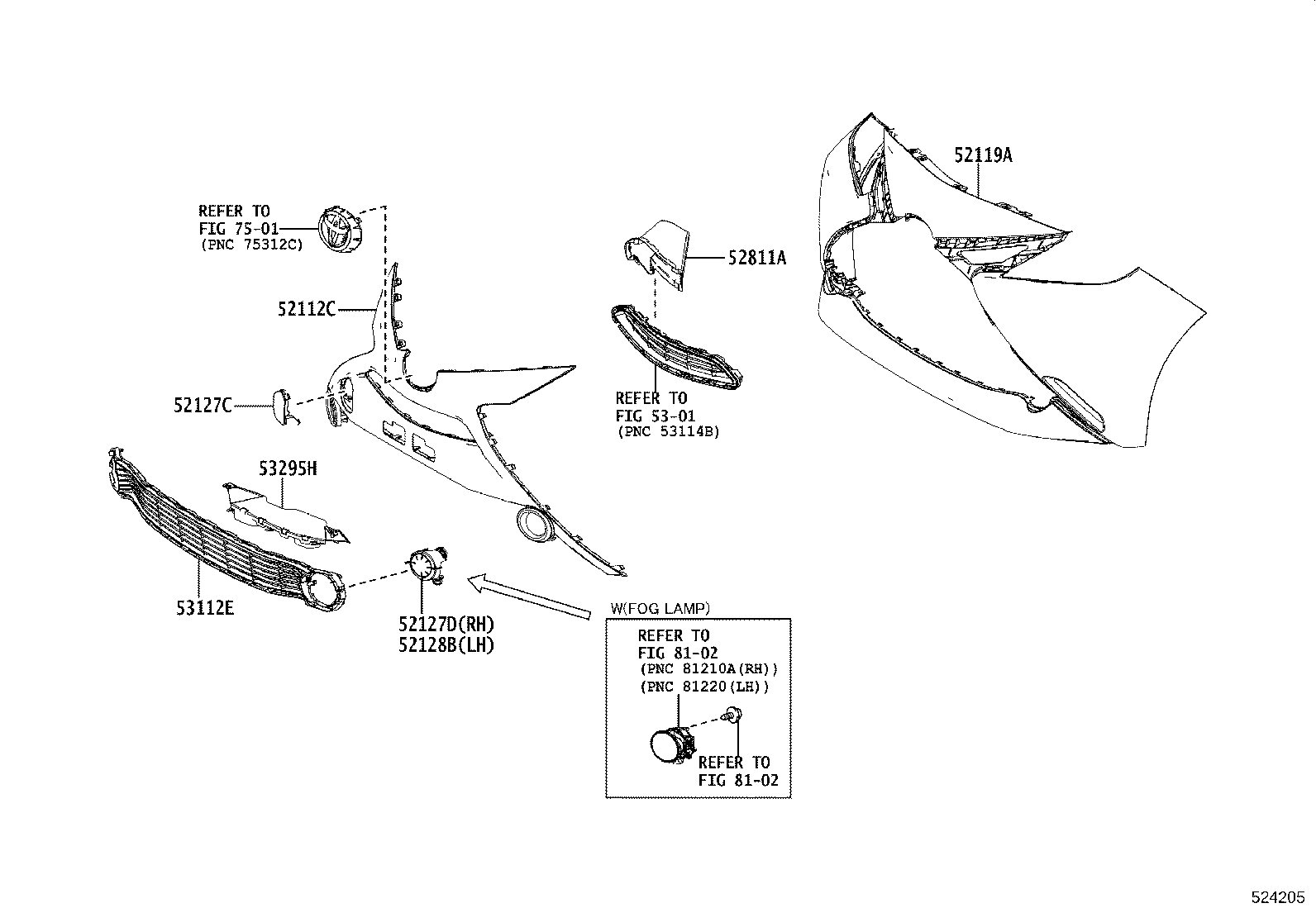

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52112C — Extension, Front Bumper | ||||
| 52112-0H010 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52112-0H010 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H010 |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 52112-0H900 |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H900 note |
Extension, Front Bumper
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52112-0H080 |
Extension, Front Bumper
2018-05 → —
|
KGB40 5D | — | |
| 52112-0H080 |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → —
|
KGB40 5D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52112-0H902 note |
Extension, Front Bumper
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-0H914 |
Cover, Front Bumper
2014-05 → 2014-09
ended
|
KGB40,PAB40 | — | |
| 52119-0H914 note |
Cover, Front Bumper
2014-05 → 2014-09
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52119-0H914 note |
Cover, Front Bumper
2014-05 → 2014-09
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52119-0H914 note |
Cover, Front Bumper
2014-05 → 2014-09
ended
|
KGB40,PAB40 LV1 | — | |
| 52119-0H914 note |
Cover, Front Bumper
2014-05 → 2014-09
ended
|
KGB40,PAB40 LV1 | — | |
| 52119-0H918 |
Cover, Front Bumper
2014-09 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 52119-0H918 note |
Cover, Front Bumper
2014-09 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52119-0H918 note |
Cover, Front Bumper
2014-09 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52119-0H918 note |
Cover, Front Bumper
2014-09 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52119-0H918 note |
Cover, Front Bumper
2014-09 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52119-0H920 |
Cover, Front Bumper
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 52119-0H920 |
Cover, Front Bumper
2018-05 → —
|
KGB40 5D | — | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-0H180 |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 52127-0H180 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52127-0H180 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52127-0H903 |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52127-0H903 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52127-0H903 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52127-0H903 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52127-0H903 note |
Cover, Front Bumper Hole
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52127-0H250 |
Cover, Front Bumper Hole
2018-05 → —
|
KGB40 5D | — | |
| 52127-0H250 |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2021-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2020-06 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → —
|
KGB40 5D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127-0H907 note |
Cover, Front Bumper Hole
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 81481-0H130 |
Cover, Front Bumper Hole, RH
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 81481-0H130 note |
Cover, Front Bumper Hole, RH
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 81481-0H130 note |
Cover, Front Bumper Hole, RH
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 81481-0H130 note |
Cover, Front Bumper Hole, RH
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 81481-0H130 note |
Cover, Front Bumper Hole, RH
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 81481-0H160 |
Cover, Front Bumper Hole, RH
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 81481-0H160 |
Cover, Front Bumper Hole, RH
2018-05 → —
|
KGB40 5D | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 81482-0H130 |
Cover, Front Bumper Hole, LH
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 81482-0H130 note |
Cover, Front Bumper Hole, LH
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 81482-0H130 note |
Cover, Front Bumper Hole, LH
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 81482-0H130 note |
Cover, Front Bumper Hole, LH
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 81482-0H130 note |
Cover, Front Bumper Hole, LH
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 81482-0H160 |
Cover, Front Bumper Hole, LH
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 81482-0H160 |
Cover, Front Bumper Hole, LH
2018-05 → —
|
KGB40 5D | — | |
| 52811A — Duct, Cool Air Intake, NO.1 | ||||
| 52811-0H070 |
Duct, Cool Air Intake, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 52811-0H070 note |
Duct, Cool Air Intake, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52811-0H070 note |
Duct, Cool Air Intake, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 52811-0H070 note |
Duct, Cool Air Intake, NO.1
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52811-0H070 note |
Duct, Cool Air Intake, NO.1
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 52811-0H080 |
Duct, Cool Air Intake, NO.1
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 52811-0H080 |
Duct, Cool Air Intake, NO.1
2018-05 → —
|
KGB40 5D | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-0H150 |
Grille, Radiator, Lower NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 53112-0H170 |
Grille, Radiator, Lower NO.1
2018-05 → —
|
KGB40 5D | — | |
| 53112-0H170 |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-05
ended
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2021-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2020-06 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → —
|
KGB40 5D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2019-05
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53112-0H900 note |
Grille, Radiator, Lower NO.1
2019-05 → 2020-06
ended
|
KGB40 LV1 | — | |
| 53295H — Deflector, Radiator Lower Air | ||||
| 53295-0H010 |
Deflector, Radiator Lower Air
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 53295-0H010 note |
Deflector, Radiator Lower Air
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 53295-0H010 note |
Deflector, Radiator Lower Air
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 53295-0H010 note |
Deflector, Radiator Lower Air
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 53295-0H010 note |
Deflector, Radiator Lower Air
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 53295-0H040 |
Deflector, Radiator Lower Air
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 53295-0H040 |
Deflector, Radiator Lower Air
2018-05 → —
|
KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
