Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

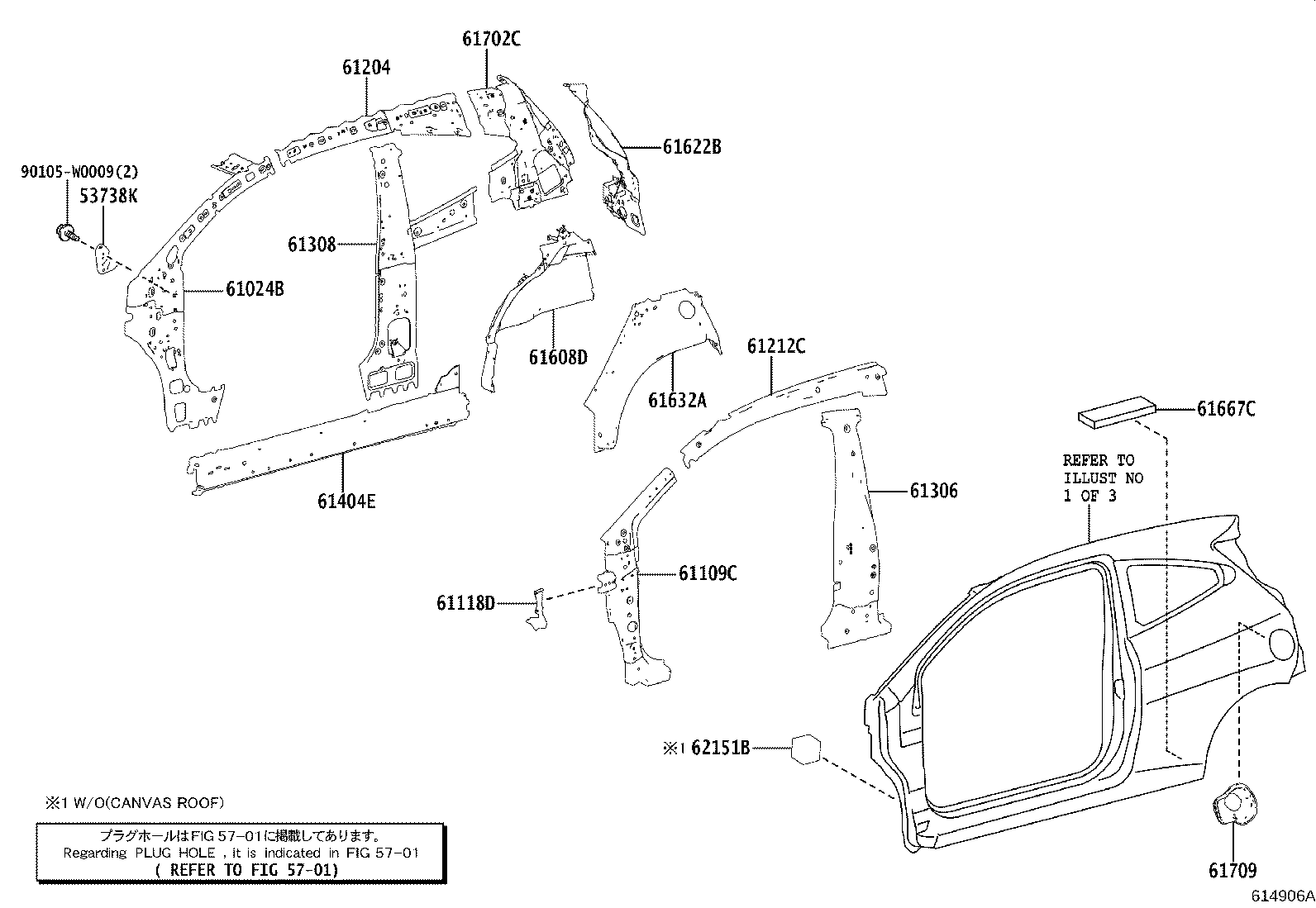

Exploded illustration 614906A 53738K — PLATE, FRONT APRON TO COWL SIDE MEMBER, LH (4 parts) 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (3 parts) 61109C — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH (3 parts) 61118D — GUSSET, SIDE PANEL TO COWL, LH (3 parts) 61212C — RAIL, ROOF SIDE, LH (4 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (4 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (4 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (4 parts) 61608D — PANEL, QUARTER WHEEL HOUSE, INNER LH (3 parts) 61622B — TROUGH, BACK DOOR OPENING, FRONT LH (3 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (3 parts) 61702C — PANEL SUB-ASSY, ROOF SIDE, OUTER LH (4 parts) 61709 — BOX SUB-ASSY, FUEL INLET (3 parts) 62151B — PAD, COWL SIDE SILENCER (8 parts) 90105W0009 — not listed in this catalogue 61667C — SEAL, QAURTER PANEL, NO.1 (2 parts) 5701 — not listed in this catalogue
614906A · 16 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
53738K — Plate, Front Apron TO Cowl Side Member, LH
53738-0H020 Plate, Front Apron TO Cowl Side Member, LH
2014-05 → 2016-09 ended
KGB40,PAB40 —
53738-0H021 Plate, Front Apron TO Cowl Side Member, LH
2016-10 → 2018-05 ended
KGB40,PAB40 —
53738-0H021 Plate, Front Apron TO Cowl Side Member, LH
2018-05 → —
KGB40 5D —
53738-0H021 Plate, Front Apron TO Cowl Side Member, LH
2018-05 → 2021-04 ended
KGB40 3D —
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-0H020 Pillar Sub-assy, Front Body, Inner LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61024-0H020 Pillar Sub-assy, Front Body, Inner LH
2018-05 → 2021-04 ended
KGB40 3D —
61024-0H020 Pillar Sub-assy, Front Body, Inner LH
2018-05 → —
KGB40 5D —
61109C — Reinforcement Sub-assy, Front Pillar, Lower LH
61109-0H020 Reinforcement Sub-assy, Front Pillar, Lower LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61109-0H020 Reinforcement Sub-assy, Front Pillar, Lower LH
2018-05 → 2021-04 ended
KGB40 3D —
61109-0H020 Reinforcement Sub-assy, Front Pillar, Lower LH
2018-05 → —
KGB40 5D —
61118D — Gusset, Side Panel TO Cowl, LH
61118-0H010 Gusset, Side Panel TO Cowl, LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61118-0H010 Gusset, Side Panel TO Cowl, LH
2018-05 → 2021-04 ended
KGB40 3D —
61118-0H010 Gusset, Side Panel TO Cowl, LH
2018-05 → —
KGB40 5D —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-0H060 Rail Sub-assy, Roof Side, Inner LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61204-0H060 Rail Sub-assy, Roof Side, Inner LH
2018-05 → 2021-04 ended
KGB40 3D —
61212C — Rail, Roof Side, LH
61212-0H050 Rail, Roof Side, LH
2014-05 → 2018-05 ended
KGB40,PAB40 5D —
61212-0H060 Rail, Roof Side, LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61212-0H050 Rail, Roof Side, LH
2018-05 → —
KGB40 5D —
61212-0H060 Rail, Roof Side, LH
2018-05 → 2021-04 ended
KGB40 3D —
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-0H050 Reinforce Sub-assy, Center Body Pillar, Lower LH
2014-05 → 2018-05 ended
KGB40,PAB40 5D —
61306-0H060 Reinforce Sub-assy, Center Body Pillar, Lower LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61306-0H050 Reinforce Sub-assy, Center Body Pillar, Lower LH
2018-05 → —
KGB40 5D —
61306-0H060 Reinforce Sub-assy, Center Body Pillar, Lower LH
2018-05 → 2021-04 ended
KGB40 3D —
61308 — Pillar Sub-assy, Center Body, Inner LH
61308-0H050 Pillar Sub-assy, Center Body, Inner LH
2014-05 → 2018-05 ended
KGB40,PAB40 5D —
61308-0H060 Pillar Sub-assy, Center Body, Inner LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61308-0H050 Pillar Sub-assy, Center Body, Inner LH
2018-05 → —
KGB40 5D —
61308-0H060 Pillar Sub-assy, Center Body, Inner LH
2018-05 → 2021-04 ended
KGB40 3D —
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-0H030 Reinforce Sub-assy, Rocker, Outer LH
2014-05 → 2018-05 ended
KGB40,PAB40 5D —
61404-0H040 Reinforce Sub-assy, Rocker, Outer LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61404-0H030 Reinforce Sub-assy, Rocker, Outer LH
2018-05 → —
KGB40 5D —
61404-0H040 Reinforce Sub-assy, Rocker, Outer LH
2018-05 → 2021-04 ended
KGB40 3D —
61608D — Panel, Quarter Wheel House, Inner LH
61608-0H030 Panel, Quarter Wheel House, Inner LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61608-0H030 Panel, Quarter Wheel House, Inner LH
2018-05 → 2021-04 ended
KGB40 3D —
61608-0H030 Panel, Quarter Wheel House, Inner LH
2018-05 → —
KGB40 5D —
61622B — Trough, Back Door Opening, Front LH
61064-0H030 Trough, Back Door Opening, Front LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61064-0H030 Trough, Back Door Opening, Front LH
2018-05 → 2021-04 ended
KGB40 3D —
61064-0H030 Trough, Back Door Opening, Front LH
2018-05 → —
KGB40 5D —
61632A — Panel, Quarter Wheel House, Outer LH
61632-0H040 Panel, Quarter Wheel House, Outer LH
2014-05 → 2018-05 ended
KGB40,PAB40 —
61632-0H040 Panel, Quarter Wheel House, Outer LH
2018-05 → 2021-04 ended
KGB40 3D —
61632-0H040 Panel, Quarter Wheel House, Outer LH
2018-05 → —
KGB40 5D —
61667C — Seal, Qaurter Panel, NO.1
61667-0H010 Seal, Qaurter Panel, NO.1
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61667-0H010 Seal, Qaurter Panel, NO.1
2018-05 → 2021-04 ended
KGB40 3D —
61702C — Panel Sub-assy, Roof Side, Outer LH
61702-0H050 Panel Sub-assy, Roof Side, Outer LH
2014-05 → 2018-05 ended
KGB40,PAB40 5D —
61702-0H060 Panel Sub-assy, Roof Side, Outer LH
2014-06 → 2018-05 ended
KGB40,PAB40 3D —
61702-0H050 Panel Sub-assy, Roof Side, Outer LH
2018-05 → —
KGB40 5D —
61702-0H060 Panel Sub-assy, Roof Side, Outer LH
2018-05 → 2021-04 ended
KGB40 3D —
61709 — Box Sub-assy, Fuel Inlet
61709-0H010 Box Sub-assy, Fuel Inlet
2014-05 → 2018-05 ended
KGB40,PAB40 —
61709-0H010 Box Sub-assy, Fuel Inlet
2018-05 → 2021-04 ended
KGB40 3D —
61709-0H010 Box Sub-assy, Fuel Inlet
2018-05 → —
KGB40 5D —
62151B — Pad, Cowl Side Silencer
62151-0H010 Pad, Cowl Side Silencer
2014-05 → 2018-05 ended
KGB40,PAB40 —
62151-0H010 note Pad, Cowl Side Silencer
2018-05 → 2019-04 ended
KGB40 5D LV1 —
62151-0H010 note Pad, Cowl Side Silencer
2018-05 → 2019-04 ended
KGB40 5D LV1 —
62151-0H010 Pad, Cowl Side Silencer
2018-05 → 2021-04 ended
KGB40 3D —
62151-0H010 note Pad, Cowl Side Silencer
2018-05 → 2022-01 ended
KGB40 5D LV1 —
62151-0H010 note Pad, Cowl Side Silencer
2018-05 → 2022-01 ended
KGB40 5D LV1 —
62151-0H010 Pad, Cowl Side Silencer
2018-05 → —
KGB40 5D —
62151-0H010 note Pad, Cowl Side Silencer
2018-05 → —
KGB40 5D LV1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
