Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

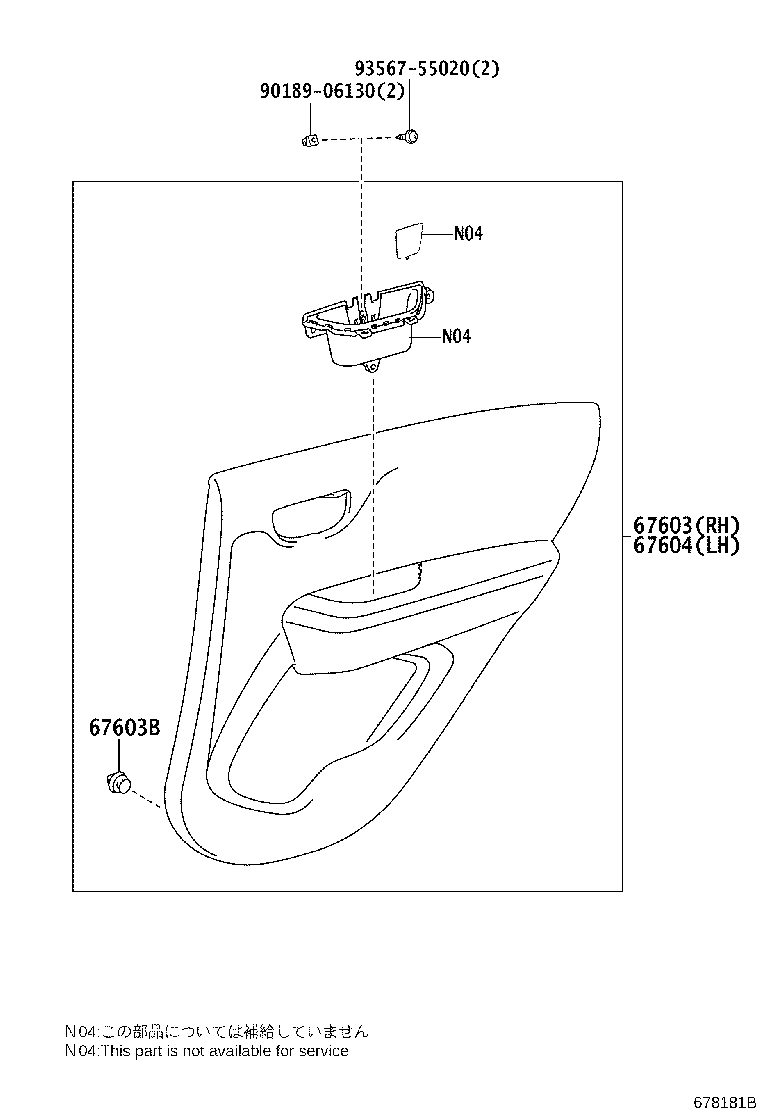

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-0H020-B0 note |
Board Sub-assy, Rear Door Trim, RH
2014-05 → 2018-05
ended
|
KGB40 5D LEDIN | — | |
| 67630-0H020-B0 note |
Board Sub-assy, Rear Door Trim, RH
2014-05 → 2018-05
ended
|
KGB40,PAB40 5D LV1 | — | |
| 67630-0H040-B0 note |
Board Sub-assy, Rear Door Trim, RH
2018-05 → —
|
KGB40 5D | — | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 62489-0E010 |
Clip(FOR REAR DOOR TRIM BOARD)
2014-05 → 2018-05
ended
|
KGB40,PAB40 5D | — | |
| 62489-0E010 |
Clip(FOR REAR DOOR TRIM BOARD)
2018-05 → —
|
KGB40 5D | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-0H020-B0 note |
Board Sub-assy, Rear Door Trim, LH
2014-05 → 2018-05
ended
|
KGB40 5D LEDIN | — | |
| 67640-0H020-B0 note |
Board Sub-assy, Rear Door Trim, LH
2014-05 → 2018-05
ended
|
KGB40,PAB40 5D LV1 | — | |
| 67640-0H040-B0 note |
Board Sub-assy, Rear Door Trim, LH
2018-05 → —
|
KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
