Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

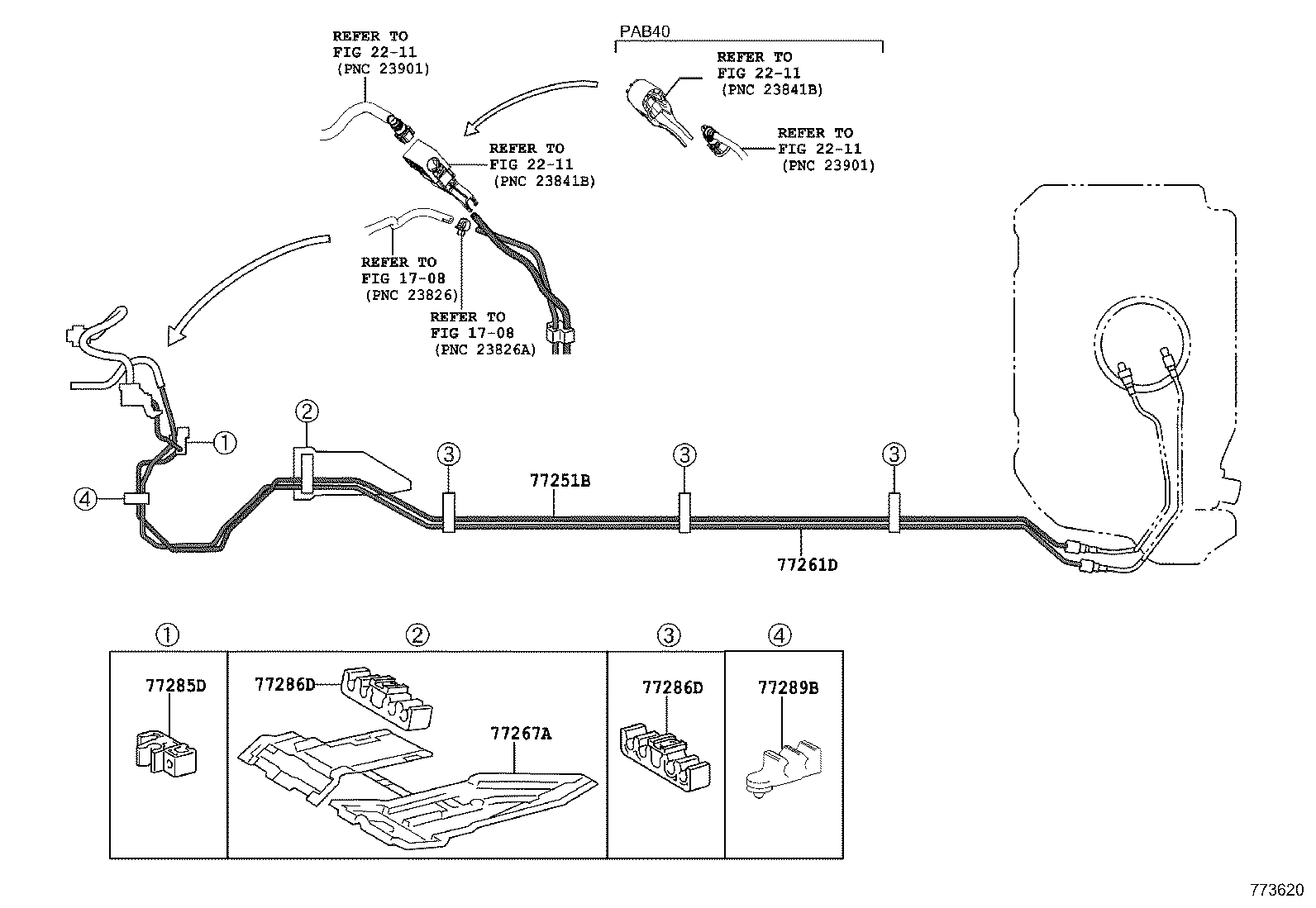

Exploded illustration 773620 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (3 parts) 77261D — TUBE, FUEL TANK TO CANISTER (4 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (5 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (4 parts)
773620 · 7 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-0H030 Tube, Fuel Main
2014-05 → 2018-05 ended
KGB40,PAB40 —
77251-0H030 Tube, Fuel Main
2018-05 → 2021-04 ended
KGB40 3D —
77251-0H030 Tube, Fuel Main
2018-05 → —
KGB40 5D —
77261D — Tube, Fuel Tank TO Canister
77261-0H020 Tube, Fuel Tank TO Canister
2014-05 → 2018-05 ended
KGB40,PAB40 —
77261-0H020 Tube, Fuel Tank TO Canister
2018-05 → 2019-05 ended
KGB40 —
77261-0H040 Tube, Fuel Tank TO Canister
2019-05 → 2021-04 ended
KGB40 3D —
77261-0H040 Tube, Fuel Tank TO Canister
2019-05 → —
KGB40 5D —
77267A — Protector, Fuel Tube, NO.2
77267-0H010 Protector, Fuel Tube, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
77267-0H010 Protector, Fuel Tube, NO.2
2018-05 → 2019-05 ended
KGB40 —
77267-0H030 Protector, Fuel Tube, NO.2
2019-05 → 2021-04 ended
KGB40 3D —
77267-0H030 Protector, Fuel Tube, NO.2
2019-05 → —
KGB40 5D —
77285D — Clamp, Fuel Tube, NO.1
77285-0H010 Clamp, Fuel Tube, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 —
77285-0H010 Clamp, Fuel Tube, NO.1
2018-05 → 2019-05 ended
KGB40 —
77285-0H030 Clamp, Fuel Tube, NO.1
2019-05 → 2021-04 ended
KGB40 3D —
77285-0H030 Clamp, Fuel Tube, NO.1
2019-05 → —
KGB40 5D —
77286D — Clamp, Fuel Tube, NO.2
77286-0H010 Clamp, Fuel Tube, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
77286-0H010 Clamp, Fuel Tube, NO.2
2018-05 → 2019-05 ended
KGB40 —
77286-0H030 Clamp, Fuel Tube, NO.2
2019-05 → 2021-04 ended
KGB40 3D —
77286-0H030 Clamp, Fuel Tube, NO.2
2019-05 → —
KGB40 5D —
77289B — Clamp, Fuel Tube, NO.3
77289-0H020 Clamp, Fuel Tube, NO.3
2014-05 → 2017-12 ended
KGB40,PAB40 —
77289-0H030 Clamp, Fuel Tube, NO.3
2017-12 → 2018-05 ended
KGB40,PAB40 —
77289-0H030 Clamp, Fuel Tube, NO.3
2018-05 → 2019-05 ended
KGB40 —
77289-0H050 Clamp, Fuel Tube, NO.3
2019-05 → 2021-04 ended
KGB40 3D —
77289-0H050 Clamp, Fuel Tube, NO.3
2019-05 → —
KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
