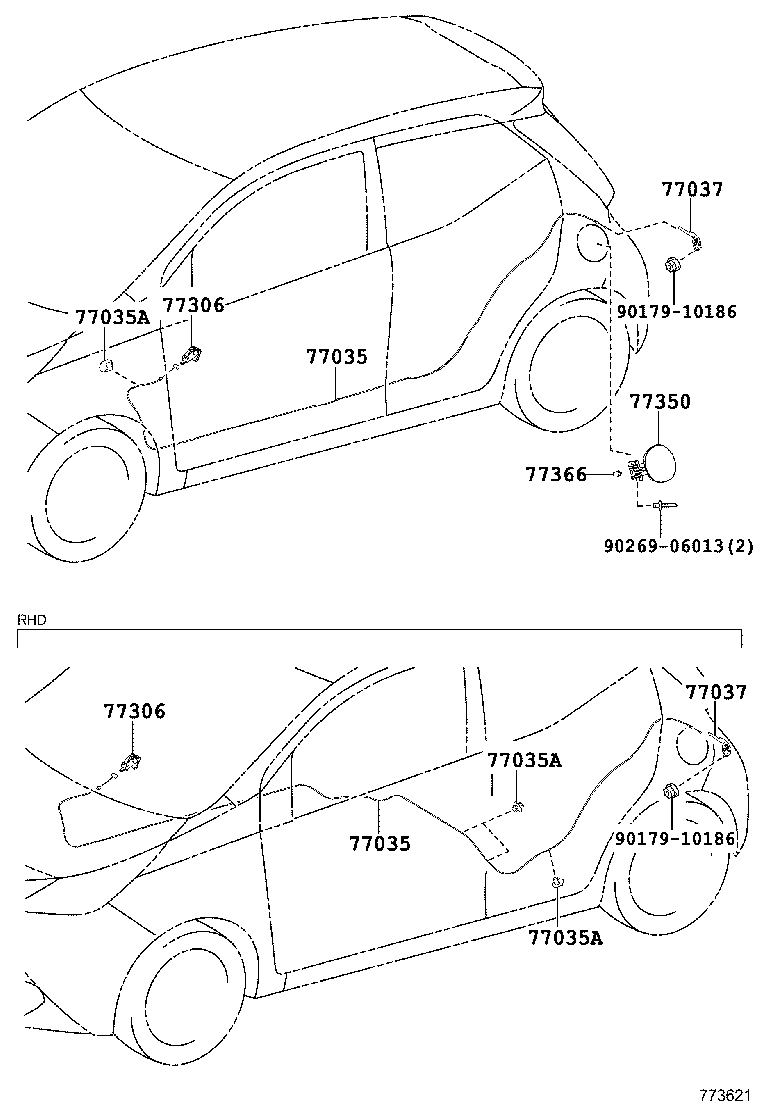

Exploded illustration 773621 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (6 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (6 parts) 77035A — CLAMP (FOR FUEL LID LOCK CONTROL CABLE) (6 parts) 77035A — CLAMP (FOR FUEL LID LOCK CONTROL CABLE) (6 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (3 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (6 parts) 77350 — LID ASSY, FUEL FILLER OPENING (3 parts) 77366 — SPRING, FUEL FILLER OPENING LID HINGE (3 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (3 parts) 9026906013 — not listed in this catalogue 77035A — CLAMP (FOR FUEL LID LOCK CONTROL CABLE) (6 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (6 parts) 9017910186 — not listed in this catalogue 9017910186 — not listed in this catalogue
773621 · 11 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-0H010 Cable Sub-assy, Fuel Lid Lock Control
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
77035-0H020 Cable Sub-assy, Fuel Lid Lock Control
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
77035-0H010 Cable Sub-assy, Fuel Lid Lock Control
2018-05 → 2021-04 ended
KGB40 LHD 3D —
77035-0H010 Cable Sub-assy, Fuel Lid Lock Control
2018-05 → —
KGB40 LHD 5D —
77035-0H020 Cable Sub-assy, Fuel Lid Lock Control
2018-05 → 2021-04 ended
KGB40 RHD 3D —
77035-0H020 Cable Sub-assy, Fuel Lid Lock Control
2018-05 → —
KGB40 RHD 5D —
77035A — Clamp (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2014-05 → 2018-05 ended
KGB40,PAB40 LHD —
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2014-05 → 2018-05 ended
KGB40,PAB40 RHD —
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2018-05 → 2021-04 ended
KGB40 LHD 3D —
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2018-05 → 2021-04 ended
KGB40 RHD 3D —
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2018-05 → —
KGB40 LHD 5D —
90469-06005 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2018-05 → —
KGB40 RHD 5D —
77037 — Lock Sub-assy, Fuel Filler Opening Lid
77037-0H010 Lock Sub-assy, Fuel Filler Opening Lid
2014-05 → 2018-05 ended
KGB40,PAB40 —
77037-0H010 Lock Sub-assy, Fuel Filler Opening Lid
2018-05 → 2021-04 ended
KGB40 3D —
77037-0H010 Lock Sub-assy, Fuel Filler Opening Lid
2018-05 → —
KGB40 5D —
77306 — Lever Sub-assy, Fuel Lid Lock Open
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2014-05 → 2018-05 ended
KGB40 LEDIN —
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2018-05 → 2021-04 ended
KGB40 3D LEDIN —
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2018-05 → 2021-04 ended
KGB40 3D LV1 —
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2018-05 → —
KGB40 5D LEDIN —
77306-0H010-B0 note Lever Sub-assy, Fuel Lid Lock Open
2018-05 → —
KGB40 5D LV1 —
77350 — Lid Assy, Fuel Filler Opening
77350-0H030 Lid Assy, Fuel Filler Opening
2014-05 → 2018-05 ended
KGB40,PAB40 —
77350-0H030 Lid Assy, Fuel Filler Opening
2018-05 → 2021-04 ended
KGB40 3D —
77350-0H030 Lid Assy, Fuel Filler Opening
2018-05 → —
KGB40 5D —
77366 — Spring, Fuel Filler Opening Lid Hinge
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2014-05 → 2018-05 ended
KGB40,PAB40 —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2018-05 → 2021-04 ended
KGB40 3D —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2018-05 → —
KGB40 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
