Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

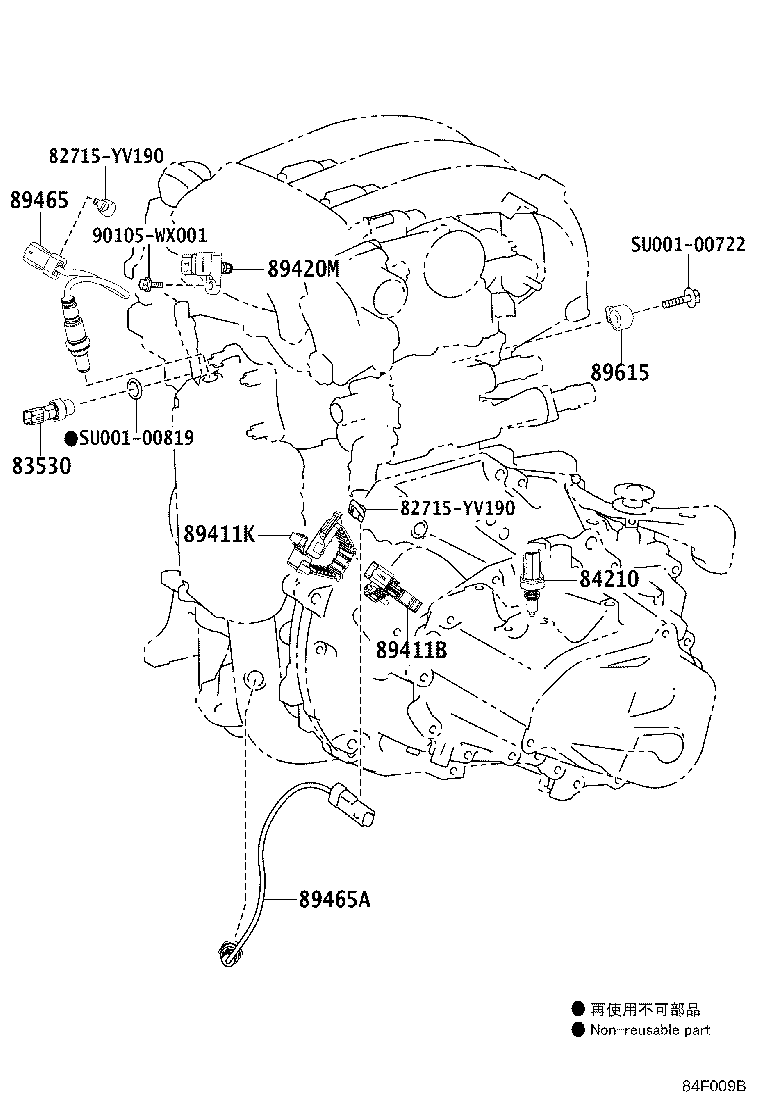

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-05 → 2018-05
ended
|
KGB40 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-05 → 2018-05
ended
|
KGB40 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-05 → 2018-05
ended
|
KGB40 | — | |
| SU001-01085 |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → —
|
KGB40 5D | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → —
|
KGB40 5D | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-05 → —
|
KGB40 5D | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-70010 |
Switch Assy, Back-up Lamp
2014-05 → 2018-05
ended
|
KGB40 | — | |
| SU001-A0799 |
Switch Assy, Back-up Lamp
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 84210-70010 |
Switch Assy, Back-up Lamp
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 84210-70010 |
Switch Assy, Back-up Lamp
2018-05 → —
|
KGB40 5D | — | |
| 89411B — Sensor, Speed | ||||
| SU001-01175 |
Sensor, Speed
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89411K — Protector, Engine Speed Sensor | ||||
| SU001-01119 |
Protector, Engine Speed Sensor
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89420M — Sensor Assy, Air Pressure | ||||
| SU001-01102 |
Sensor Assy, Air Pressure
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-0H030 |
Sensor, Oxygen
2014-05 → 2018-05
ended
|
KGB40 | — | |
| 89465-YV010 |
Sensor, Oxygen
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89465-0H060 |
Sensor, Oxygen
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 89465-0H060 |
Sensor, Oxygen
2018-05 → —
|
KGB40 5D | — | |
| 89465A — Sensor, Oxygen NO.2 | ||||
| 89465-0H040 |
Sensor, Oxygen NO.2
2014-05 → 2016-04
ended
|
KGB40 | — | |
| 89465-0H050 |
Sensor, Oxygen NO.2
2016-05 → 2018-05
ended
|
KGB40 | — | |
| 89465-YV010 |
Sensor, Oxygen NO.2
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89465-0H070 |
Sensor, Oxygen NO.2
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 89465-0H070 |
Sensor, Oxygen NO.2
2018-05 → —
|
KGB40 5D | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-0H010 |
Sensor, Knock Control
2014-05 → 2018-05
ended
|
KGB40 | — | |
| SU001-01118 |
Sensor, Knock Control
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 89615-0H010 |
Sensor, Knock Control
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 89615-0H010 |
Sensor, Knock Control
2018-05 → —
|
KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
