Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

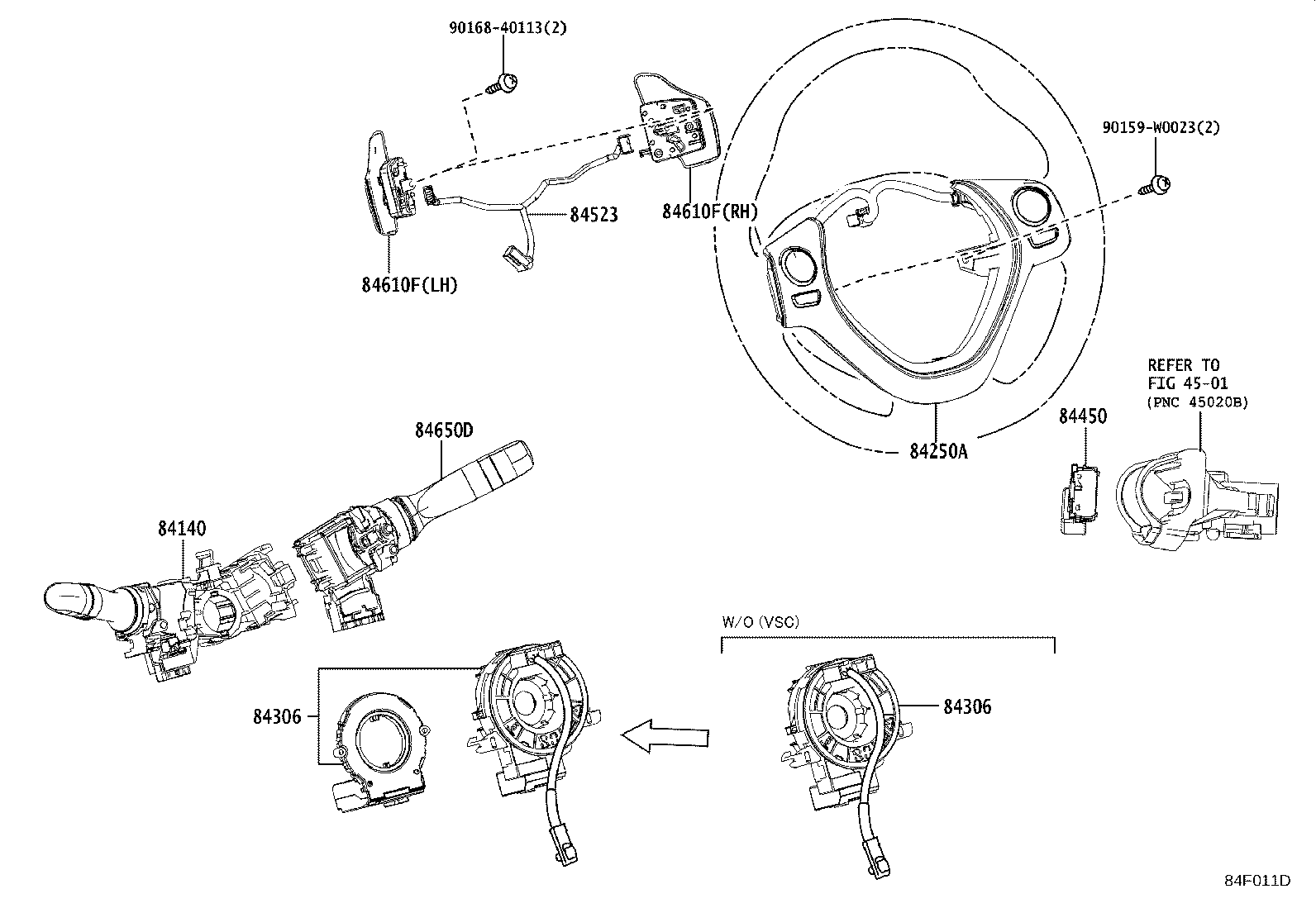

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-0H030 |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84140-0H040 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H050 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H060 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84140-0H030 |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84140-0H030 |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D | — | |
| 84140-0H040 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H040 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H050 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H050 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H060 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H060 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H070 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84140-0H080 note |
Switch Assy, Headlamp Dimmer
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-0H010-C0 note |
Switch Assy, Steering Pad
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84250-0H010-C0 note |
Switch Assy, Steering Pad
2014-05 → 2018-05
ended
|
KGB40,PAB40 5F LV1 | — | |
| 84250-0H020-C0 note |
Switch Assy, Steering Pad
2014-05 → 2018-05
ended
|
KGB40 5FS | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2015-05 → 2018-05
ended
|
KGB40 5FS | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2015-05 → 2018-05
ended
|
KGB40,PAB40 5F LV1 | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84250-0H010-C0 note |
Switch Assy, Steering Pad
2018-05 → 2021-05
ended
|
KGB40 3D 5F | — | |
| 84250-0H010-C0 note |
Switch Assy, Steering Pad
2018-05 → —
|
KGB40 5D 5F | — | |
| 84250-0H020-C0 note |
Switch Assy, Steering Pad
2018-05 → 2021-05
ended
|
KGB40 3D 5FS | — | |
| 84250-0H020-C0 note |
Switch Assy, Steering Pad
2018-05 → —
|
KGB40 5D 5FS | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2018-05 → 2021-05
ended
|
KGB40 3D 5FS | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2018-05 → —
|
KGB40 5D 5FS | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2018-05 → —
|
KGB40 5D 5F | — | |
| 84250-0H030-C0 note |
Switch Assy, Steering Pad
2018-05 → 2021-05
ended
|
KGB40 3D 5F | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-0D070 note |
Cable Sub-assy, Spiral
2015-05 → 2018-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2015-05 → 2018-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2015-05 → 2018-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 5D 5F LV1;KGB40 +4 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84306-0D070 note |
Cable Sub-assy, Spiral
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2015-05 → 2018-05
ended
|
KGB40 5F LV1 | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 5F LV1 | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D050 |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84307-0H060 note |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 5F LV1 | — | |
| 84307-0H060 |
Cable Sub-assy, Spiral
2014-05 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → —
|
KGB40 5D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → —
|
KGB40 5D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → —
|
KGB40 5D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D 5F LV1 | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D 5F LV1 | — | |
| 84307-0D060 |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2020-06 → —
|
KGB40 5D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D 5F LV1 | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D 5F LV1 | — | |
| 84307-0D060 |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0D060 note |
Cable Sub-assy, Spiral
2018-05 → 2020-06
ended
|
KGB40 LEDIN | — | |
| 84307-0H040 |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D LEDIN | — | |
| 84307-0H040 note |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D 5F LV1 | — | |
| 84307-0H040 |
Cable Sub-assy, Spiral
2018-05 → 2021-05
ended
|
KGB40 3D LEDIN | — | |
| 84307-0H040 note |
Cable Sub-assy, Spiral
2018-05 → —
|
KGB40 5D 5F LV1 | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-06030 |
Switch Assy, Ignition OR Starter
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84450-06030 note |
Switch Assy, Ignition OR Starter
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84450-06030 note |
Switch Assy, Ignition OR Starter
2018-05 → 2020-06
ended
|
KGB40 3D LV1 | — | |
| 84450-06030 |
Switch Assy, Ignition OR Starter
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84450-06030 note |
Switch Assy, Ignition OR Starter
2018-05 → 2022-01
ended
|
KGB40 5D LV1 | — | |
| 84450-06030 |
Switch Assy, Ignition OR Starter
2018-05 → —
|
KGB40 5D | — | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-02010 |
Wire, Switch NO.1
2014-05 → 2018-05
ended
|
KGB40 5FS | — | |
| 84523-02010 |
Wire, Switch NO.1
2018-05 → 2021-05
ended
|
KGB40 3D 5FS | — | |
| 84523-02010 |
Wire, Switch NO.1
2018-05 → —
|
KGB40 5D 5FS | — | |
| 84610F — Switch Assy, Transmission Shift | ||||
| 84610-02011 note |
Switch Assy, Transmission Shift
2014-05 → 2018-05
ended
|
KGB40 5FS | — | |
| 84610-02021 note |
Switch Assy, Transmission Shift
2014-05 → 2018-05
ended
|
KGB40 5FS | — | |
| 84610-02011 note |
Switch Assy, Transmission Shift
2018-05 → 2021-05
ended
|
KGB40 3D 5FS | — | |
| 84610-02011 note |
Switch Assy, Transmission Shift
2018-05 → —
|
KGB40 5D 5FS | — | |
| 84610-02021 note |
Switch Assy, Transmission Shift
2018-05 → 2021-05
ended
|
KGB40 3D 5FS | — | |
| 84610-02021 note |
Switch Assy, Transmission Shift
2018-05 → —
|
KGB40 5D 5FS | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-0H020 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84652-0H020 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84652-0H020 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2018-05 → —
|
KGB40 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
