Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

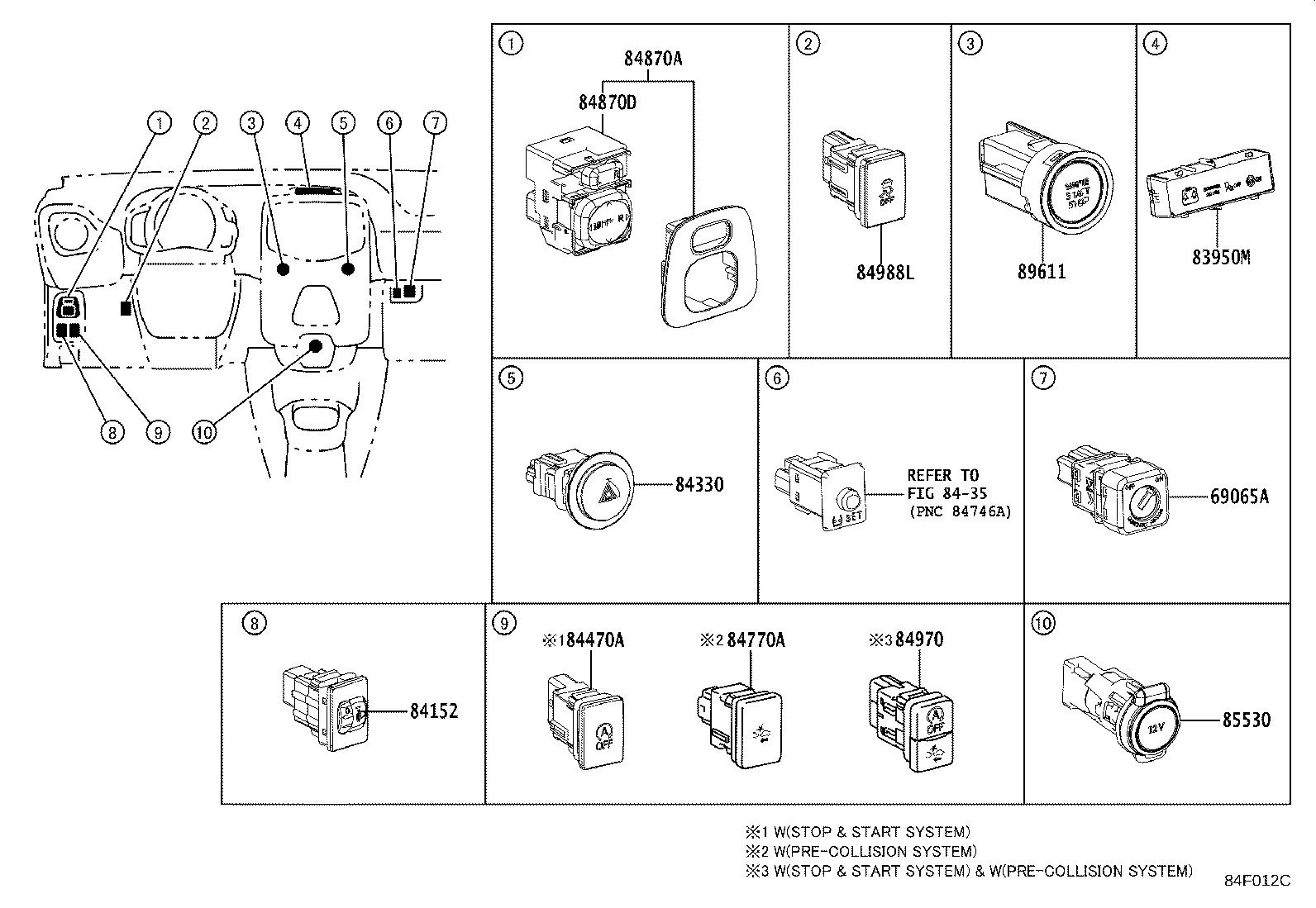

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69065A — Cylinder Sub-assy, Airbag Cut Off Switch | ||||
| 69065-0H020 |
Cylinder Sub-assy, Airbag Cut Off Switch
2014-05 → 2017-01
ended
|
KGB40,PAB40 | — | |
| 69065-0H021 |
Cylinder Sub-assy, Airbag Cut Off Switch
2017-02 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 69065-0H021 |
Cylinder Sub-assy, Airbag Cut Off Switch
2018-05 → —
|
KGB40 5D | — | |
| 69065-0H021 |
Cylinder Sub-assy, Airbag Cut Off Switch
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 83950M — Lamp Assy, Telltale | ||||
| 83950-0H010 note |
Lamp Assy, Telltale
2014-05 → 2015-05
ended
|
KGB40 5D LEDIN;KGB40 LHD +2 | — | |
| 83950-0H020 |
Lamp Assy, Telltale
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 83950-0H020 |
Lamp Assy, Telltale
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 83950-0H020 |
Lamp Assy, Telltale
2018-05 → —
|
KGB40 5D | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-0D090 |
Switch, Headlamp Leveling
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84152-0D090 |
Switch, Headlamp Leveling
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84152-0D090 |
Switch, Headlamp Leveling
2018-05 → —
|
KGB40 5D | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-0H020 |
Switch Assy, Hazard Warning Signal
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84332-0H020 |
Switch Assy, Hazard Warning Signal
2018-05 → —
|
KGB40 5D | — | |
| 84332-0H020 |
Switch Assy, Hazard Warning Signal
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84470A — Switch Assy, Ecorun Cancel | ||||
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2014-05 → 2015-05
ended
|
KGB40 LHD 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2014-05 → 2018-05
ended
|
KGB40 RHD 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2015-05 → 2018-05
ended
|
KGB40 LHD 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2018-05 → 2021-05
ended
|
KGB40 RHD 3D 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2018-05 → 2021-05
ended
|
KGB40 LHD 3D 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2018-05 → —
|
KGB40 RHD 5D 5F | — | |
| 84470-0H010 note |
Switch Assy, Ecorun Cancel
2018-05 → —
|
KGB40 LHD 5D 5F | — | |
| 84770A — Switch Assy, Pre-collision System Cancel | ||||
| 84770-0H010 note |
Switch Assy, Pre-collision System Cancel
2015-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84770-0H010 note |
Switch Assy, Pre-collision System Cancel
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84770-0H010 note |
Switch Assy, Pre-collision System Cancel
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84770-0H010 note |
Switch Assy, Pre-collision System Cancel
2018-05 → —
|
KGB40 5D | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-0H010 |
Switch Assy, Outer Mirror
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84870-0H010 |
Switch Assy, Outer Mirror
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84870-0H010 |
Switch Assy, Outer Mirror
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84870D — Switch Assy, Outer Mirror, NO.2 | ||||
| 84872-0D040 |
Switch Assy, Outer Mirror, NO.2
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 84872-0D040 |
Switch Assy, Outer Mirror, NO.2
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 84872-0D040 |
Switch Assy, Outer Mirror, NO.2
2018-05 → —
|
KGB40 5D LV1 | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-0H010 note |
Switch Assy, Combination
2015-05 → 2018-05
ended
|
KGB40 5F LV1 | — | |
| 84970-0H010 note |
Switch Assy, Combination
2017-09 → 2018-05
ended
|
KGB40 LEDIN | — | |
| 84970-0H010 note |
Switch Assy, Combination
2018-05 → 2021-05
ended
|
KGB40 3D 5F | — | |
| 84970-0H010 note |
Switch Assy, Combination
2018-05 → —
|
KGB40 5D 5F | — | |
| 84988L — Switch, Vsc Off | ||||
| 84988-0H010 |
Switch, Vsc Off
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84988-0H010 |
Switch, Vsc Off
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84988-0H010 |
Switch, Vsc Off
2018-05 → —
|
KGB40 5D | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-YV010 |
Socket Assy, Power Outlet, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 85530-YV010 |
Socket Assy, Power Outlet, NO.1
2018-05 → 2018-06
ended
|
KGB40 | — | |
| 85530-YV020 |
Socket Assy, Power Outlet, NO.1
2018-07 → 2021-05
ended
|
KGB40 3D | — | |
| 85530-YV020 |
Socket Assy, Power Outlet, NO.1
2018-07 → —
|
KGB40 5D | — | |
| 89611 — Switch, Push Start | ||||
| 89611-0H010 note |
Switch, Push Start
2014-05 → 2015-04
ended
|
KGB40,PAB40 LV1 | — | |
| 89611-0H011 note |
Switch, Push Start
2015-05 → 2016-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89611-0H012 note |
Switch, Push Start
2016-06 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89611-0H012 note |
Switch, Push Start
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 89611-0H012 note |
Switch, Push Start
2018-05 → —
|
KGB40 5D LV1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
