Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

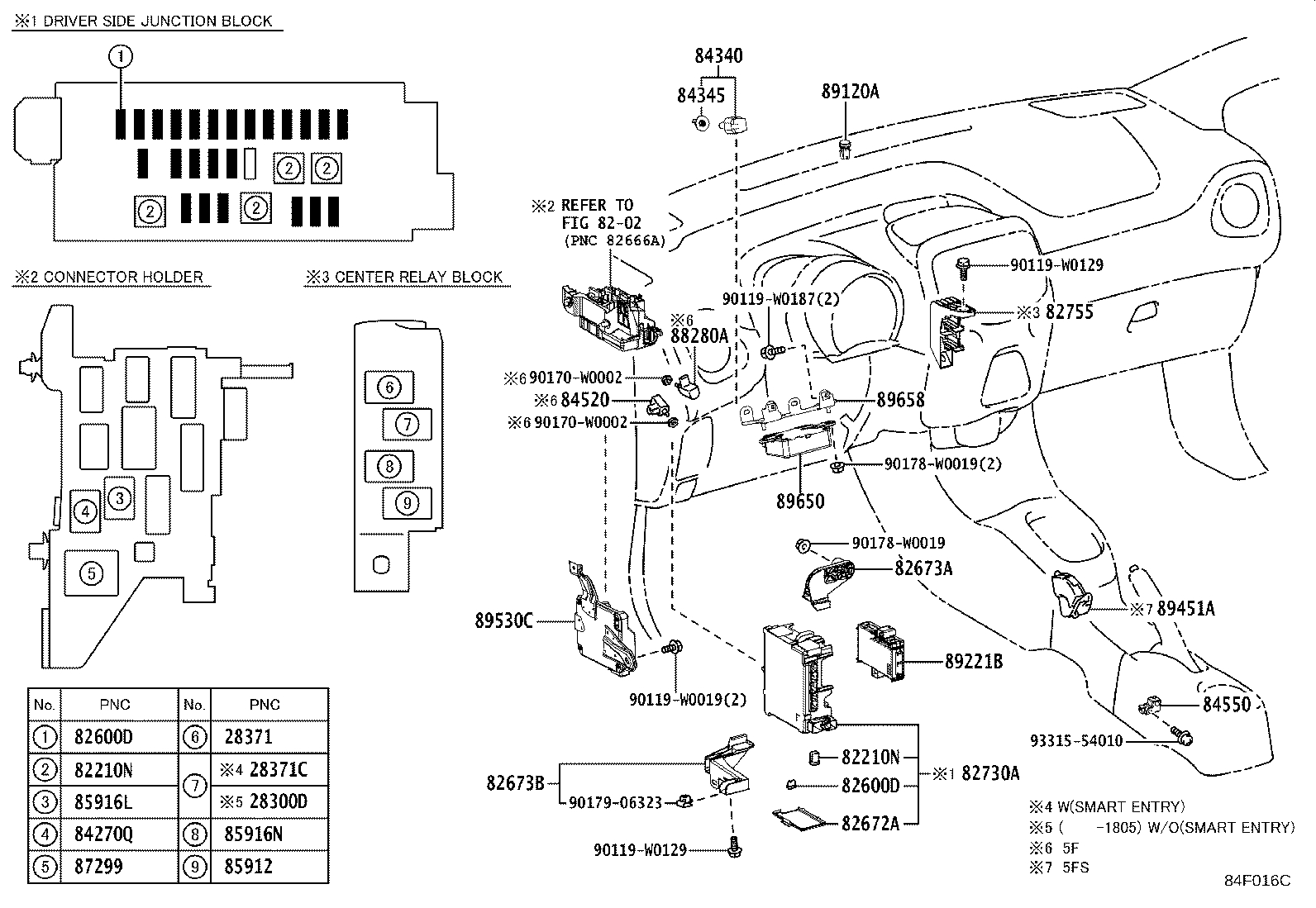

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300D — Relay, Starter Cut | ||||
| 90080-87020 note |
Relay, Starter Cut
2014-05 → 2015-05
ended
|
1KRFE KGB40 LV1 | — | |
| 90080-87020 |
Relay, Starter Cut
2014-05 → 2015-05
ended
|
1KRFE KGB40 | — | |
| 90080-87020 note |
Relay, Starter Cut
2014-05 → 2018-05
ended
|
1PP PAB40 | — | |
| 90080-87020 |
Relay, Starter Cut
2014-05 → 2018-05
ended
|
1PP PAB40 | — | |
| 28371 — Relay, Ignition, NO.1 | ||||
| 90080-87021 note |
Relay, Ignition, NO.1
2014-05 → 2018-05
ended
|
1KRFE,1PP KGB40,PAB40 LV1 | — | |
| 90080-87021 note |
Relay, Ignition, NO.1
2018-05 → 2021-09
ended
|
1KRFE KGB40 5D LV1 | — | |
| 90080-87021 note |
Relay, Ignition, NO.1
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D LV1 | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2021-09 → —
|
1KRFE KGB40 5D LV1 | — | |
| 28371C — Relay, Ignition, NO.2 | ||||
| 90080-87021 note |
Relay, Ignition, NO.2
2014-05 → 2018-05
ended
|
1KRFE,1PP KGB40,PAB40 LV1 | — | |
| 90080-87021 note |
Relay, Ignition, NO.2
2018-05 → 2021-04
ended
|
1KRFE KGB40 3D LV1 | — | |
| 90080-87021 note |
Relay, Ignition, NO.2
2018-05 → 2021-09
ended
|
1KRFE KGB40 5D LV1 | — | |
| 90987-02027 note |
Relay, Ignition, NO.2
2021-09 → —
|
1KRFE KGB40 5D LV1 | — | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08294 note |
Instrument Panel Fusible Link
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-08295 note |
Instrument Panel Fusible Link
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-08294 note |
Instrument Panel Fusible Link
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-08294 note |
Instrument Panel Fusible Link
2018-05 → —
|
KGB40 5D | — | |
| 90982-08295 note |
Instrument Panel Fusible Link
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-08295 note |
Instrument Panel Fusible Link
2018-05 → —
|
KGB40 5D | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90982-09019 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09019 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 90982-09020 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09020 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 90982-09021 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09021 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 90982-09022 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 90982-09022 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09023 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09023 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 90982-09024 note |
Instrument Panel Fuse
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90982-09024 note |
Instrument Panel Fuse
2018-05 → —
|
KGB40 5D | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-0H010 |
Cover, Junction Block
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 82672-0H010 |
Cover, Junction Block
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 82672-0H010 |
Cover, Junction Block
2018-05 → —
|
KGB40 5D | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-0H010 |
Bracket, Junction Block, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 LHD | — | |
| 82673-0H030 |
Bracket, Junction Block, NO.1
2014-05 → 2018-05
ended
|
KGB40,PAB40 RHD | — | |
| 82673-0H010 |
Bracket, Junction Block, NO.1
2018-05 → 2021-04
ended
|
KGB40 LHD 3D | — | |
| 82673-0H010 |
Bracket, Junction Block, NO.1
2018-05 → —
|
KGB40 LHD 5D | — | |
| 82673-0H030 |
Bracket, Junction Block, NO.1
2018-05 → —
|
KGB40 RHD 5D | — | |
| 82673-0H030 |
Bracket, Junction Block, NO.1
2018-05 → 2021-04
ended
|
KGB40 RHD 3D | — | |
| 82673B — Bracket, Junction Block, NO.2 | ||||
| 82673-0H020 |
Bracket, Junction Block, NO.2
2014-05 → 2018-05
ended
|
KGB40,PAB40 LHD | — | |
| 82673-0H040 |
Bracket, Junction Block, NO.2
2014-05 → 2018-05
ended
|
KGB40,PAB40 RHD | — | |
| 82673-0H020 |
Bracket, Junction Block, NO.2
2018-05 → 2021-04
ended
|
KGB40 LHD 3D | — | |
| 82673-0H020 |
Bracket, Junction Block, NO.2
2018-05 → —
|
KGB40 LHD 5D | — | |
| 82673-0H040 |
Bracket, Junction Block, NO.2
2018-05 → 2021-04
ended
|
KGB40 RHD 3D | — | |
| 82673-0H040 |
Bracket, Junction Block, NO.2
2018-05 → —
|
KGB40 RHD 5D | — | |
| 82730A — Block Assy, Driver Side Junction | ||||
| 82730-0H030 |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
KGB40 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
KGB40 LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
KGB40 LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
KGB40 LV1 | — | |
| 82730-0H050 |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 82730-0H060 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 82730-0H060 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 82730-0H060 note |
Block Assy, Driver Side Junction
2014-05 → 2018-05
ended
|
PAB40 | — | |
| 82730-0H030 |
Block Assy, Driver Side Junction
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 82730-0H030 |
Block Assy, Driver Side Junction
2018-05 → —
|
KGB40 5D | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → —
|
KGB40 5D LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → —
|
KGB40 5D LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → —
|
KGB40 5D LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 82730-0H040 note |
Block Assy, Driver Side Junction
2018-05 → 2021-04
ended
|
KGB40 3D LV1 | — | |
| 82755 — Block, Center Relay | ||||
| 82755-12020 |
Block, Center Relay
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 82755-12020 |
Block, Center Relay
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 82755-12020 |
Block, Center Relay
2018-05 → —
|
KGB40 5D | — | |
| 84270Q — Relay, Lamp Cut | ||||
| 90080-87021 |
Relay, Lamp Cut
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90080-87021 |
Relay, Lamp Cut
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 90080-87021 |
Relay, Lamp Cut
2018-05 → 2021-09
ended
|
KGB40 5D | — | |
| 90987-02027 |
Relay, Lamp Cut
2021-10 → —
|
KGB40 5D | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-09020 |
Switch Assy, Stop Lamp
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84340-09020 |
Switch Assy, Stop Lamp
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84340-09020 |
Switch Assy, Stop Lamp
2018-05 → —
|
KGB40 5D | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2018-05 → —
|
KGB40 5D | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-42010 note |
Switch Assy, Clutch Start
2014-05 → 2018-05
ended
|
KGB40 5F | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2014-05 → 2018-05
ended
|
KGB40,PAB40 5F LV1 | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2014-05 → 2018-05
ended
|
KGB40 5F LV1 | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → 2021-05
ended
|
KGB40 3D 5F | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → 2021-05
ended
|
KGB40 3D 5F LV1 | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → 2021-05
ended
|
KGB40 3D 5F LV1 | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → —
|
KGB40 5D 5F | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → —
|
KGB40 5D 5F LV1 | — | |
| 84520-42010 note |
Switch Assy, Clutch Start
2018-05 → —
|
KGB40 5D 5F LV1 | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-0H010 |
Switch Assy, Parking Brake
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 84550-0H010 |
Switch Assy, Parking Brake
2018-05 → —
|
KGB40 5D | — | |
| 84550-0H010 |
Switch Assy, Parking Brake
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 85912 — Relay, Defogger | ||||
| 90080-87021 |
Relay, Defogger
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90080-87021 |
Relay, Defogger
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90080-87021 |
Relay, Defogger
2018-05 → 2021-06
ended
|
KGB40 5D | — | |
| 90987-02027 note |
Relay, Defogger
2021-05 → 2021-06
ended
|
KGB40 5D LV1 | — | |
| 90987-02027 |
Relay, Defogger
2021-06 → —
|
KGB40 5D | — | |
| 85916L — Relay, Rear Fog Lamp | ||||
| 90080-87021 |
Relay, Rear Fog Lamp
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90080-87021 |
Relay, Rear Fog Lamp
2018-05 → 2021-02
ended
|
KGB40 | — | |
| 90987-02027 |
Relay, Rear Fog Lamp
2021-02 → 2021-05
ended
|
KGB40 3D | — | |
| 90987-02027 |
Relay, Rear Fog Lamp
2021-02 → —
|
KGB40 5D | — | |
| 85916N — Relay, Taillamp | ||||
| 90080-87021 |
Relay, Taillamp
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90080-87021 |
Relay, Taillamp
2018-05 → 2021-02
ended
|
KGB40 | — | |
| 90987-02027 |
Relay, Taillamp
2021-02 → 2021-05
ended
|
KGB40 3D | — | |
| 90987-02027 |
Relay, Taillamp
2021-02 → —
|
KGB40 5D | — | |
| 87299 — Relay, Heater | ||||
| 90080-87031 |
Relay, Heater
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 90080-87031 |
Relay, Heater
2018-05 → 2021-04
ended
|
KGB40 3D | — | |
| 90080-87031 |
Relay, Heater
2018-05 → —
|
KGB40 5D | — | |
| 88280A — Switch Assy, Clutch | ||||
| 88280-70010 |
Switch Assy, Clutch
2014-05 → 2018-05
ended
|
KGB40,PAB40 5F | — | |
| 88280-70010 |
Switch Assy, Clutch
2018-05 → —
|
KGB40 5D 5F | — | |
| 88280-70010 |
Switch Assy, Clutch
2018-05 → 2021-05
ended
|
KGB40 3D 5F | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-30020 note |
Sensor, Automatic Light Control
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89121-30020 note |
Sensor, Automatic Light Control
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 89121-30020 note |
Sensor, Automatic Light Control
2018-05 → —
|
KGB40 5D LV1 | — | |
| 89221B — Computer, Body | ||||
| 89221-0H010 note |
Computer, Body
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89221-0H010 note |
Computer, Body
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89221-0H010 note |
Computer, Body
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → —
|
KGB40 5D LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → —
|
KGB40 5D LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → —
|
KGB40 5D LV1 | — | |
| 89221-0H030 note |
Computer, Body
2018-05 → 2021-05
ended
|
KGB40 3D LV1 | — | |
| 89451A — Sensor, Shift Lever Position | ||||
| 89451-52021 |
Sensor, Shift Lever Position
2014-05 → 2018-05
ended
|
KGB40 LHD 5FS | — | |
| 89451-52031 |
Sensor, Shift Lever Position
2014-05 → 2018-05
ended
|
KGB40 RHD 5FS | — | |
| 89451-52021 |
Sensor, Shift Lever Position
2018-05 → 2021-05
ended
|
KGB40 LHD 3D 5FS | — | |
| 89451-52021 |
Sensor, Shift Lever Position
2018-05 → —
|
KGB40 LHD 5D 5FS | — | |
| 89451-52031 |
Sensor, Shift Lever Position
2018-05 → 2021-05
ended
|
KGB40 RHD 3D 5FS | — | |
| 89451-52031 |
Sensor, Shift Lever Position
2018-05 → —
|
KGB40 RHD 5D 5FS | — | |
| 89530C — Computer Assy, Transmission Control | ||||
| 89530-70190 note |
Computer Assy, Transmission Control
2014-05 → 2015-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70200 note |
Computer Assy, Transmission Control
2014-05 → 2015-05
ended
|
KGB40 RHD 5FS | — | |
| 89530-70210 |
Computer Assy, Transmission Control
2014-05 → 2015-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70220 |
Computer Assy, Transmission Control
2014-05 → 2015-05
ended
|
KGB40 RHD 5FS | — | |
| 89530-70250 note |
Computer Assy, Transmission Control
2015-05 → 2016-09
ended
|
KGB40 LHD 5FS | — | |
| 89530-70251 |
Computer Assy, Transmission Control
2017-05 → 2018-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70251 note |
Computer Assy, Transmission Control
2016-09 → 2017-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70260 note |
Computer Assy, Transmission Control
2015-05 → 2016-09
ended
|
KGB40 RHD 5FS | — | |
| 89530-70261 |
Computer Assy, Transmission Control
2017-05 → 2018-05
ended
|
KGB40 RHD 5FS | — | |
| 89530-70261 note |
Computer Assy, Transmission Control
2016-09 → 2017-05
ended
|
KGB40 RHD 5FS | — | |
| 89530-70270 |
Computer Assy, Transmission Control
2015-05 → 2017-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70270 note |
Computer Assy, Transmission Control
2017-05 → 2018-05
ended
|
KGB40 LHD 5FS | — | |
| 89530-70280 |
Computer Assy, Transmission Control
2015-05 → 2017-05
ended
|
KGB40 RHD 5FS | — | |
| 89530-70330 |
Computer Assy, Transmission Control
2018-05 → 2021-05
ended
|
KGB40 LHD 3D 5FS | — | |
| 89530-70330 |
Computer Assy, Transmission Control
2018-05 → —
|
KGB40 LHD 5D 5FS | — | |
| 89530-70340 |
Computer Assy, Transmission Control
2018-05 → 2021-05
ended
|
KGB40 RHD 3D 5FS | — | |
| 89530-70340 |
Computer Assy, Transmission Control
2018-05 → —
|
KGB40 RHD 5D 5FS | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-0H090 |
Computer Assy, Power Steering
2014-05 → 2018-05
ended
|
KGB40,PAB40 | — | |
| 89650-0H100 note |
Computer Assy, Power Steering
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89650-0H100 note |
Computer Assy, Power Steering
2014-05 → 2018-05
ended
|
KGB40,PAB40 LV1 | — | |
| 89650-0H150 note |
Computer Assy, Power Steering
2018-05 → 2021-05
ended
|
KGB40 3D | — | |
| 89650-0H150 note |
Computer Assy, Power Steering
2018-05 → —
|
KGB40 5D | — | |
| 89658 — Bracket, Power Steering Computer | ||||
| 89658-0H010 |
Bracket, Power Steering Computer
2014-05 → 2018-05
ended
|
KGB40,PAB40 LHD | — | |
| 89658-0H020 |
Bracket, Power Steering Computer
2014-05 → 2018-05
ended
|
KGB40,PAB40 RHD | — | |
| 89658-0H010 |
Bracket, Power Steering Computer
2018-05 → 2021-05
ended
|
KGB40 LHD 3D | — | |
| 89658-0H010 |
Bracket, Power Steering Computer
2018-05 → —
|
KGB40 LHD 5D | — | |
| 89658-0H020 |
Bracket, Power Steering Computer
2018-05 → 2021-05
ended
|
KGB40 RHD 3D | — | |
| 89658-0H020 |
Bracket, Power Steering Computer
2018-05 → —
|
KGB40 RHD 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
