Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

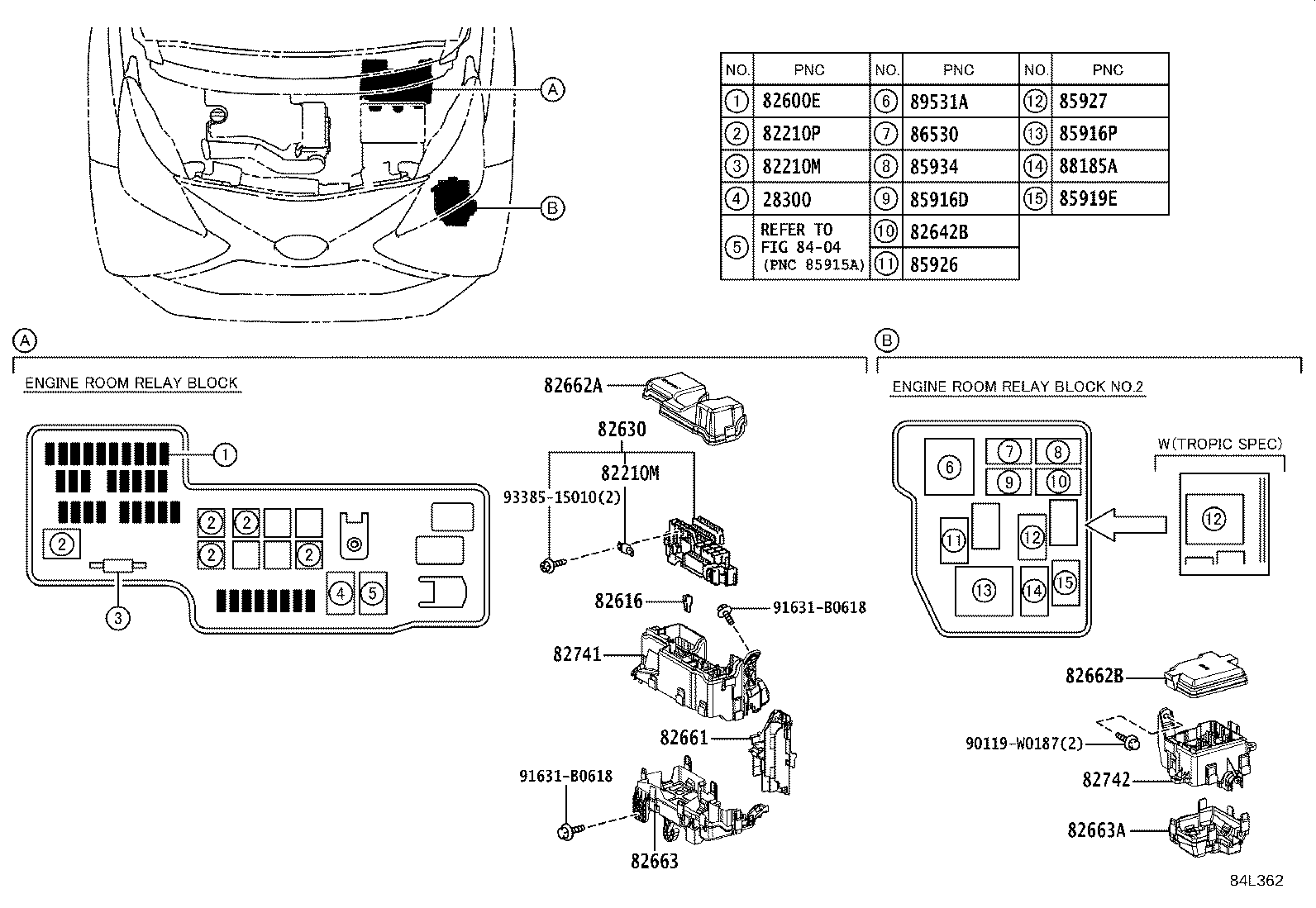

Exploded illustration 84L362 8404 — not listed in this catalogue 28300 — RELAY ASSY, STARTER (5 parts) 82210M — FUSIBLE LINK (3 parts) 82210P — ENGINE ROOM FUSIBLE LINK (12 parts) 82600E — ENGINE ROOM FUSE (21 parts) 89531A — RELAY, TRANSMISSION CONTROL (3 parts) 86530 — RELAY ASSY, HORN (4 parts) 85919E — RELAY, STOP LAMP (15 parts) 88185A — RELAY, PRE-COLLISION CITY HEATER (5 parts) 85916P — RELAY, HEADLAMP (3 parts) 85927 — RELAY, COOLING FAN (7 parts) 85934 — RELAY, MAGNET-CLUTCH (8 parts) 85916D — RELAY, FOG LAMP (4 parts) 82642B — RELAY, DAY TIME RUNNING LIGHT, NO.1 (4 parts) 85926 — RELAY, HEADLAMP DIMMER (4 parts) 90119W0187 — not listed in this catalogue 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (3 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (3 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (3 parts) 91631B0618 — not listed in this catalogue 9338515010 — not listed in this catalogue 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (3 parts) 82630 — HOLDER ASSY, FUSE (4 parts) 82616 — PULLER, FUSE (3 parts) 82741 — BLOCK, ENGINE ROOM RELAY (3 parts) 82661 — COVER, RELAY BLOCK, NO.1 (3 parts) 82663 — COVER, RELAY BLOCK, LOWER (3 parts) 82210M — FUSIBLE LINK (3 parts) 91631B0618 — not listed in this catalogue
84L362 · 24 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-21020 Relay Assy, Starter
2014-07 → 2018-05 ended
1KRFE,1PP KGB40,PAB40 —
28300-28010 Relay Assy, Starter
2014-05 → 2014-07 ended
1KRFE,1PP KGB40,PAB40 3D —
28300-28010 Relay Assy, Starter
2014-05 → 2014-06 ended
1KRFE,1PP KGB40,PAB40 —
28300-21020 Relay Assy, Starter
2018-05 → —
1KRFE KGB40 5D —
28300-21020 Relay Assy, Starter
2018-05 → 2021-05 ended
1KRFE KGB40 3D —
82210M — Fusible Link
90982-08297 note Fusible Link
2014-05 → 2018-05 ended
KGB40 —
90982-08297 note Fusible Link
2018-05 → 2021-04 ended
KGB40 3D —
90982-08297 note Fusible Link
2018-05 → —
KGB40 5D —
82210P — Engine Room Fusible Link
90982-08294 note Engine Room Fusible Link
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-08295 note Engine Room Fusible Link
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-08296 note Engine Room Fusible Link
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-08304 note Engine Room Fusible Link
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-08294 note Engine Room Fusible Link
2018-05 → 2021-04 ended
KGB40 3D —
90982-08294 note Engine Room Fusible Link
2018-05 → —
KGB40 5D —
90982-08295 note Engine Room Fusible Link
2018-05 → 2021-04 ended
KGB40 3D —
90982-08295 note Engine Room Fusible Link
2018-05 → —
KGB40 5D —
90982-08296 note Engine Room Fusible Link
2018-05 → 2021-04 ended
KGB40 3D —
90982-08296 note Engine Room Fusible Link
2018-05 → —
KGB40 5D —
90982-08304 note Engine Room Fusible Link
2018-05 → 2021-04 ended
KGB40 3D —
90982-08304 note Engine Room Fusible Link
2018-05 → —
KGB40 5D —
82600E — Engine Room Fuse
90982-09019 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09020 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09021 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09022 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09023 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09024 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09025 note Engine Room Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
90982-09019 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09019 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09020 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09020 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09021 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09021 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09022 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09022 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09023 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09023 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09024 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09024 note Engine Room Fuse
2018-05 → —
KGB40 5D —
90982-09025 note Engine Room Fuse
2018-05 → 2021-04 ended
KGB40 3D —
90982-09025 note Engine Room Fuse
2018-05 → —
KGB40 5D —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2014-05 → 2018-05 ended
KGB40,PAB40 —
82616-58010 Puller, Fuse
2018-05 → 2021-04 ended
KGB40 3D —
82616-58010 Puller, Fuse
2018-05 → —
KGB40 5D —
82630 — Holder Assy, Fuse
82630-0H010 Holder Assy, Fuse
2014-05 → 2018-05 ended
KGB40 —
82630-0H020 Holder Assy, Fuse
2014-05 → 2018-05 ended
PAB40 —
82630-0H010 Holder Assy, Fuse
2018-05 → 2021-04 ended
KGB40 3D —
82630-0H010 Holder Assy, Fuse
2018-05 → —
KGB40 5D —
82642B — Relay, Day Time Running Light, NO.1
90080-87021 Relay, Day Time Running Light, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 —
90080-87021 note Relay, Day Time Running Light, NO.1
2014-05 → 2018-05 ended
KGB40 5F —
90987-02027 Relay, Day Time Running Light, NO.1
2018-05 → —
KGB40 5D —
90987-02027 Relay, Day Time Running Light, NO.1
2018-05 → 2021-05 ended
KGB40 3D —
82661 — Cover, Relay Block, NO.1
82661-0H010 Cover, Relay Block, NO.1
2014-05 → 2018-05 ended
KGB40 —
82661-0H010 Cover, Relay Block, NO.1
2018-05 → 2021-04 ended
KGB40 3D —
82661-0H010 Cover, Relay Block, NO.1
2018-05 → —
KGB40 5D —
82662A — Cover, Relay Block, Upper, NO.1
82662-0H060 Cover, Relay Block, Upper, NO.1
2014-05 → 2018-05 ended
KGB40,PAB40 —
82662-0H060 Cover, Relay Block, Upper, NO.1
2018-05 → 2021-04 ended
KGB40 3D —
82662-0H060 Cover, Relay Block, Upper, NO.1
2018-05 → —
KGB40 5D —
82662B — Cover, Relay Block, Upper, NO.2
82662-0H070 Cover, Relay Block, Upper, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
82662-0H070 Cover, Relay Block, Upper, NO.2
2018-05 → 2021-04 ended
KGB40 3D —
82662-0H070 Cover, Relay Block, Upper, NO.2
2018-05 → —
KGB40 5D —
82663 — Cover, Relay Block, Lower
82663-0H040 Cover, Relay Block, Lower
2014-05 → 2018-05 ended
KGB40,PAB40 —
82663-0H040 Cover, Relay Block, Lower
2018-05 → —
KGB40 5D —
82663-0H040 Cover, Relay Block, Lower
2018-05 → 2021-04 ended
KGB40 3D —
82663A — Cover, Relay Block, Lower, NO.2
82663-0H050 Cover, Relay Block, Lower, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
82663-0H050 Cover, Relay Block, Lower, NO.2
2018-05 → 2021-04 ended
KGB40 3D —
82663-0H050 Cover, Relay Block, Lower, NO.2
2018-05 → —
KGB40 5D —
82741 — Block, Engine Room Relay
82741-0H050 Block, Engine Room Relay
2014-05 → 2018-05 ended
KGB40,PAB40 —
82741-0H050 Block, Engine Room Relay
2018-05 → 2021-04 ended
KGB40 3D —
82741-0H050 Block, Engine Room Relay
2018-05 → —
KGB40 5D —
82742 — Block, Engine Room Relay, NO.2
82741-0H060 Block, Engine Room Relay, NO.2
2014-05 → 2018-05 ended
KGB40,PAB40 —
82741-0H060 Block, Engine Room Relay, NO.2
2018-05 → 2021-04 ended
KGB40 3D —
82741-0H060 Block, Engine Room Relay, NO.2
2018-05 → —
KGB40 5D —
85916D — Relay, Fog Lamp
90080-87021 note Relay, Fog Lamp
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
90080-87021 note Relay, Fog Lamp
2018-05 → 2021-02 ended
KGB40 LV1 —
90987-02027 note Relay, Fog Lamp
2021-02 → —
KGB40 5D LV1 —
90987-02027 note Relay, Fog Lamp
2021-02 → 2021-05 ended
KGB40 3D LV1 —
85916P — Relay, Headlamp
90080-87030 Relay, Headlamp
2014-05 → 2018-05 ended
KGB40,PAB40 —
90080-87030 Relay, Headlamp
2018-05 → 2021-05 ended
KGB40 3D —
90080-87030 Relay, Headlamp
2018-05 → —
KGB40 5D —
85919E — Relay, Stop Lamp
90080-87020 Relay, Stop Lamp
2018-05 → 2021-02 ended
KGB40 RHD;KGB40 LHD 5FS —
90080-87020 note Relay, Stop Lamp
2018-05 → 2021-02 ended
KGB40 LHD 5F —
90080-87020 note Relay, Stop Lamp
2018-05 → 2021-02 ended
KGB40 LHD 5F —
90080-87020 note Relay, Stop Lamp
2018-05 → 2021-02 ended
KGB40 LHD 5F —
90080-87020 note Relay, Stop Lamp
2018-05 → 2021-02 ended
KGB40 LHD 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → —
KGB40 LHD 5D 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → —
KGB40 LHD 5D 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → —
KGB40 LHD 5D 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → —
KGB40 LHD 5D 5F —
90987-W4001 Relay, Stop Lamp
2021-03 → —
KGB40 RHD 5D;KGB40 LHD +2 —
90987-W4001 note Relay, Stop Lamp
2021-03 → 2021-05 ended
KGB40 LHD 3D 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → 2021-05 ended
KGB40 LHD 3D 5F —
90987-W4001 note Relay, Stop Lamp
2021-03 → 2021-05 ended
KGB40 LHD 3D 5F —
90987-W4001 Relay, Stop Lamp
2021-03 → 2021-05 ended
KGB40 RHD 3D;KGB40 LHD +2 —
90987-W4001 note Relay, Stop Lamp
2021-03 → 2021-05 ended
KGB40 LHD 3D 5F —
85926 — Relay, Headlamp Dimmer
90080-87021 Relay, Headlamp Dimmer
2014-05 → 2018-05 ended
KGB40,PAB40 —
90080-87021 Relay, Headlamp Dimmer
2018-05 → 2021-02 ended
KGB40 —
90987-02027 Relay, Headlamp Dimmer
2021-02 → 2021-05 ended
KGB40 3D —
90987-02027 Relay, Headlamp Dimmer
2021-02 → —
KGB40 5D —
85927 — Relay, Cooling Fan
90080-87021 Relay, Cooling Fan
2014-05 → 2018-05 ended
KGB40 —
90080-87030 note Relay, Cooling Fan
2014-05 → 2018-05 ended
KGB40 —
90080-87021 Relay, Cooling Fan
2018-05 → 2021-05 ended
KGB40 3D —
90080-87021 Relay, Cooling Fan
2018-05 → 2021-10 ended
KGB40 5D —
90080-87030 note Relay, Cooling Fan
2018-05 → 2021-05 ended
KGB40 3D —
90080-87030 note Relay, Cooling Fan
2018-05 → —
KGB40 5D —
90987-02027 Relay, Cooling Fan
2021-10 → —
KGB40 5D —
85934 — Relay, Magnet-clutch
90987-02028 Relay, Magnet-clutch
2014-05 → 2018-05 ended
KGB40,PAB40 LV1 —
90987-02028 note Relay, Magnet-clutch
2014-05 → 2018-05 ended
KGB40 LEDIN —
90987-02028 note Relay, Magnet-clutch
2018-05 → 2020-06 ended
KGB40 LV1 —
90987-02028 Relay, Magnet-clutch
2021-05 → —
KGB40 5D LEDIN —
90987-02028 Relay, Magnet-clutch
2018-05 → —
KGB40 5D LV1 —
90987-02028 note Relay, Magnet-clutch
2018-05 → 2021-05 ended
KGB40 5D LEDIN —
90987-02028 note Relay, Magnet-clutch
2018-05 → 2021-04 ended
KGB40 3D LEDIN —
90987-02028 Relay, Magnet-clutch
2018-05 → 2021-04 ended
KGB40 3D LV1 —
86530 — Relay Assy, Horn
90080-87021 Relay Assy, Horn
2014-05 → 2018-05 ended
KGB40,PAB40 —
90080-87021 Relay Assy, Horn
2018-05 → 2021-04 ended
KGB40 3D —
90080-87021 Relay Assy, Horn
2018-05 → 2021-05 ended
KGB40 5D —
90987-02027 Relay Assy, Horn
2021-06 → —
KGB40 5D —
88185A — Relay, Pre-collision City Heater
90080-87021 note Relay, Pre-collision City Heater
2016-12 → 2018-05 ended
KGB40,PAB40 LV1 —
90080-87021 note Relay, Pre-collision City Heater
2017-09 → 2018-05 ended
KGB40 LEDIN —
90080-87021 note Relay, Pre-collision City Heater
2018-05 → 2021-03 ended
KGB40 —
90987-02027 note Relay, Pre-collision City Heater
2021-04 → 2021-05 ended
KGB40 3D —
90987-02027 note Relay, Pre-collision City Heater
2021-04 → —
KGB40 5D —
89531A — Relay, Transmission Control
90080-87030 Relay, Transmission Control
2014-05 → 2018-05 ended
KGB40 5FS —
90080-87030 Relay, Transmission Control
2018-05 → 2021-05 ended
KGB40 3D 5FS —
90080-87030 Relay, Transmission Control
2018-05 → —
KGB40 5D 5FS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
