Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 2 illustrations

Illustrations

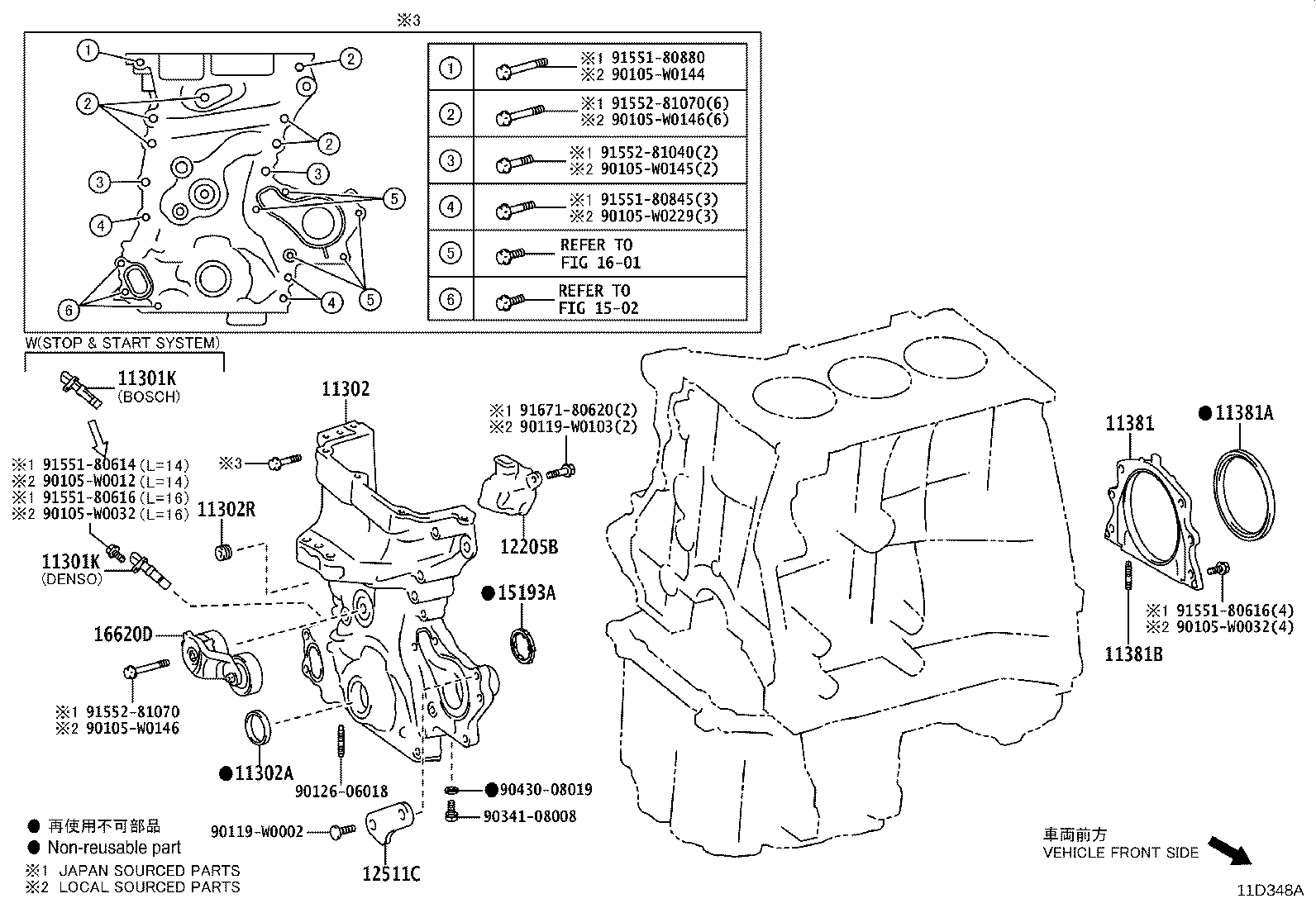

Figure 119056E 119056E 2014-05 → 2018-05 Figure 11D348A 11D348A 2018-05 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
12205B Case Sub-assy, Ventilation
12511C Bracket, Alternator
15193A Gasket, Oil Pump
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
