Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04
Crankshaft & Piston
29 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11721 | Bearing, Crankshaft, NO.2 |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 11911 | Bearing, Balanceshaft, NO.1 |
| 11921 | Bearing, Baranceshaft, NO.2 |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13201 | Rod Sub-assy, Connecting |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13301A | Piston Set, W/Piston Ring |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13405C | Spacer, NO.1(FOR FLYWHEEL) |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13421 | Weight, Balance |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13472 | Hub, Crankshaft Pulley |
| 13472A | Seal, Oil(FOR CRANKSHAFT PULLEY HUB) |

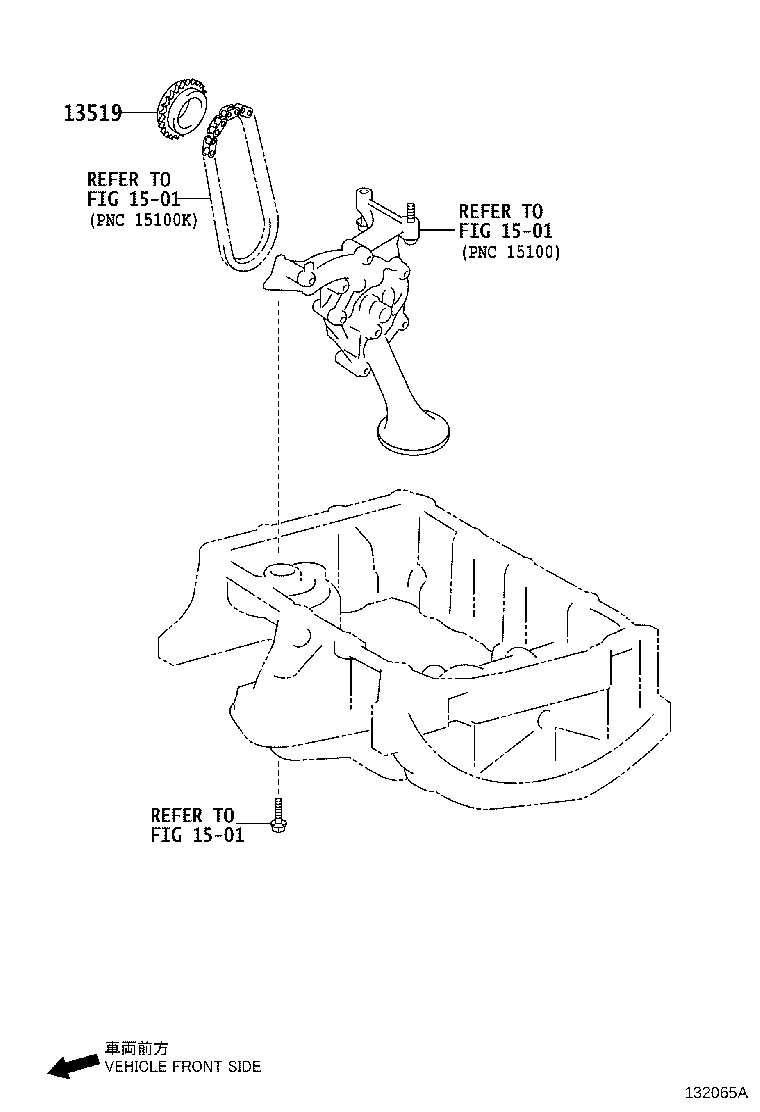

| 13519 | Gear, Oil Pump Drive |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521P | Pulley, Crankshaft Timing |

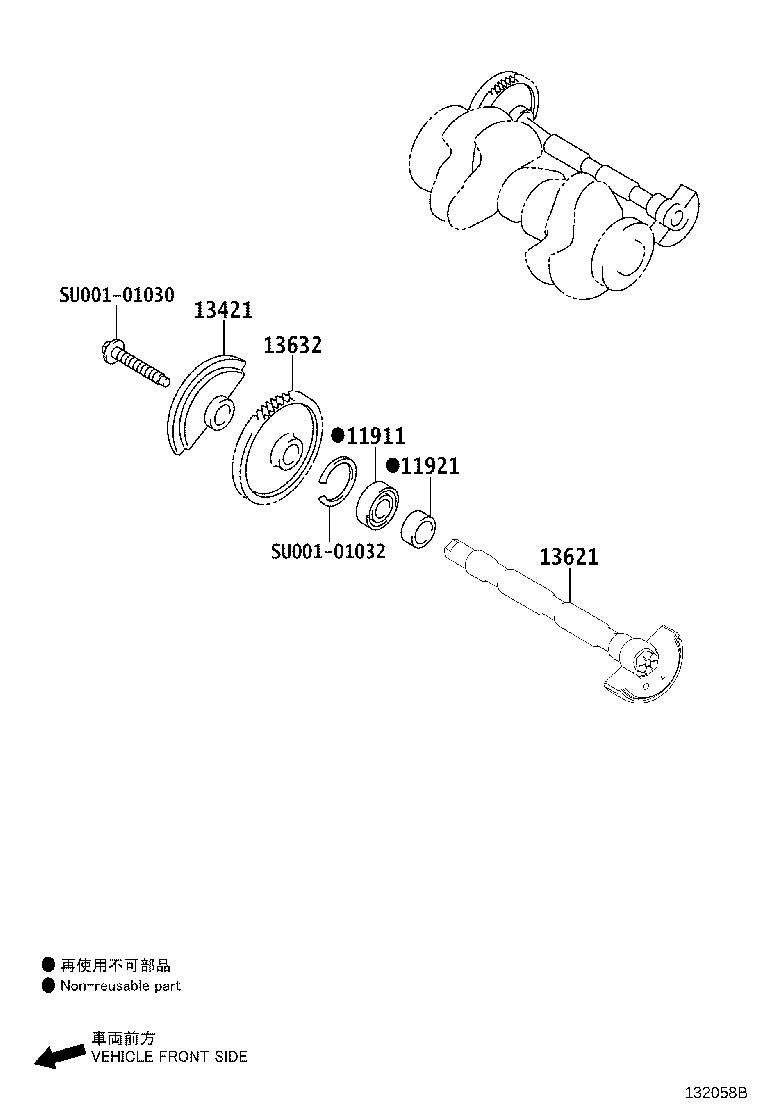

| 13621 | Balanceshaft, NO.1 |
| 13632 | Gear, Balanceshaft Driven, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
